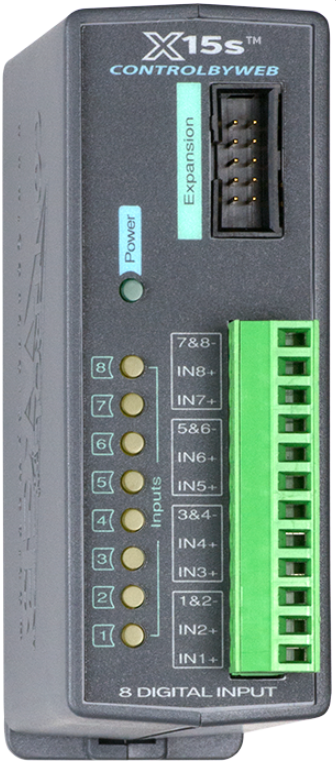

8 Channel Digital Input Expansion Module for X-400 and X-600 Controller from ControlByWeb. 8 X DI 3-26VDC.

Expansion module for X-400-I and X-600M-I
8 x digital inputs - High is from 3 - 26VDC
Opto-Isolated Inputs, Common GND
Counter Input: Max. 200Hz
10 Polet interconnection flat cable for controller
RS485 Communication between the devices
Supply voltage: 9 - 28VDC from controller
Dim: 99 x 78 x 36 mm

X-15S
2,427.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

X-15'erne har 8 optisk isolerede digitale indgange og er et udvidelsesmodul til en X-400 eller X-600M controller. X-15'ernes isolerede indgange er velegnede til industrimiljøer og tillader jordforbindelsessystemet for det overvågede udstyr og lavspændingskredsløbene i X-15'erne at være elektrisk adskilt.

Internt har X-15'erne en co-processor, der giver forbedrede funktioner, herunder: pulstælling, pulsvarighed, akkumuleret pulstid og frekvensmålinger. Alle 8-indgange har separate målinger.

Et eller flere X-15s ekspansionsmoduler kan tilsluttes en X-400 eller X-600M controller med et båndkabel. Båndkablet giver både strøm og kommunikation til udvidelsesmodulerne.

Andre udvidelsesmoduler med forskellige I/O -kombinationer er også tilgængelige.
