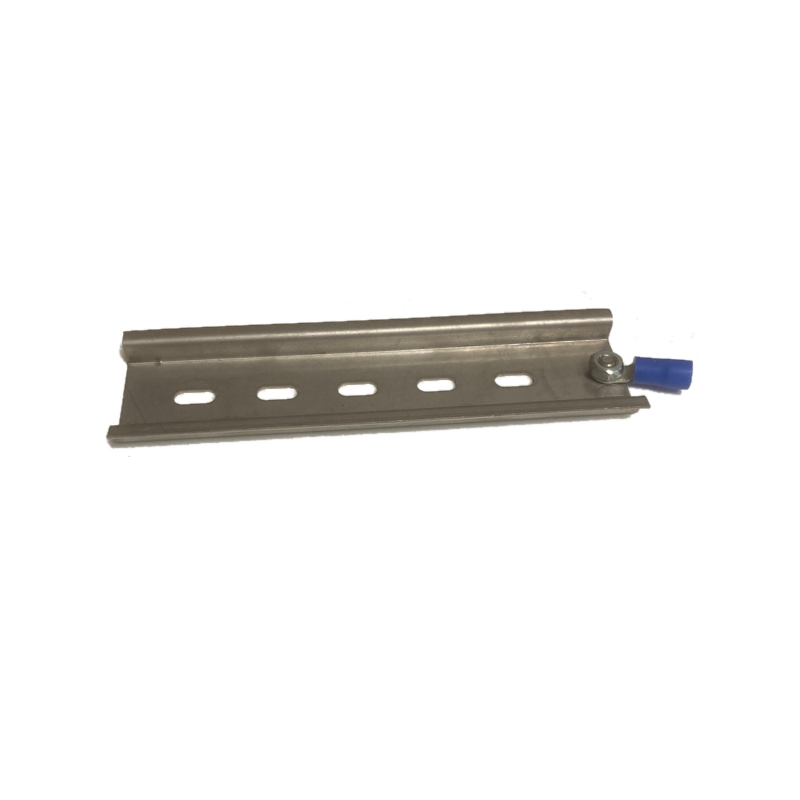

DIN rail with gnd terminal. 124mm long. Stainless steel.

Spare part

Accessories for MFI-Mport. PIR sensor for ceiling mounting

Network module with digital I / O Korenix JETI / O 6550
Channels: 14/8
Digital inputs: 14 pcs., Logic 0: 0 - 4 V, Logic 1: 5 - 30V
Digital outputs: & nbsp; 8 pcs. Open collector, 5 - 40 V 250mA
Isolation: Optical 2500 VRMS for analog and digital inputs and outputs for the power supply
Magnetic 1500 V from the network interface for the power supply
10/100 Mbit m / RJ45 their connector
Operating temperature: - 25 ° C - 70 ° C
Supports Modbus / TCP, OPC server, SNMP. Software included for configuration
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block, Max 1.92 W

Modbus TCP Slave Module LAN or Internet
6 x Relay, End Contact 250VAC / 5A, 30VDC / 5A
Avoid inductive load
6 x Digital input. High is 10 - 50V
supply via PoE or 12 - 48VDC
is with I / O Pair Connection - Input is mirrored to exit.
with important "Sale Setting" which sets relays as desired
watchdog which sets relays in "Safe Setting" in error detection
Dim: 123 x 72 x 35 mm
built-in your bracket

ARM Cortex - A53 CPU , 1.2 GHz
RAM 1Gb SDRAM
16GB of memory
2 x RS232/422/485
8 x DI and 4 x relay outputs
DC input 9-32V
4G module
OS : Linux Raspbian
User need knowledge of linux and programing
Documentation for DI/O and 4G module

Advanced Controller with logging
With slot for internal I/O expansion module, A/D, D/A, D/I, D/O, relay
Program with simple logic functions - WISE (Web Inside Smart Engine)
Logic functions with IF-THEN-ELSE logic
Supports SNMP, SMTP, FTP, MQTT, Modbus / TCP / RTU and DCON
Ethernet 10/100 / 1000Mbit
Setup via the built-in Web server
1 x RS232 port
2 x RS485 port
Supply voltage: 12 - 48VDC

New model expected delivery in April 2025
Double-lane recognition
Up to 30 fps at 1920 × 1080
Standalone database / Log Export
IR distance up to 22 m
Day and Night function
Digital I/O (1 in / 1 out)
SD card slot for data
Built-in heater and fan
Recognize vehicles with speeds up to 100 km/h
Powered via POE / 12VDC
IP67 , Defog
31 languages on Web interface
CE, FCC, UKCA, LVD, RoHS compliant
