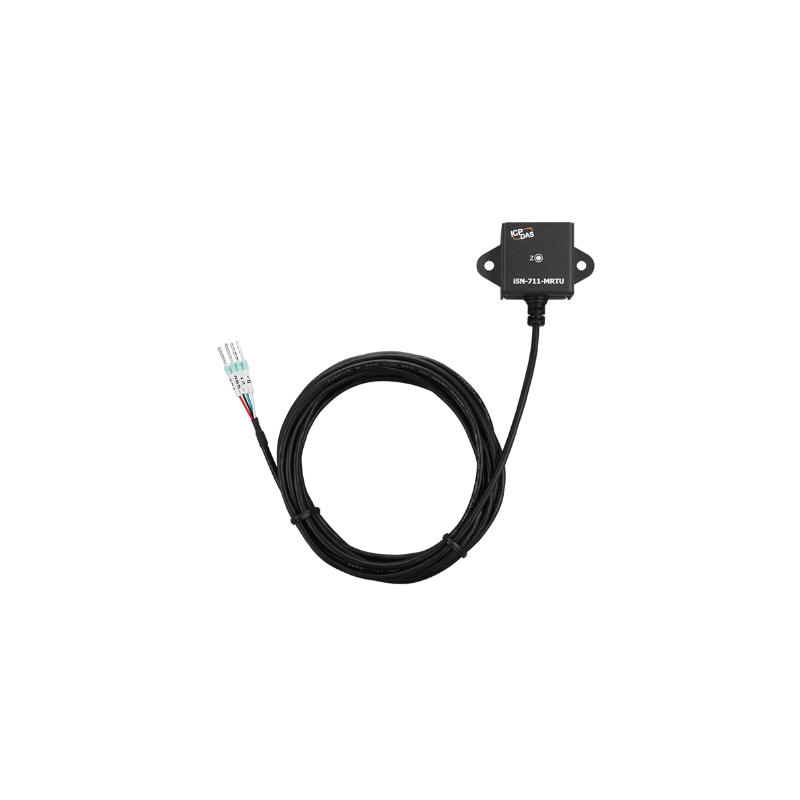

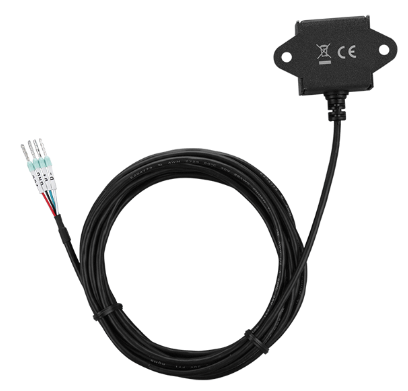

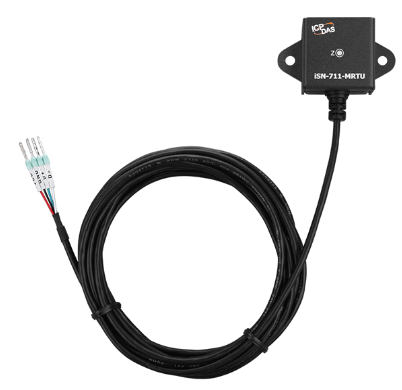

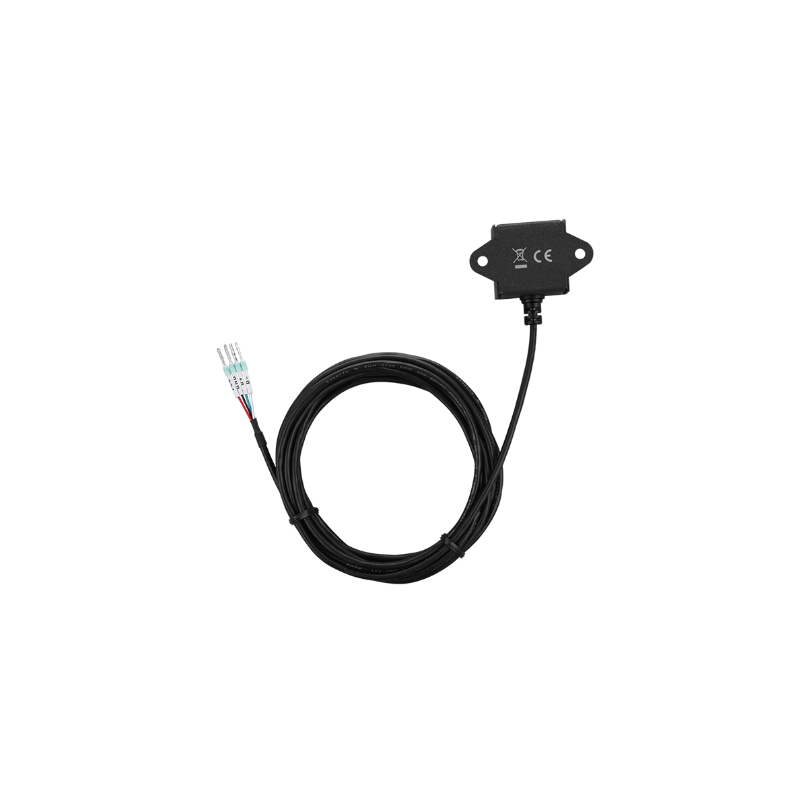

Single axis vibration sensor modul. RS485 RTU. Frequency range: 10-1000Hz, amplitude: mG to 8G.

1-axis vibration measurement
Frequency range: 10 Hz to 1K Hz
Amplitude range: ±8g
Data Format:
Acceleration(mg): RMS, Maximum, P-P
Velocity(mm/s): RMS
Top 10 spectrum values(Amplitude/Frequency)
Crest Factor
Supported Modbus RTU Slave protocol
Size: 51 x 30 x 19mm
Supply voltage: 10 - 30VDC
Temp: -25 - +75°C

M485-MODVM8-I
2,875.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

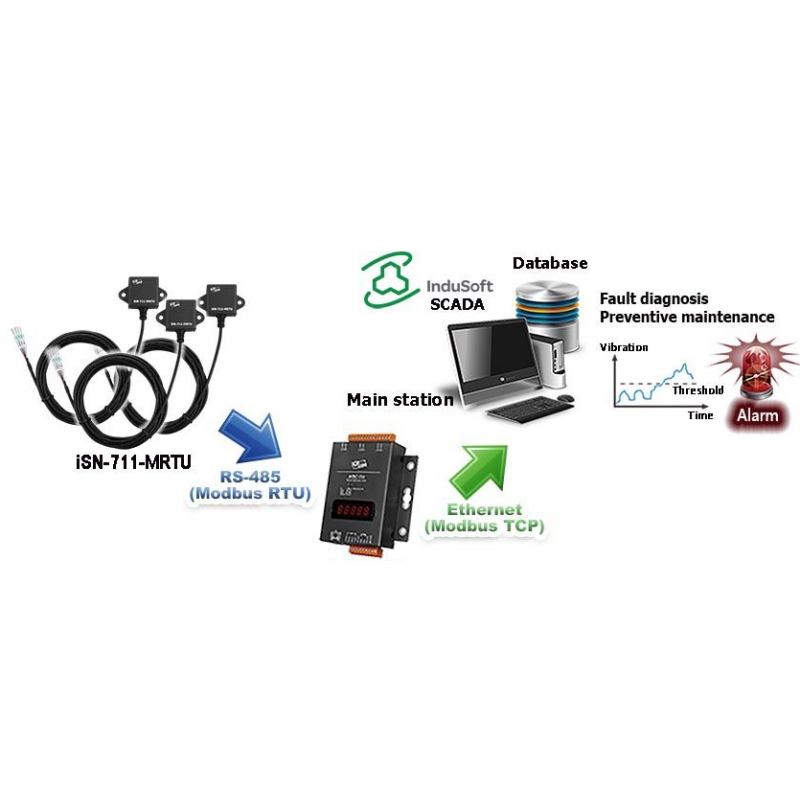

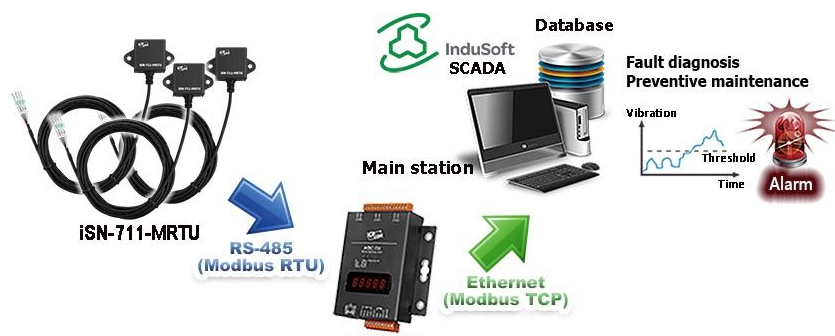

The module is an intelligent vibration detection device. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the sensor’s data by RS-485 interface. The module is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, and pumps, etc., where there is a need to monitor any vibration application.
