Kompakt all-in-one blæserløst bundkort med Intel Atom processor
eller til nyeste cpu typer Core i3/i5/i7 og mulighed for Intel Vpro.
Form Factor: Mini-ITX
Processor Brand: Intel
Processor Type: Intel Core i3/i5/i7/Celeron
Frequency: 2.4 GHz
Memory Size: 8 GB (Max)
Interface Type: LAN, RJ-45, RS-232, RS-422, RS-485, SATA, USB
Operating Supply Voltage: 12 V
Maximum Operating Temperature: + 60 C
Dimensions: 170 mm x 170 mm
Brand: IBASE
Chipsets: QM57

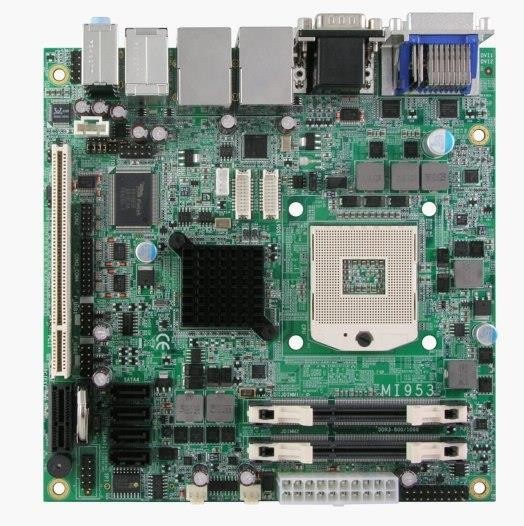

Description/Function: rPGA988 QM57 Mini-ITX motherboard with VGA, dual DVI and dual gigabit LAN, AMT 6.0, RAID
Memory Type: DDR3
Minimum Operating Temperature: 0 C
Packaging: Bulk
Processor Series: Intel Core i3/i5/i7, Intel Celeron
Bundkort med sokkel 775
Mini-ITX form factor addresses slim nettops, all-in-one PCs, thin-client PCs.
Passively cooled VIA C7 1.5GHz processor onboard.
Integrated VIA graphic engine.
Support 1 DIMM of DDR2 533MHz memory.
AC97 5.1 channel audio codec.
10/100Mbps Fast Ethernet.
EOL
Intel® 6/7th Generation Core™ Process (Max. TDP at 95W)
Intel® C236 Chipset
4 x 288-pin DDR4 2400MHz DIMM supports up to 64GB (ECC memory supported by CPU)
1 x VGA, 2 x HDMI 1.4
1 x Full size Mini PCI-e support SATA/PCI-e x1 2.0 signal) with SIM card slot
1 x PCI-e x 16, 1 x PCI-e x 4, 2 x PCI
5 x USB2.0, 8 x USB 3.0
8 x RS232
Support RAID 0, 1, 5, 10
Onboard Infineon SLB9665
support TPM 2.0ATX Power
Intel® 7th / 6th Skylake Gen-S / S-Kaby Lake Series with Q170 / H110
2 X DDR4 2400 MHz SODIMM slots up to 32GB
Triple independent displays: 2 X DVI-D, DP ( HDMI option), LVDS to 4 X GbE LAN with RJ-45
1x PCIe x16 (Gen3), 1x Mini-PCIe (Full size, with SIM Holder) slots
1 X Pattern 2 M Key, 2 x SATA 3.0 for storage
SATA RAID 0/1/5 (RAID 5 Configured with Pattern 2 M Key) to 8 X USB 3.2 Gen 1, 3 X USB 2.0, 4 X COM (4 RS-485), GPIO, Audio, System FAN
SMBus, Chassis Intrusion
Supply Voltage: 12 ~ 24V DC
