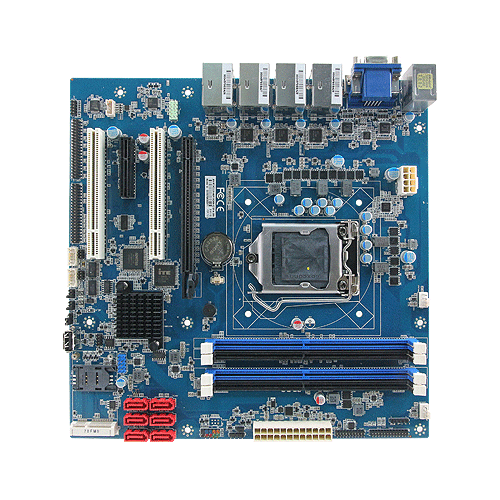

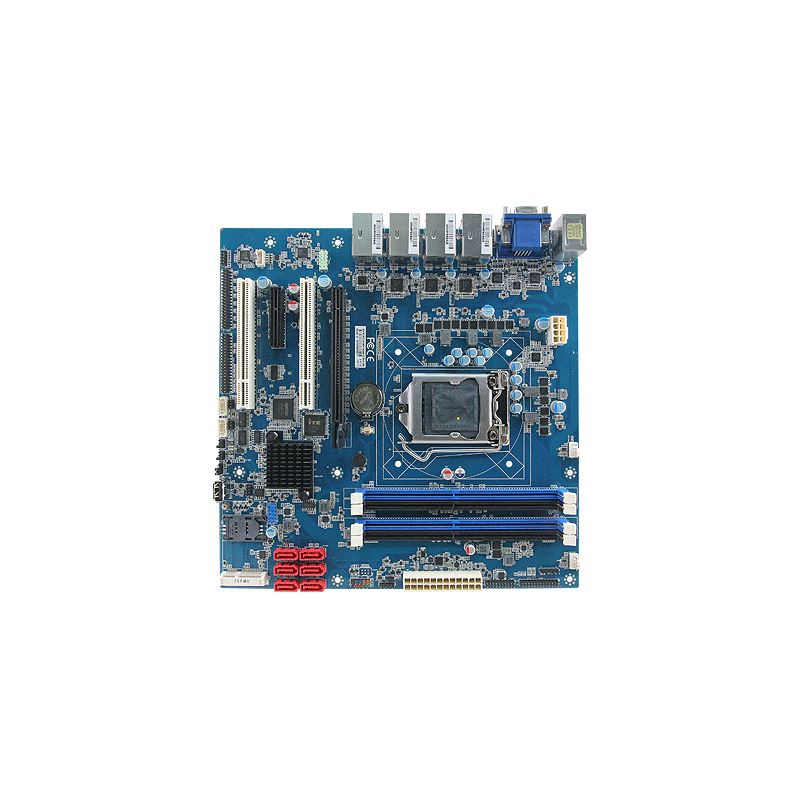

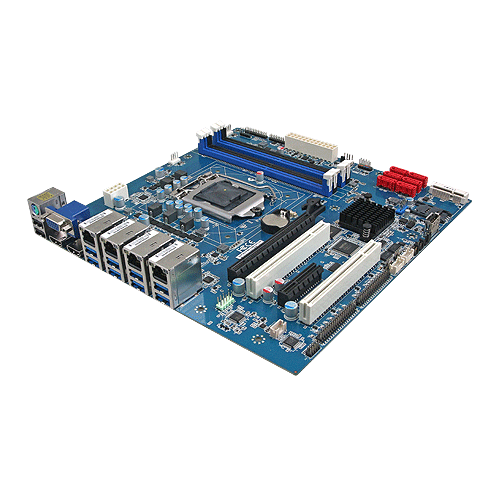

Intel® 6/7th Generation Core™ Process (Max. TDP at 95W)
Intel® C236 Chipset
4 x 288-pin DDR4 2400MHz DIMM supports up to 64GB (ECC memory supported by CPU)
1 x VGA, 2 x HDMI 1.4
1 x Full size Mini PCI-e support SATA/PCI-e x1 2.0 signal) with SIM card slot
1 x PCI-e x 16, 1 x PCI-e x 4, 2 x PCI
5 x USB2.0, 8 x USB 3.0
8 x RS232
Support RAID 0, 1, 5, 10
Onboard Infineon SLB9665
support TPM 2.0ATX Power
Super compact Micro ATX motherboard with PCI ex and PCI extension. Other models and solutions can be offered.
Kompakt all-in-one blæserløst bundkort med Intel Atom processor
eller til nyeste cpu typer Core i3/i5/i7 og mulighed for Intel Vpro.
Kompakt alt-i-ét kort med sokkel til flashkort.
Mini-ITX form factor addresses slim nettops, all-in-one PCs, thin-client PCs.
Passively cooled VIA C7 1.5GHz processor onboard.
Integrated VIA graphic engine.
Support 1 DIMM of DDR2 533MHz memory.
AC97 5.1 channel audio codec.
10/100Mbps Fast Ethernet.
EOL
Intel® 7th / 6th Skylake Gen-S / S-Kaby Lake Series with Q170 / H110
2 X DDR4 2400 MHz SODIMM slots up to 32GB
Triple independent displays: 2 X DVI-D, DP ( HDMI option), LVDS to 4 X GbE LAN with RJ-45
1x PCIe x16 (Gen3), 1x Mini-PCIe (Full size, with SIM Holder) slots
1 X Pattern 2 M Key, 2 x SATA 3.0 for storage
SATA RAID 0/1/5 (RAID 5 Configured with Pattern 2 M Key) to 8 X USB 3.2 Gen 1, 3 X USB 2.0, 4 X COM (4 RS-485), GPIO, Audio, System FAN
SMBus, Chassis Intrusion
Supply Voltage: 12 ~ 24V DC
