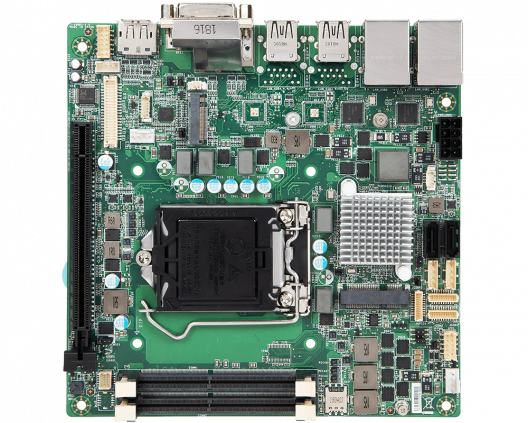

Industriel Mini-ITX Motherboard for Intel® 6th/7th-gen processor

Intel® 7th / 6th Skylake Gen-S / S-Kaby Lake Series with Q170 / H110
2 X DDR4 2400 MHz SODIMM slots up to 32GB
Triple independent displays: 2 X DVI-D, DP ( HDMI option), LVDS to 4 X GbE LAN with RJ-45
1x PCIe x16 (Gen3), 1x Mini-PCIe (Full size, with SIM Holder) slots
1 X Pattern 2 M Key, 2 x SATA 3.0 for storage
SATA RAID 0/1/5 (RAID 5 Configured with Pattern 2 M Key) to 8 X USB 3.2 Gen 1, 3 X USB 2.0, 4 X COM (4 RS-485), GPIO, Audio, System FAN
SMBus, Chassis Intrusion
Supply Voltage: 12 ~ 24V DC

BK1151-MITX-Q170
2,500.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
CPU
Socket (LGA 1151)
Chipset
Intel® Q170 Express
Certifications
FCC, CE , RCM, VCCI, BSMI (Class A)
Dimensioner
170 x 170mm (Mini-ITX)
Driftstemperatur
-10 ~ 60°C
Forsyning
DC-in 12 ~24V
GPIO
16-bits (8 x GPI; 8 x GPO), 5V
Grafik
2 X (DVI-D), 1 X (DP), 1 X LVDS
Hukommelse
2 X DDR4 2400 MHz SODIMM slots up to 32GB
Lyd
Realtek® ALC887 HD Audio Codec
OS SUPPORT
Windows 10 (64-bit), Windows 7 (32/64-bit) (Skylake-S Series only), Windows 8.1 (64-bit) (Skylake-S Series only), Linux Fedora 23 (by request), Linux Ubuntu 16.04 (by request)
PCI
1 X PCIe x 16 (Max 75W), 1 X Full-size Mini-PCIe
Porte
4 x COM ports (Internal), COM1: RS- 232/422/485,RI/5V/12V COM2~4: RS- 232/422/485,0V/5V/12V
SATA
2 x SATA 3.0
USB
3 x USB 2.0 (internal), 8 x USB 3.2 Gen 1 (rear)

4 other products in the same category:

Mini ITX BK, VIA C7, 1GHz,...

Mini ITX BK, VIA C7, 1GHz, 1xPCI EOL

Mini-ITX form factor addresses slim nettops, all-in-one PCs, thin-client PCs.
Passively cooled VIA C7 1.5GHz processor onboard.
Integrated VIA graphic engine.
Support 1 DIMM of DDR2 533MHz memory.
AC97 5.1 channel audio codec.
10/100Mbps Fast Ethernet.

EOL

Price 4,900.00 DKK
Product code: ITX-C7
Physically in stock
Quick view

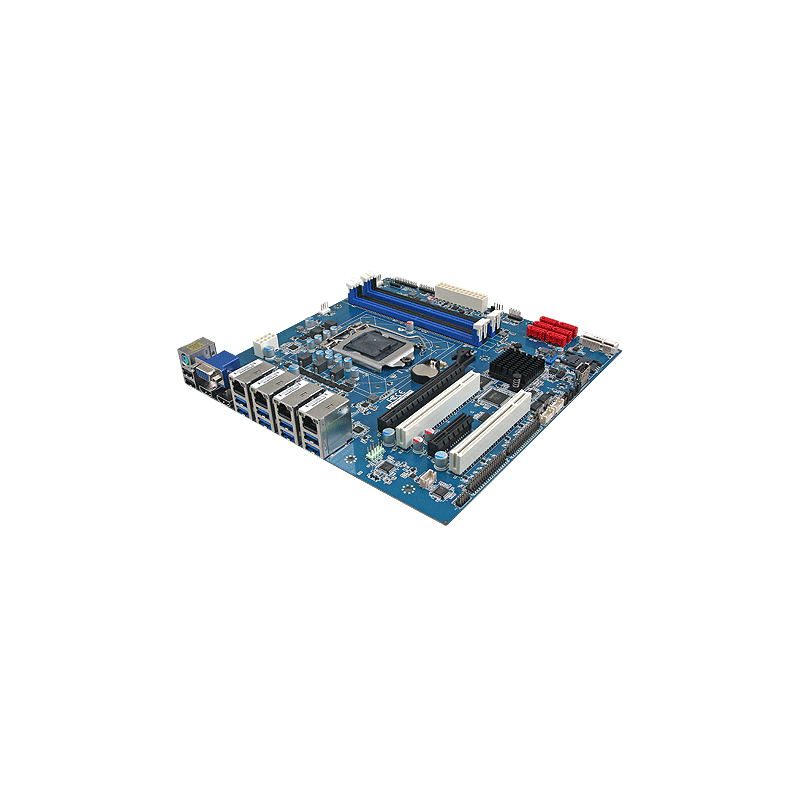

Micro ATX motherboard Intel...
