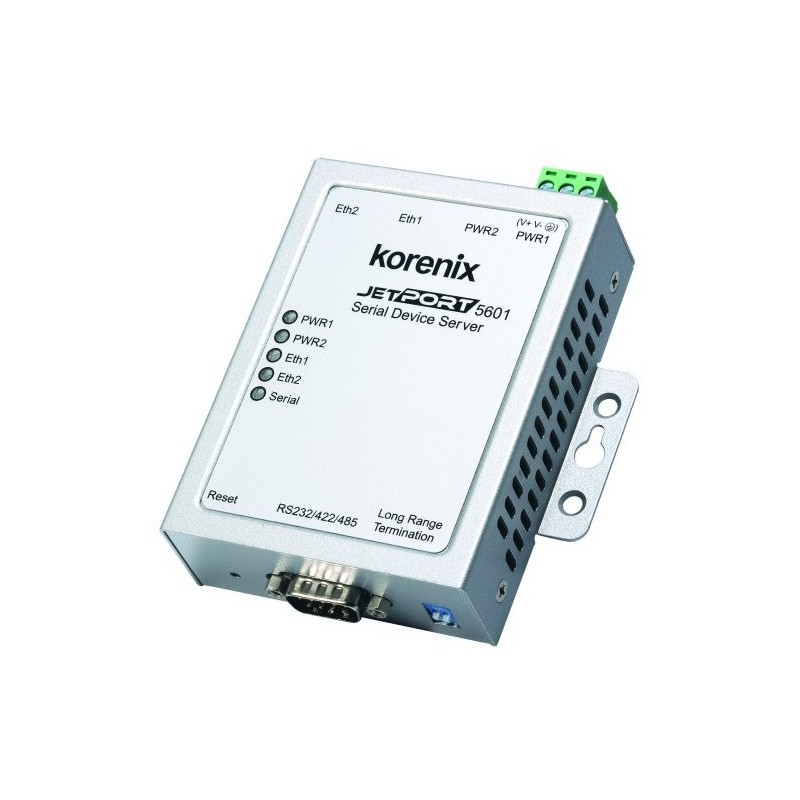

1 port serial port server RS232 / 422/485. Serial Device Server Korenix JETPORT 5601

External COM port over network connection

serial port via db9 male

2 x RJ45 network connections

Reference: ETH1SER-K

2,272.00 DKK

Tax excluded

Quantity

On the way in

Download PDF
Downloads

Ask a question

Description
Product Details

1 Port serial port server with redundant networking and voltage supply. The redundant network port ensures the network connection by errors, with a shift time from port to port of less than 200 ms. With built-in protocols for secure network traffic (HTTPS and SSH), data traffic over the Internet can be encrypted. Eth1ser-K is a Serial Device Server for Ethernet Network, for example. local area and / or internet. The double network port with Auto Fallback continues to ensure operation if one of the network connections fails. The serial port is set up as RS232, RS422 or RS485, and working with speeds up to 460 kbit / s.

Signals:

RS232: TXD, RXD, RTS, CTS, DR, DSR, DCD, GND

RS422: TXD +, TXD, RXD +, RXD, GND

RS485 2-head: Data +, data, GND

RS485 4 Leader: TXD +, TXD, RXD +, RXD, GND

Administration: Indstilles via netværk over krypteret http (https) vha. enten SSH konsol eller Jetport Commander Windowsprogram
Andet: Seriel porten kan sende data til 5 modtagere simultant. Leveres inkl. 100 ~ 240 VAC adapter, program CD og manualer
Dimensioner: 29,6 x 88 x 114,8 (H x B x D)
Driftstemperatur: -20 ~ 70°C
Isolation: 1,5 kV galvanisk isolation
Kompatibilitet: COM drivere til WIN10/8/7 (32/64 bit), 2000/ XP/2003 og Vista
Montering: DIN skinne monteringsdele og vægbeslag
Netværk: 2 x 10/100 Mbit Ethernet redundant netværksport, auto fallback less than 200 ms
Porte: En port, der kan bruges som RS232, RS422 eller RS485. Hastigheder fra 110 til 460 Kbit/s, Databit:5/6/7/8, Stopbit:1/1,5/2. Paritet: Lige/Ulige/Ingen
Protokol: TCP, UDP, Telnet, DHCP, ICMP, https, SSH, BootP, ARP, DNS, SNMP
Stik: Seriel port: DB9 hanstik. Ethernet: 2 x RJ45 hunstik
Strømforsyning: Redundant spændingsforsyning: 9 ~ 30 VDC via 5.5 mm jack (hun) strømstik. 12 ~ 48 VDC via skrueterminaler
