REMAINDER SALE

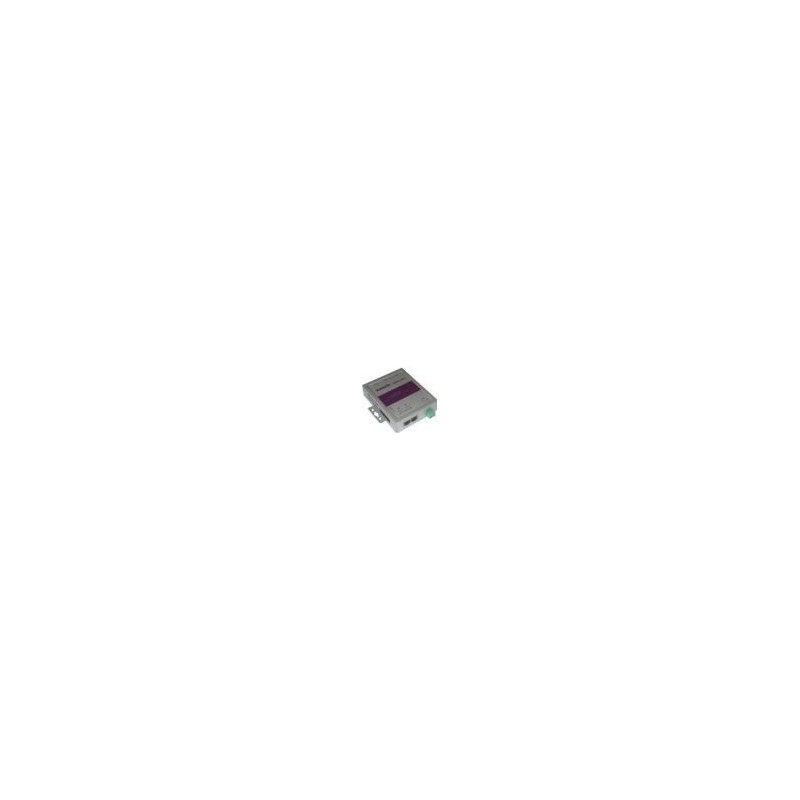

The EPC-SER2L2 is a compact PC with Embedded Linux that offers many possibilities of use.
Examples of use could be:
- FTP server with 2 network connections, which can utilize local network speeds for uploading files.
- Firewall, proxy server and NAT using the software iptables.
- Built-in GoAhead web server. Files for the web server are placed on a micro SD card and mounted.
- Serial port server with ser2net.
The installed Linux contains the following software packages: busybox, diocfg, lrzsz, minicom, microcom, ncurses, ser2net, setserial, bridge-utils, ethtool, goahead webserver, iptables, net-snmp, ntp, openssh, openssl, pppd, ftpd, rp- pppoe, smtpclient and wireless-tools. The EPC-SER2L2 is configured with commands sent via telnet.
CPU:
Atmel ARM AT91RM9200 180 MHz
RAM:
64 MB SDRAM
Flash frame:
16MB ROM
Network:
2 x 10/100 Mbit via RJ45
Serial ports:
2 x RS232/422/485 via RJ45 (DB9 cables included)
USB and SD:
2 x USB 2.0, SD: 1 x micro SD slot
Digital I/O:
16 x DIO plug type
Operating system:
Embedded Linux - kernel 2.6.21
Software:
Among other things. busybox, iptables, GoAhead web server, openssh and openssl
Supply:
12~48 V DC , consumption approx. 7.2 W. Power supply not included.
Operating temperature:
-40~80°C
Weights and Measures:
109 x 88 x 27 mm (H x W x D), 0.5 kg

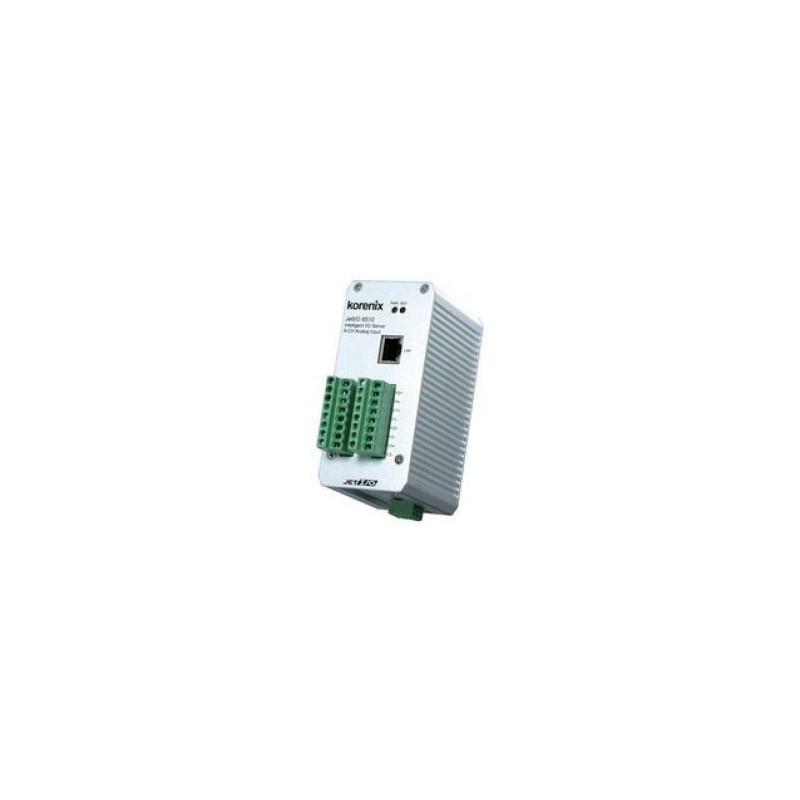

Korenix JETI / O 6511
Network module with 8 x analog inputs
Channels: 8
Resolution: 16 bit
Analog inputs: ± 150 mV, ± 500 mV, ± 1 V, ± 5 V, ± 10 V and ± 20 mA
Optical 2500 VRMS for analog and digital inputs and outputs for the power supply
Magnetic 1500 V from the network interface to the power supply
10/100 Mbit m / RJ45 female connector
Operating temperature: - 25 ° C - 70 ° C
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block. Max 3.2 W
REMAINDER SALE

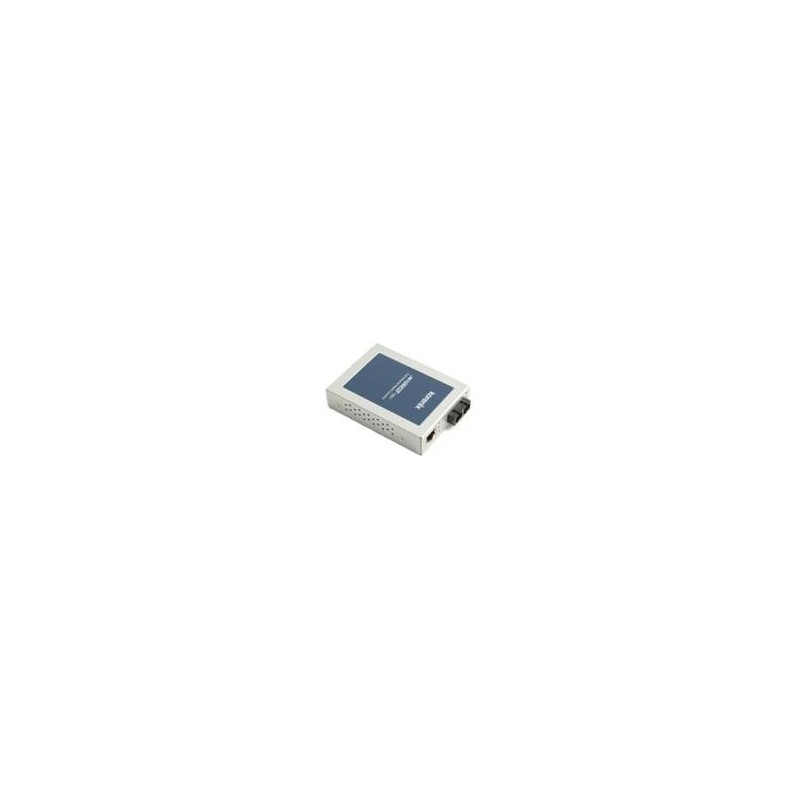

1 port compact 10/100 TX to 100FX media converter
LLF color detection technique
Compliance with IEEE 802.3 / IEEE 802.3u standards /
IEEE 802.3x standards
Supports 19" 3U 16 slots chassis mounting, Rack-1001/1002
JetCon 1501T 10 / 100Base-TX to 100Base-FX, ST connector,
Multi-mode 2KM
