1 port serial port server via Single Mode fiber, RS232 / RS422 / RS485, up to 30km. Korenix JETPORT 5601F-S
External COM port via Ethernet and Internet - for fiber cable network switch
Device server with single mode fiber and RS232/422/485 port
3,484.10 NOK
Excl. VAT
Quantity
Physically in stock
Product number ETH1SER-UNI30F

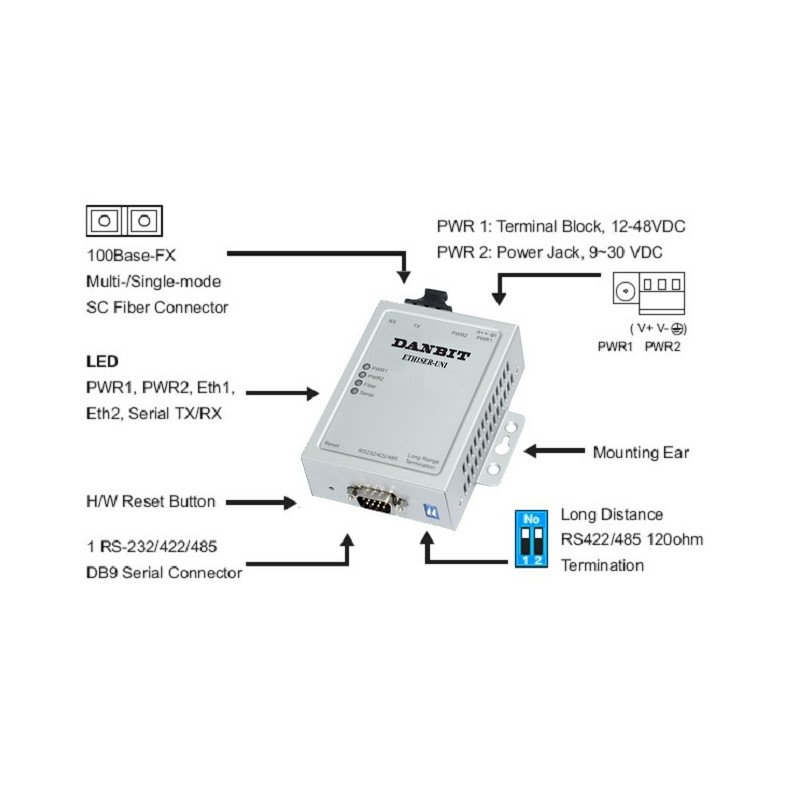

Specifications
Driftstemperatur | -10 til 70° C |
---|---|
Kabinet | Metalkabinet. 30 x 96 x 99 mm. (H x B x D) – m/holder til DIN skinne |
Netværk | 100Base-FX via duplex SC lyslederkabel. Til singlemode fiber – maks. 30 km |
Porte | 1 x RS232/422/485 port med hastigheder fra 110 bps til 460 Kbps på DB9-stik. Databit: 5/6/7/8, Stopbit: 1/2 Paritet: Lige/Ulige/Ingen. Flowkontrol: RTS/CTS, DTR/DSR, Xon/Xoff |
Protokol | TCP, UDP, HTTP, HTTPS, Telnet, DHCP, ICMP |
Signaler | RS232: TxD, RxD, RTS, CTS, DTR, DSR, RI, GND. RS422 og 4-tråds RX485: Rx+, Rx-, Tx+, Tx-, GND. RS485: Data+, Data-, Rx+, GND |
Skærm | Lysdioder viser Tx/Rx, netværks- og Power-tilstande |
Software | Windows 2000,XP, 2003 ,Vista, Windows 7 32 bit |
Strømforsyning | 12 - 48 VDC på skrueterminaler eller 9 - 30 VDC på DC jack (230 V adapter medfølger) |
ETH1SER-UNI30F for network connections via optical fiber of up to 30 km. For local network and/or internet. Can be set up with a built-in WEB server, telnet and with the Windows setup program. Ideal for installations where parts of the network use fiber cable. See our other equipment with fiber interface (network cards, switches, media converters etc.) in the network chapter (chapter 20). Typical applications are in industrial environments where electrical disturbances are critical. With large temperature range. Supplied in a metal cabinet with mounting brackets. Bracket for DIN rail included With large temperature range
