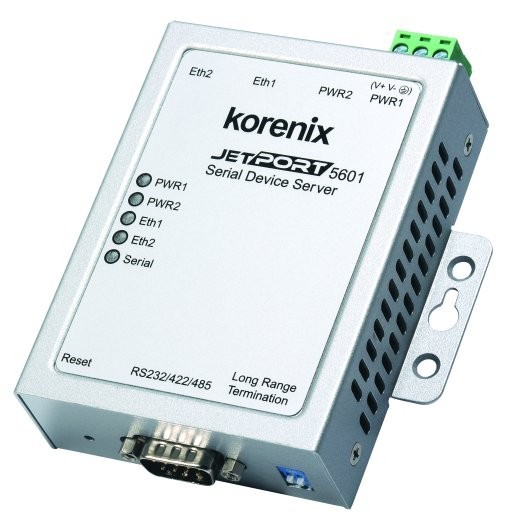

1 port serial port server RS232 / 422/485. Serial Device Server Korenix JETPORT 5601

External COM port over network connection

serial port via db9 male

2 x RJ45 network connections

ETH1SER-K
2,272.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

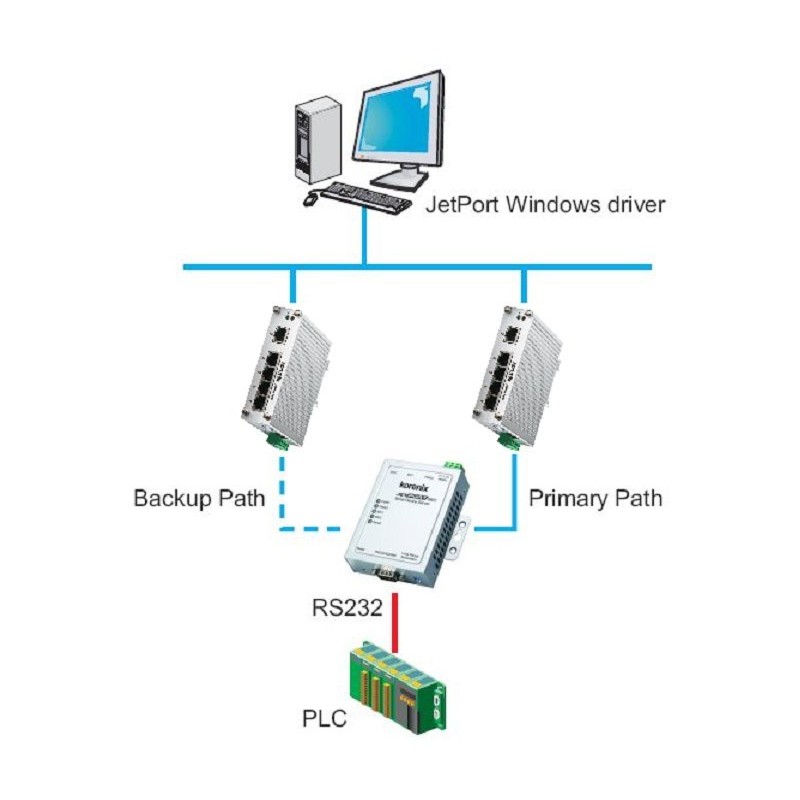

1 Port serial port server with redundant networking and voltage supply. The redundant network port ensures the network connection by errors, with a shift time from port to port of less than 200 ms. With built-in protocols for secure network traffic (HTTPS and SSH), data traffic over the Internet can be encrypted. Eth1ser-K is a Serial Device Server for Ethernet Network, for example. local area and / or internet. The double network port with Auto Fallback continues to ensure operation if one of the network connections fails. The serial port is set up as RS232, RS422 or RS485, and working with speeds up to 460 kbit / s.

Signals:

RS232: TXD, RXD, RTS, CTS, DR, DSR, DCD, GND

RS422: TXD +, TXD, RXD +, RXD, GND

RS485 2-head: Data +, data, GND

RS485 4 Leader: TXD +, TXD, RXD +, RXD, GND

Administration
Indstilles via netværk over krypteret http (https) vha. enten SSH konsol eller Jetport Commander Windowsprogram
Andet
Seriel porten kan sende data til 5 modtagere simultant. Leveres inkl. 100 ~ 240 VAC adapter, program CD og manualer
Dimensioner
29,6 x 88 x 114,8 (H x B x D)
Driftstemperatur
-20 ~ 70°C
Isolation
1,5 kV galvanisk isolation
Kompatibilitet
COM drivere til WIN10/8/7 (32/64 bit), 2000/ XP/2003 og Vista
Montering
DIN skinne monteringsdele og vægbeslag
Netværk
2 x 10/100 Mbit Ethernet redundant netværksport, auto fallback less than 200 ms
Porte
En port, der kan bruges som RS232, RS422 eller RS485. Hastigheder fra 110 til 460 Kbit/s, Databit:5/6/7/8, Stopbit:1/1,5/2. Paritet: Lige/Ulige/Ingen
Protokol
TCP, UDP, Telnet, DHCP, ICMP, https, SSH, BootP, ARP, DNS, SNMP
Stik
Seriel port: DB9 hanstik. Ethernet: 2 x RJ45 hunstik
Strømforsyning
Redundant spændingsforsyning: 9 ~ 30 VDC via 5.5 mm jack (hun) strømstik. 12 ~ 48 VDC via skrueterminaler
