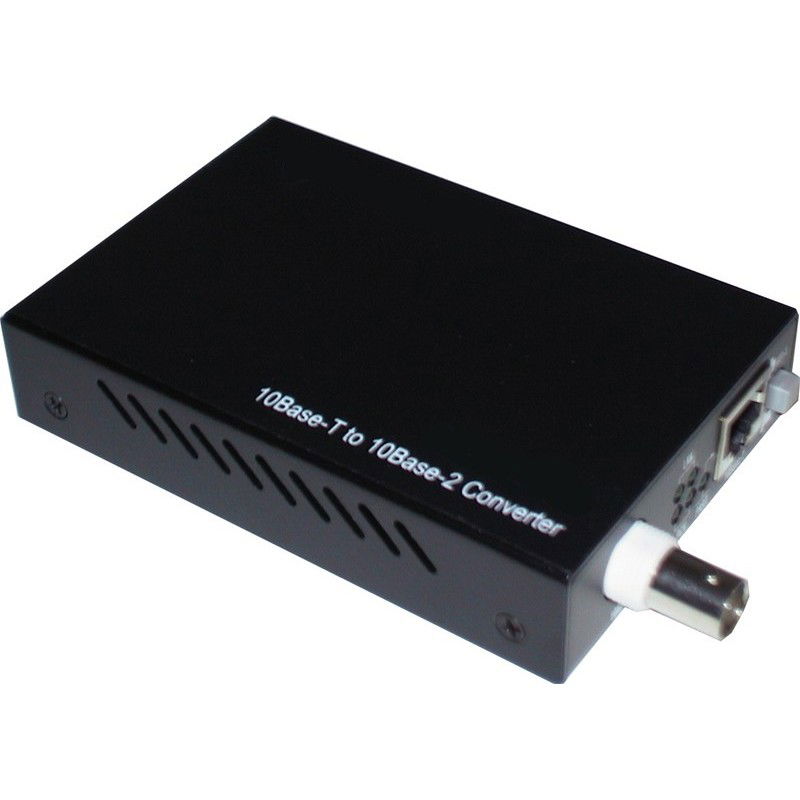

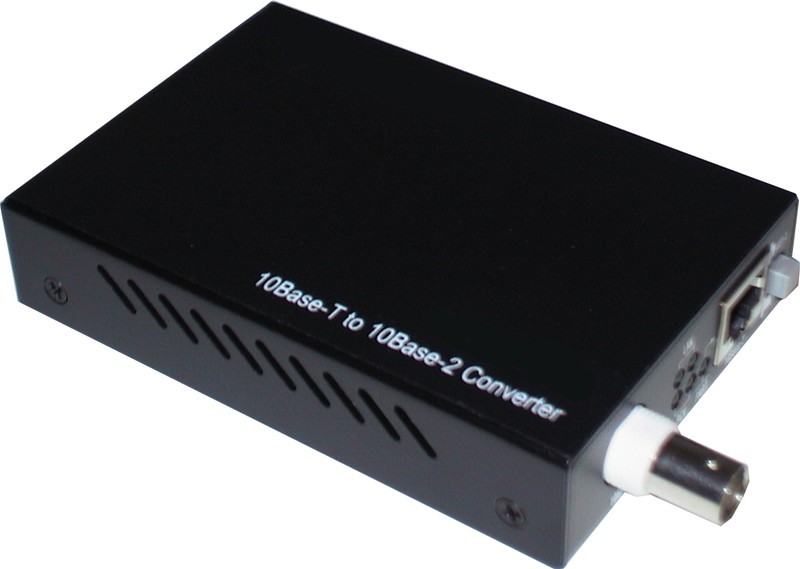

Ethernet (RJ45) to BNC converter, 10Base

Converter 10Base-T to 10Base-2
1 x RJ45 from Hub / Station select swich
1 x BNC to 10 Base-2
100m max. per UTP cable
185m max. Coax
12V DC, 1 Amp
0 to 55 ° C
10 to 90% (Non-Condensing)
IEEE 802.3 10Base-T / 10Base-2
Network: Star - CSMA / CD

ETH-RJ45BNC
1,538.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Ethernet (RJ45) to BNC converter.
10Base-T to 10Base2 converter.
To RG58 cable.

Afstand
RJ45 100 meter og BNC 185 meter
Hastighed
10 Mbit
Konvertering
Konverterer Twisted Pair (RJ45 stik) til koaksial kabel (10Base-2)
Stik
BNC hun og RJ45 hun
Strømforsyning
Strømforsynes af medfølgende netadapter 12 Volt 500mA
