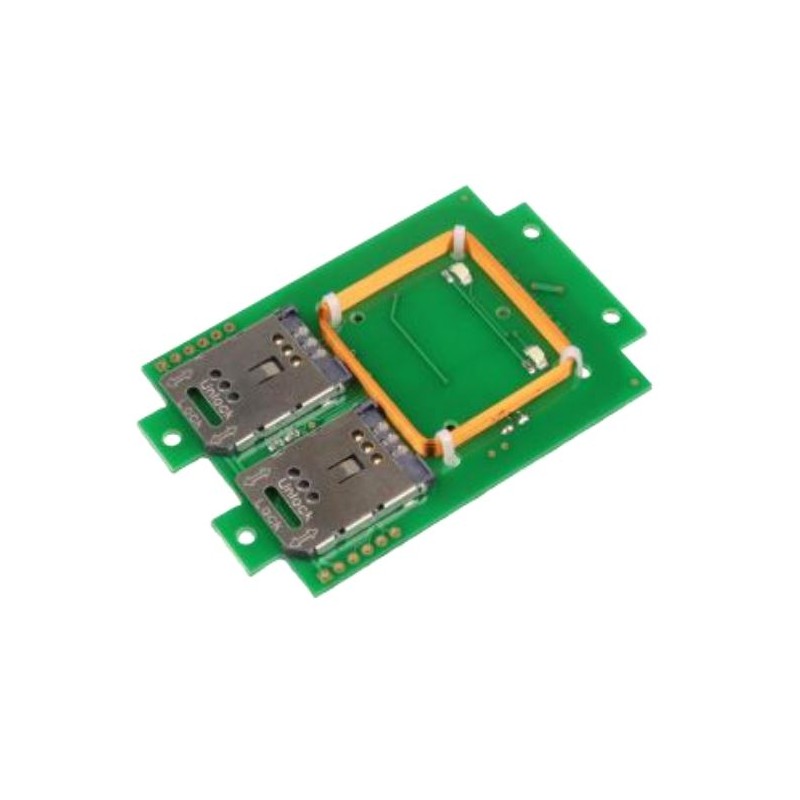

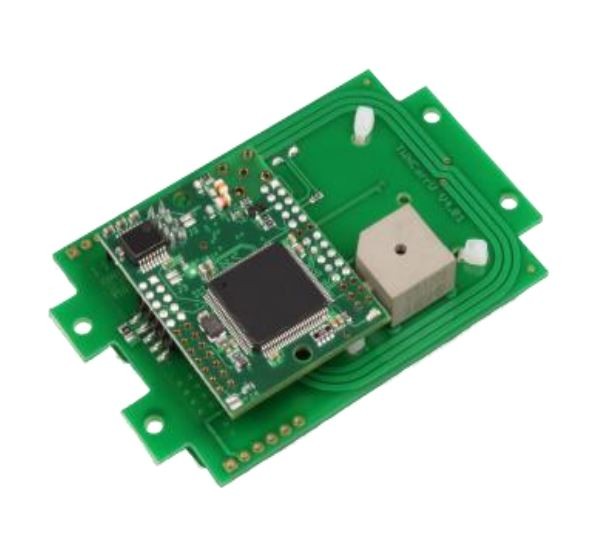

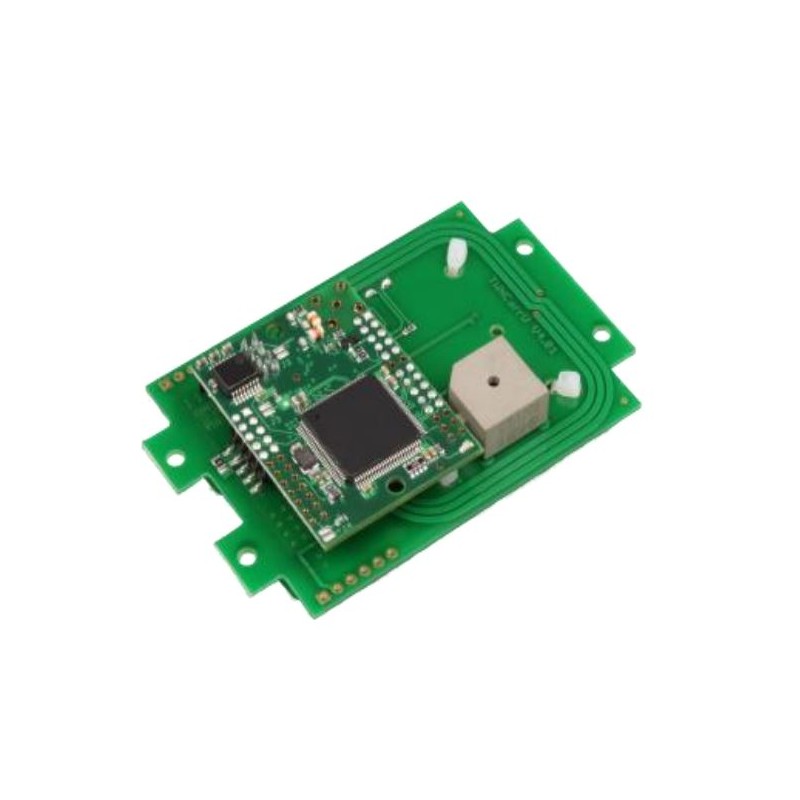

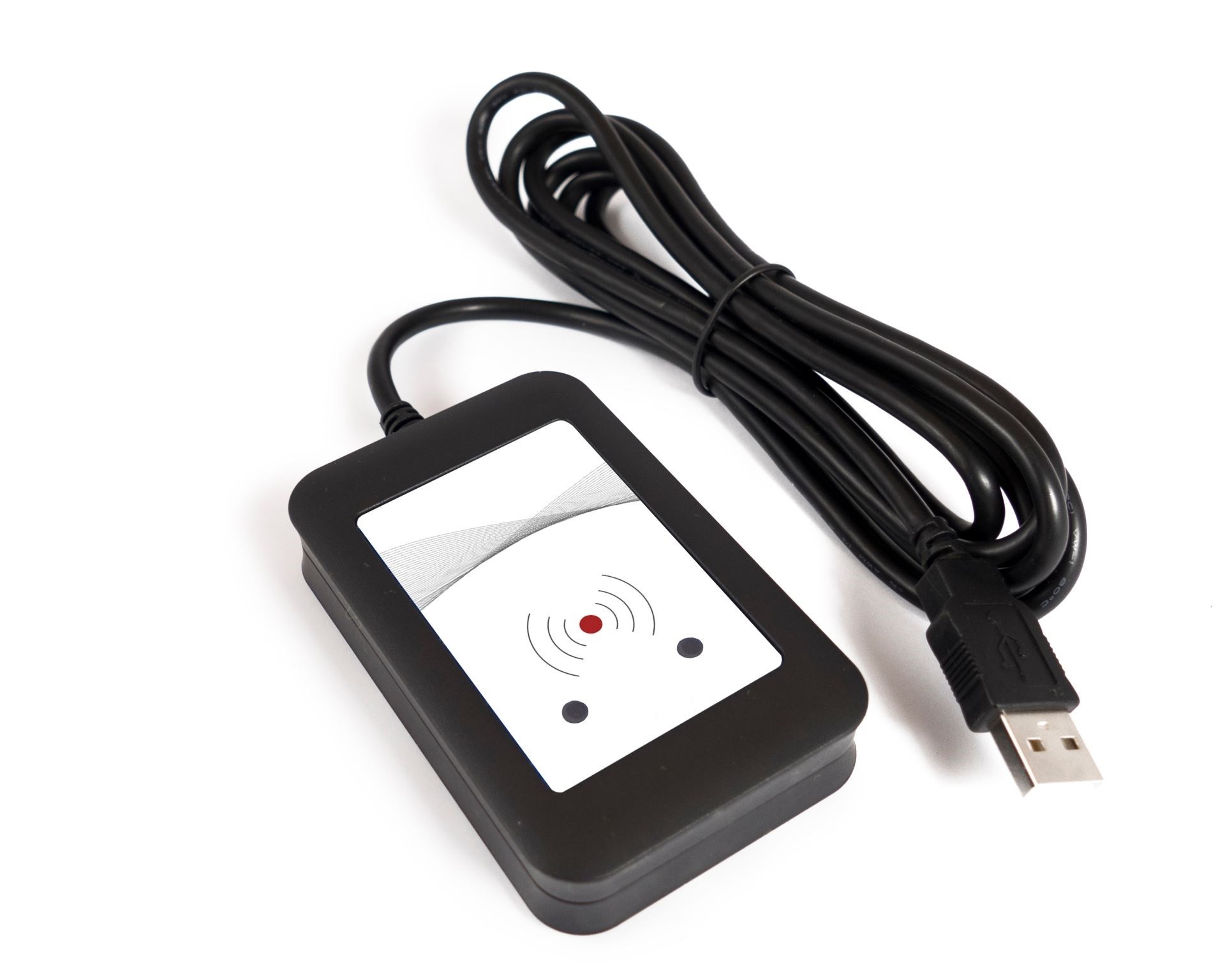

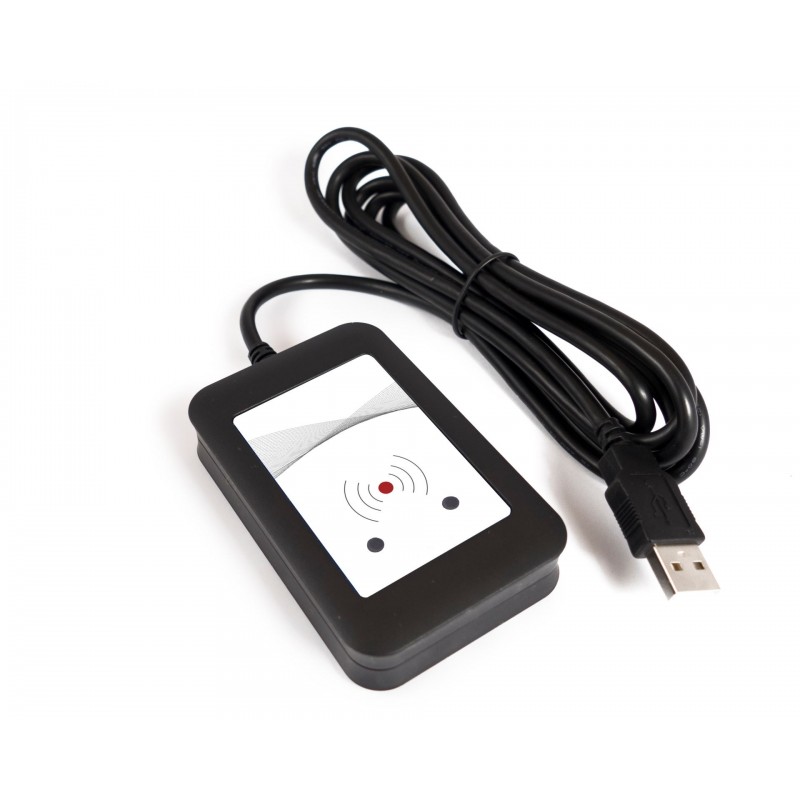

TWN4 programmable RFID reader - LF / HF / NFC
TWN4 programmable RFID reader - LF / HF / NFC
TWN4 programmable RFID reader - LF / HF / NFC
Previous
Next
TWN4 programmable RFID reader - LF / HF / NFC
TWN4 programmable RFID reader - LF / HF / NFC
TWN4 programmable RFID reader - LF / HF / NFC

RFID reader/writer 125/134.2 kHz, 13.56MHz to USB

Frequancy 125 kHz/134.2 kHz (LF) / 13.56 MHz (HF)
Read/Write distance up to 100 mm
USB
Black
SDK for writing apps which are executed directly on the reader
Firmware update
Onboard 18 kB flash storage

3,416.00 kr
Excl. VAT
Quantity
This product is no longer available for sale.
ADD TO CART
Product number RFID-MULTI-USB
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -25 °C up to +70 °C
Frekvens 125 kHz / 134,2 kHz (LF) / 13,56 MHz (HF)
Luftfugtighed 5% to 95% non-condensing
Læseafstand Up to 100 mm
Compositions ABS UL94-V0
Modes USB keyboard emulation – USB virtual COM port – CCID / PC/SC 2.01
MTBF 500,000 hours
Mål og vægt 88 mm x 56 mm x 18 mm
OS SUPPORT Windows XP, Vista, Embedded CE8, 7 (32-/64-bit), 8, 8.1, 10, Linux, Android, iOS, MAC OS X
Weight Approx. 20 g (without housing)

DANBIT RFID readers/writers allows users to read/write almost any 125 kHz, 134.2 kHz and 13.56 MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID, LEGIC, etc. and ISO standards like ISO14443A/B (T=CL), ISO15693, ISO18092 / ECMA-340 (NFC).

SUPPORTED TRANSPONDERS (STANDARD)
ISO14443A: LEGIC Advant1, MIFARE Classic EV12), MIFARE Classic, MIFARE Mini, MIFARE DESFire EV1, MIFARE DESFire EV22), MIFARE Plus S, X, MIFARE Pro X3), MIFARE Smart MX3), MIFARE Ultralight, MIFARE Ultralight C, MIFARE Ultralight EV1, NTAG2xx, PayPass3), SLE44R35, SLE66Rxx (my-d move)3), Topaz ISO14443B: Calypso3), Calypso Innovatron protocol3), CEPAS3), HID iCLASS1), Moneo3), Pico Pass4), SRI4K, SRIX4K, SRI512, SRT512 ISO18092 ECMA-340: NFC Forum Tag 1-5, NFC Peer-to-Peer, Sony FeliCa5), NFC Active and passive communication mode ISO15693: EM4x333), EM4x353), HID iCLASS1), HID iCLASS SE/SR1), ICODE SLI, LEGIC Advant1), M24LR16/64, SRF55Vxx (my-d vicinity)3), Tag-it, PicoPass4) 125 kHz, 134.2 kHz: AWID, Cardax, CASI-RUSCO, Deister6), EM4100, 4102, 42007), EM4050, 4150, 4450, 4550, EM43058), FDX-B, EM4105, HITAG 19), HITAG 29), HITAG S9), ICT8), IDTECK, Isonas8), Keri, Miro, Nedap6), PAC, Pyramid, Q5, T5557, T5567, T5577, TIRIS/HDX, TITAN (EM4050), UNIQUE, ZODIAC, Cotag, G-Prox6)
