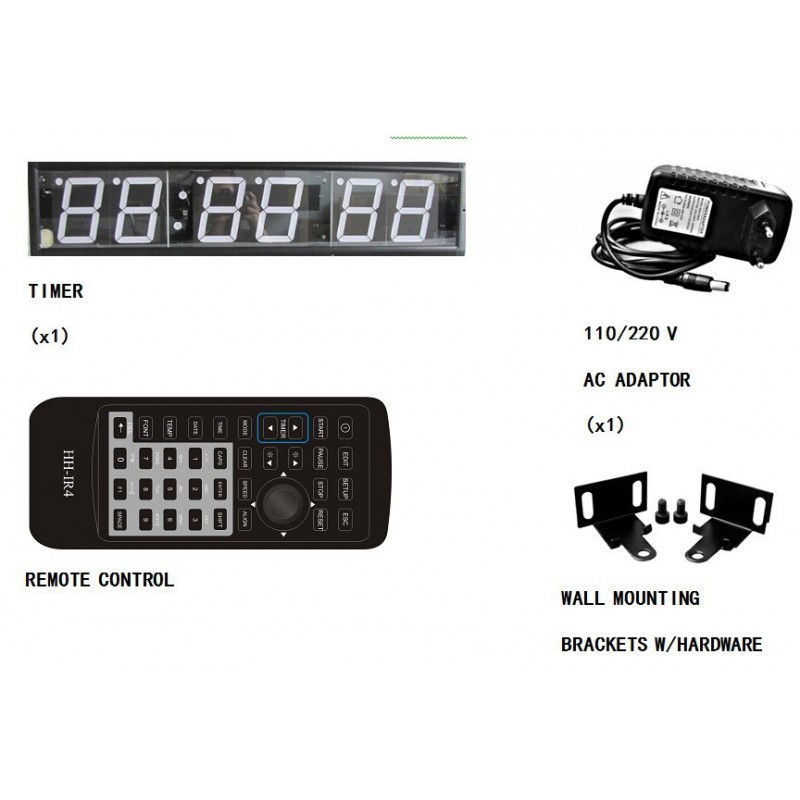

LED timer display med 6 cifre hvor lysstyrken kan justeres via fjernbetjening
Main Functions and Features:
- Clock: HH:MM format - 12/24H.
- Stopwatch: MM:SS:SS (1/10s)/(1/100 s) format – from 00:00:00 up to 99:59:99
- Interval Timer for training + resting workout programs
. Count-Up and Count-Down Training and Resting times
. MM:SS format – from 00:00 up to 99:59
Features:
- Count up (00:00 to 99:59)/ Display Format - [UP MM:SS]/Countdown (99:59 to 00:00)/ Display Format - [dn MM:SS]
- Stopwatch - (00:00:00 to 99:59:00) Display Format - [MM:SS:(1/10s)(1/100s)]
- Save up to 10 (0-9) Preset workout times in Standard Mode i.e. Preset 1 - Countdown 20:00; Preset 2 - Count Up to 15:00, etc (10 Second Countdown for each Timer)
- When in Interval Mode you have 4 preset interval programs in slots #1-4 and you can program and save your own interval programs as well in slots #5-0; No other clock does that!
- Tabata/Intervals - Programmable Work to Rest Intervals. Display Format [F1 MM:SS & C1 MM:SS] where F = Work Period, C = Rest Period. When programming, clock will show F# (F and a number pertaining to the work interval or round, i.e. F1 = 1st round of work, F2 = 2nd round of work, etc.) during the training period, then once work interval is completed C# (C and number pertaining to the rest interval or round) will show for the rest period/interval. For instance: If you program 5 rounds of work and rest, then F1-F5 will show during your work interval and C1-C5 will show during your rest periods.
24 "TFT metal monitor with capacitive touch, IP66, IP20
LED backlight
Capacitive touch (PCAP), 4 points
1280 x 1024
Contrast: 700: 1, & nbsp; 1000 nits
Display angle: 160 ° / 140 °
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS-232 (DB9 male)
1 x Optional RS232 / 422/485
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Desktop, Panel mounting
6,100 g, 429 x 387 x 75 mm
-40 to 70 ° C
CISPR 32, FCC Part 15B Class A
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND < Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx -, Rx +, Rx, GND
24 "LCD metal monitor, IP66 front, IP20 rear
1920 x 1080
300 nits, 5000: 1, 16: 9
LED backlight
Response time: 25ms
viewing angle: 178 ° / 178 °
1 x RS-232 (DB9 male)
1 x DVI-D (29-pin DVI-D female)
1 x VGA (15-pin D-sub femlae) < br> 1 x RS232 / 422/485 (software selectable terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F) < br> 595 x 393 x 75 mm & nbsp;
Weight: 9.570 g
Desktop, Panel mounting, VESA mounting
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND
19 "industrial panel monitor
IP54 near the front, vandal proof glass
Touch: pcap
1280 x 1024
300 Nits
500: 1 to 5: 4 format, the OSD buttons on the front or rear
VESA mounting holes
I / O: VGA (15pin D-sub)
Output:
12VDC input: 100-240V
Dimensions: 460 x 392 x 64,5mm < br> Display Dimensions: 376 320 x 301.056mm
Weight: 6.8Kg
LCD Screen / TFT Active Matrix
16: 9
1 x VGA
1 x HDMI
1 x Display Port
1 x Audio In / Out
Full HD (1080p ) 1920 x 1080
Pixel Pitch 0.277 mm
250 cd / m²
30000000: 1 (dynamic)
Color support 16.7 million colors
Response time 3 ms (gray to gray)
Vertical refresh rate 56 - 76 Hz
Horizontal refresh rate 30 - 83 kHz
Horizontal viewing angle 170
Vertical viewing angle 160
Backlight technology: LED backlight
Flicker Free technology.
