Steeel VESA mount

VESA: 75 x 75 mm, 100 x 100 mm (on special orders 200 x 200mm)

Material SUS316 Stainless Steel

Tilt: 15 degrees Up and Down, Left and Right

Weight Capacity 50 Kgs

Suitable for Outdoor Mounting

Product Dimensions 140 (W) x 143.4 (H) x 101.5 (D) mm

Product Weight 1.5 Kgs

5-Port 2.5G Multi-Gigabit Desktop Switch

5x 2.5Gbps Ethernet ports 25 Gbps switching capacity

Layer 2 unmanaged switch Desktop form factor with metal housing

IGMP Snooping & QoS

flow control Energy-efficient

fanless design

Plug and play installation

Ideal for Wi-Fi 6 applications 802.3az

energy-efficient

Ethernet support Performance varies with conditions

Suitable for M.2 slot type 2242/2260/2280, adjustable with Key-M or Key-B based on PCI Express communication.

Expands 2 independent RS-232 serial ports with communication speeds of up to 460.8 Kbps.

Designed to meet PCI Express Base Specification Revision 1.1.

Automatic flow control on the chip guarantees no data loss.

Built-in 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.

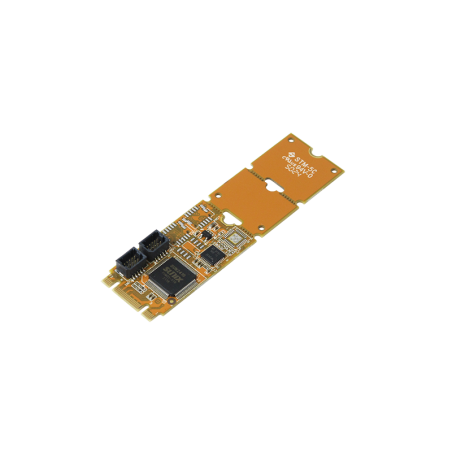

M.2 (2242/2260/2280 type, B+M)

With 90˚ connector in relation to the PCB

Suitable for M.2 slot Type 2242/2260/2280 adjustable with Key-M or Key-B based on PCI Express communication.

Expands 2 independent RS-232 serial ports with communication speeds up to 460.8Kbps.

Designed to meet PCI Express Base Specification Revision 1.1.

On-chip hardware auto flow control to guarantee no data loss.

Built-in 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Certified by CE, FCC, VCCI, BSMI, RoHS, and Microsoft WHQL approval.

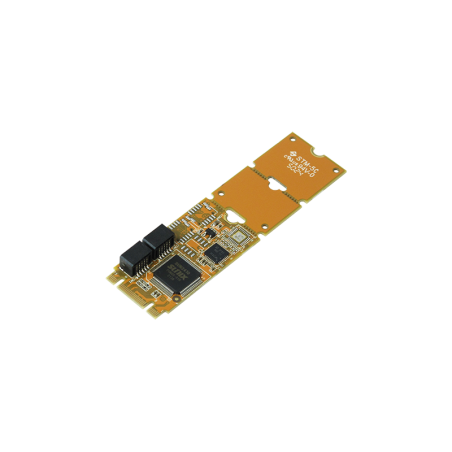

M.2 (2242/2260/2280 Type, B+M)

With 180˚ connector

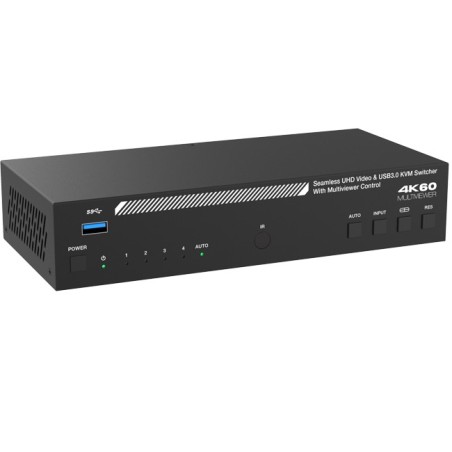

4-Port KVM Switch

4K@60Hz HDMI

HDCP 2.2 and 1.x

18Gbps Video Bandwidth

3x USB 3.1 Ports

EDID Support

PSU 12V/2.5A (included)

Power consumption: 18.48W (max)

Dimensions: 220x100x44mm

Weight: 443g

KVM Remote Control over IP

HDMI, 1920x1080@60fps

Keyboard and Mouse Support

Remote OS Installation

Control via website

Wake On Lan

Virtual USB Mounting

80ms ~ 200ms delay

SD Card expansion

I/O Expansion

Power from USB-C port

Dimensions; 48.5 48.5 x 29 mm

Serial Port Converter with PoE

2x 3-wire RS-232 Port

Supports Baud Rate Up to 115200 bps

Parity Options: None, Odd, Even, Mark, Space

Data Bit Configurations: 5, 6, 7, 8

Stop Bits Options: 1, 2

Operating Temperature: -25 ~ +75 °C

Humidity: 10 ~ 90% RH, non-condensing

32-bit ARM CPU

Dimensions: 52 mm x 27 mm x 95 mm

Power input: 12-48VDC

Power Consumption: 0.07 A @ 24 VDC

Plastic Casing with DIN-Rail Mounting

24VDC power supply 3A

EU cable

Input AC110V~220V

DC connector 5.5/2.1 mm

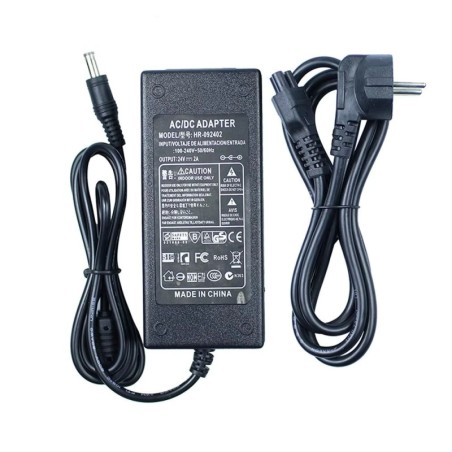

24VDC power supply 8A

EU cable

Input AC110V~220V

DC connector 5.5/2.1 mm

CPU Intel® 14th/13th/12th Core™ LGA1700 Socket (Max. 35W)

RAM 1 x 262-pin DDR5 SO-DIMM 4800/5600MHz SDRAM MAX.32GB

Intel® H610E, Integrated Intel® UHD Graphics 730/770

1 x 2.5GbE ports 2 x GbE ports, (1 x Intel® i226LM, 1 x Intel® i219LM,1 x Intel® i210AT)

Watchdog Timer

TPM: dTPM 2.0

2xCOM ( 1x RS232, 1x RS232/422/485)

8x USB ( 2 x USB-A 3.2 Gen2 (10Gbps) 2 x USB-A 3.2 Gen1 (5Gbps) 2 x USB-A 2.0 2 x Internal USB-A 2.0)

1 x M.2 E-key 2230 slot (PCIe 3.0 x1 + USB2.0 + CNVi)

1 x mPCIe (PCIe 3.0 x1 + USB 2.0, Full size) w/ 1 x nano SIM card slot

1 x DisplayPort 1.4 (DP++), up to 4096x2304@60Hz

1 x VGA, up to 1920x1200@60Hz

1 x M.2 M-key 2242/2280 slot (PCIe 4.0 x4 + SATA)

Wall-mount (standard), DIN-rail (optional w/ CTOS bracket)

-20 ~ 60°C, ambient w/ air flow

CE, FCC Class A

Dimensions (W x D x H) 55 x 164 x 210mm

DC 12~24V via 2-pin terminal block, max. 80W

OS SUpport: Windows 10 / Windows 11 / Ubuntu

NVIDIA® Jetson Orin™ Nano with up to 1024 CUDA cores

8-core Arm® CPU and 4GB/8GB LPDDR5 RAM

1× GbE LAN and 2× USB 3.2 + USB-C

HDMI 2.0 with 4K output

Integrated 128GB NVMe SSD (M.2 2280)

Supports Wi-Fi module via M.2 E-key

9–24V DC input, low power consumption

Operation from -25°C to +50°C

Ideal for compact AI, IoT and vision solutions

Intel® Core™ i7-1255U (Alder Lake, 10 cores / 12 threads, 1.7GHz up to 4.7GHz)

Intel® Iris® Xe Graphics – supports 4× HDMI 2.0 (4K output)

DDR4 SO-DIMM – up to 64GB RAM

1× M.2 NVMe SSD

1× SATA3.0

Network:

1× Intel® i225 (2.5GbE)

1× Intel® i219 (1GbE)

PXE boot supported

Serial ports: 6× RS232 (COM)

4× USB3.2

4× USB2.0

Audio: 1× Mic-in, 1× Line-out

Expansions: 1× M.2 slot for Wi-Fi (Intel® CNVi), 1× external antenna

Case: aluminum, passive cooling, silver color

Dimensions: 255×220×60 mm, weight 1.6 kg

Operating temperature: -20°C to +60°C (requires special RAM and SSD)

Power supply: DC 19V

OS Support: Windows 10/11 and Linux 64-bit

Can be configured with desired RAM, SSD and operating system, contact us
