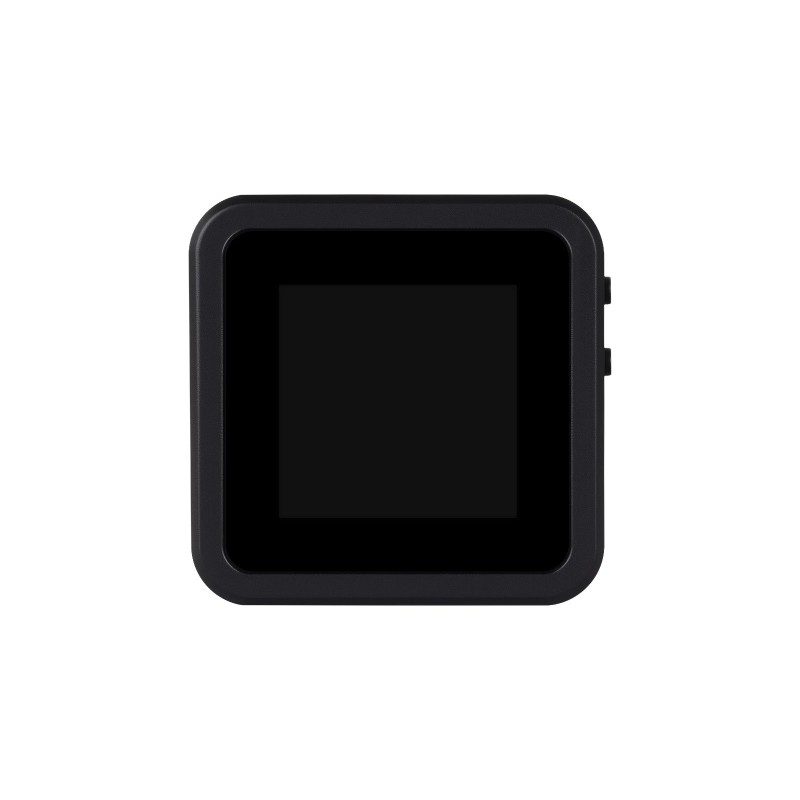

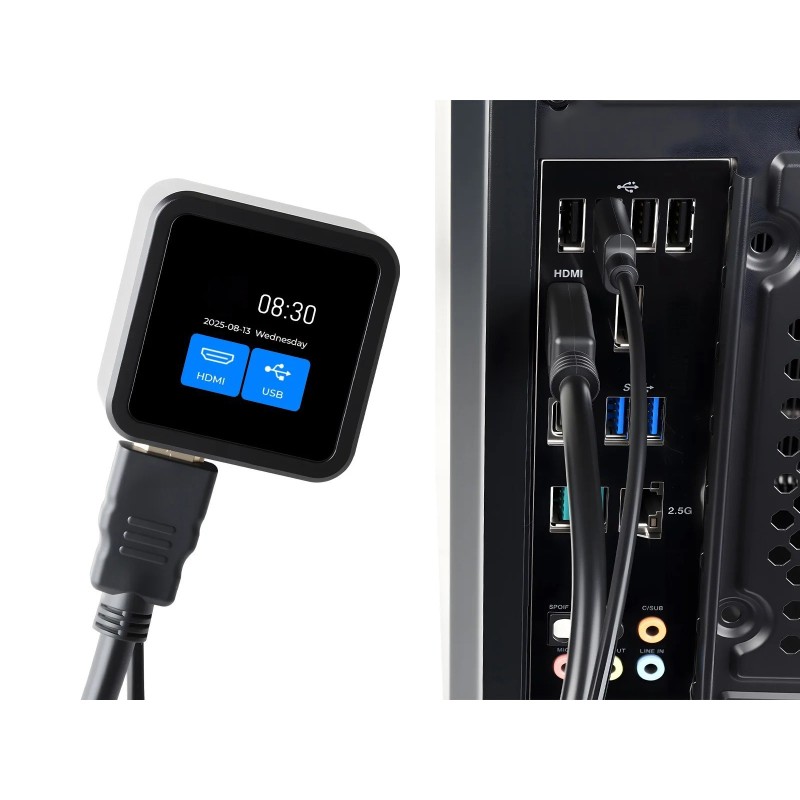

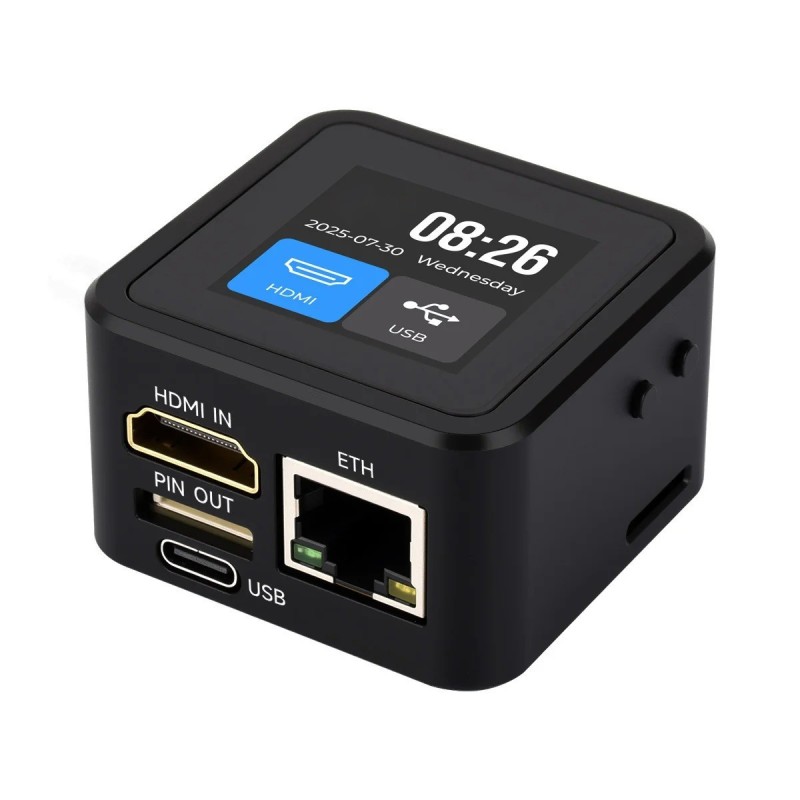

HDMI KVM Remote Control, Over IP, 1920x1080@60fps

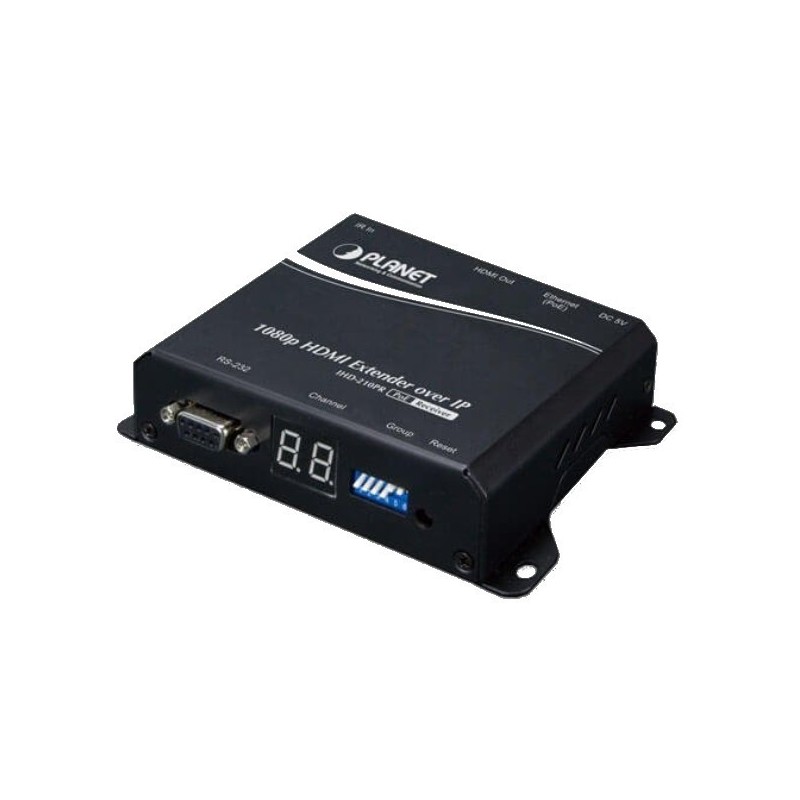

HDMI Video Receiver with PoE
Transmitter Module is purchased: HDMI-Multi-HD-T
Video Wall with a maximum of 64 units
H.264 Video Encoder / Decoder, IR transfer
Delay of approximately 1 second from transmitter to receiver
HDMI 1.4a
Connection over IP - Use switch with IGMP Snooping
Max. 64 Groups
Range Up to 100m - Point to Switch or to Transmitter
Cables Cat 6a. Good quality
Edid Emulation - possibly not on all screens, then buy it from Danbit
1 x RJ45, 1 x DB-9, 1 x HDMI exits
Supply IEEE 802.3AF / to POE + or 5V DC, 2a (not included)
Requires quality switch When used over IP
Dim: 130 x 82 x 30 mm

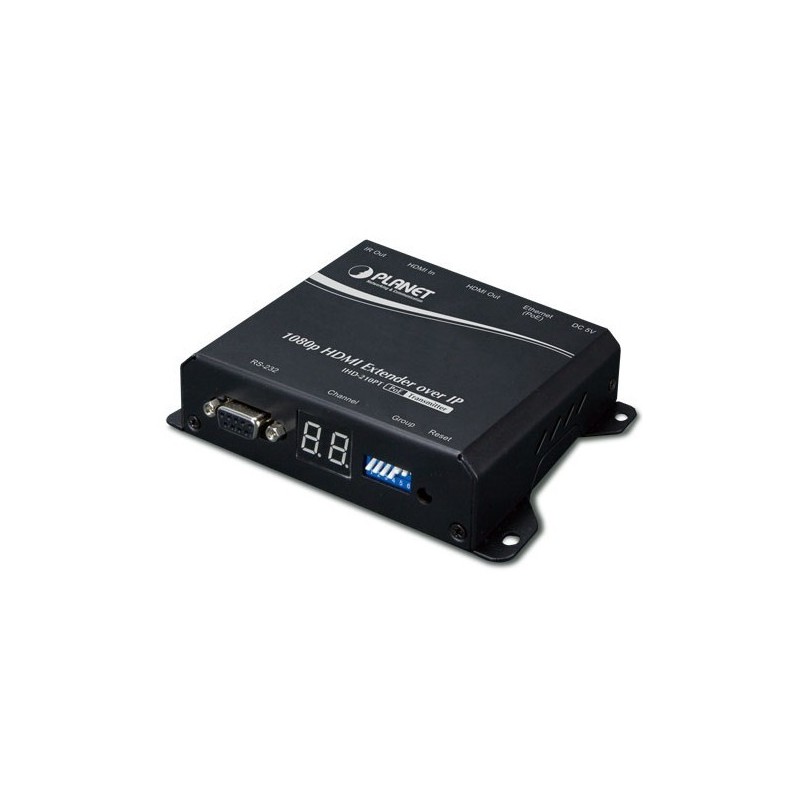

HDMI video transmitter PoE
Suitable for video wall
With HDMI Loop Out
Delay of approx. 1 second from transmitter to receiver
HDMI 1.4a - H.264
By IP multicast use switch with IGMP Snooping
Range up to 100m
Cables Kat. 5th / 6
EDID Emulation
IR Transfer
1 x RJ45, 1 x DB-9, 1 x HDMI Input, 1 x HDMI Output
Supply IEEE 802.3af / at PoE +; 5V DC, 2A (not supplied)
As receiver, use HDMI-MULTI-HD-M

4K HDMI/USB video receiver PoE over LAN
Suitable for Video wall
Use Multi casting switch (IGMP Snooping)
1080p or 4K (3840 x 2160) HDMI resolution
HDMI 1.4a - approx. 0.1 second delay between transmitter and receiver
1 x RJ45, 1 x DB-9 female, 1 x HDMI female
4 x USB 2.0 type A (mouse/keyboard/USB touch)
Can be fitted up to 8 x 16 video wall
Transmitter/receiver selector - 16 channels (DIP)
Supply: IEEE 802.3af/at PoE+; 12V DC 3A (not included)
Range up to 100m over direct Cat. 5e/6 UTP cables
EDID emulation and IR transfer
As transmitter, use HDMI-MULTI4K-T

HDMI Matrix over IP.
Video Wall configuration
Setup with DIP switches (TX-RX Pair)
Max 24 transmitters and 96 receivers (contact us for buying TX or RX units separately.) < br> HDMI 1.3, HDCP 1.3.
HDMI loop out to the local monitor
Resolution 1080p @ 60/50/30/25 / 24Hz, 720p @ 60 / 50Hz.
point to point over Cat 6. Maximum . 100meter. Point to many Hotels can be supplied via PoE (802.3af) or 12VDC 1A (PSU included).
Power Consumption: 2.5W.
Switch must support protocol: IGMP Snooping or IFMP.
Delay: 120ms
Operating temperature: 0 ~ 40 ° C.

Transmits HDMI video and audio and USB up to 150 meters over network cable
Transfers HDMI video and audio and USB over local TCP/IP network
USB is for keyboard and mouse only
Set with transmitter and receiver
1920 x 1080 @60Hz
A transmitter to multiple receivers over non-managed switch.
Supports keyboard and mouse ONLY
Supports TCP/IP and local EDID
HDMI 1.3 / HDCP 1.2
Transmitter: 1 x HDMI, 1 x USB-B, 1 x RJ45 Ethernet
Receiver: 1 x HDMI, 2 x USB-A, 1 x RJ45 Ethernet
built-in auto-adjustment system
Built-in ESD protection system
Power supply: DC 5V/1A (supplied)
Dimensions: 92 x 70 x 25 mm
