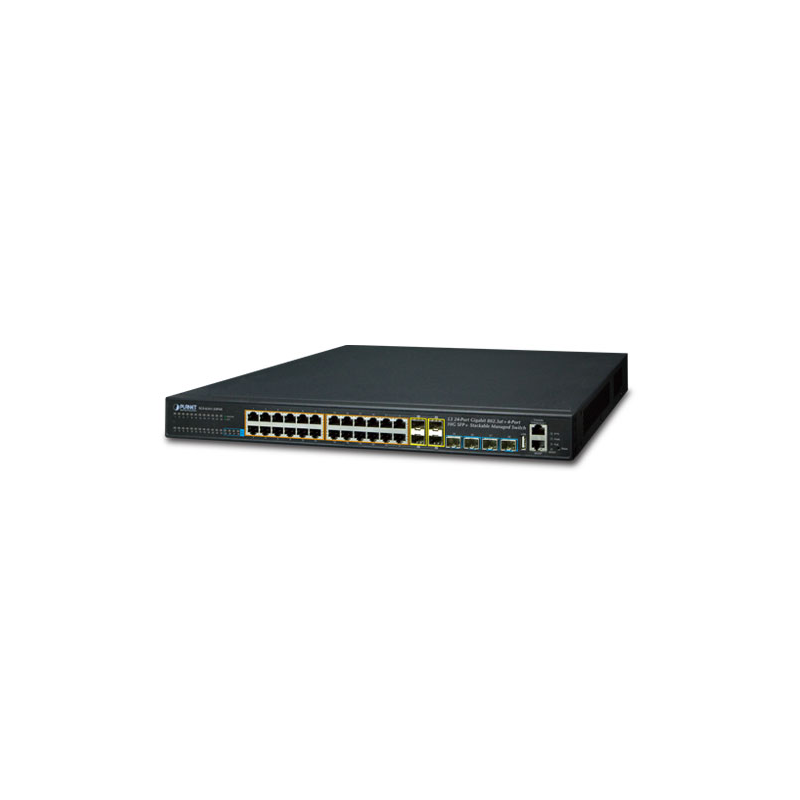

24 port managed switch 24 x 10/100/1000Mbit RJ45. Fiber 4 x 10Gbit / 1Gbit SFP slot, LCD touch screen, 230VAC

24 x 10/100 / 1000BASE-T Gigabit RJ45 copper ports
4 x 10GBASE-SR / LR SFP + ports, compatible with 1000BASE-SX / LX / BX SFP
RJ45 console port
LCD touch screen
Operating temperature 0 to +50 ° C
Humidity 5 ~ 95% (non-condensing)

ESW24G4SFP10G
5,610.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

DANBIT's ESW24G4SFP10G with LCD Touch Screen provides 24 10/100 / 1000Mbps Gigabit Ethernet ports and 4 10Gigabit SFP + uplink ports. The ESW24G4SFP10G series can handle extremely large amounts of data in a secure topology related to a high-capacity data center or service provider.

Standards:
IEEE 802.3 10BASE-T,
IEEE 802.3u 100BASE-TX / 100BASE-FX,
IEEE 802.3z Gigabit SX / LX,
IEEE 802.3ab Gigabit 1000T,
IEEE 802.3ae 10Gb / s Ethernet,
IEEE 802.3x flow control and back pressure ,
IEEE 802.3ad port trunk with LACP,
IEEE 802.1D Spanning Tree Protocol,
IEEE 802.1w Rapid Spanning Tree Protocol,
IEEE 802.1s Multiple Spanning Tree Protocol,
IEEE 802.1p Class of Service,
IEEE 802.1Q VLAN tagging,
IEEE 802.1x Port Authentication Network Control,
IEEE 802.1ab LLDP,
ITU-T G.8032 Ethernet Ring Protection Switching,
RFC 768 UDP,
RFC 791 IP,
RFC 792 ICMP,
RFC 793 TFTP,
RFC 1112 IGMP v1,
RFC 2068 HTTP,
RFC 2236 IGMP v2,
RFC 2710 MLD v1,
RFC 3376 IGMP v3,
FRC 3810 MLD v2.

Data
32M bits
Dimensioner
440 x 300 x 56 mm, 1.25U height
Driftstemperatur
0 ~ 50 degrees C
ESD
6KV DC
Input
Reset Button below 5sec System reboot, over 5sec Factory default
Luftfugtighed
5 ~ 95% (non-condensing)
Porte
24 X 10/100/1000BASE-T RJ45 auto-MDI/MDI-X, 4 X 10GBASE-SR/LR SFP+, 1 X RJ45 console port
Strømforbrug
Max. 35.1 watts
Weight
3.7kg
