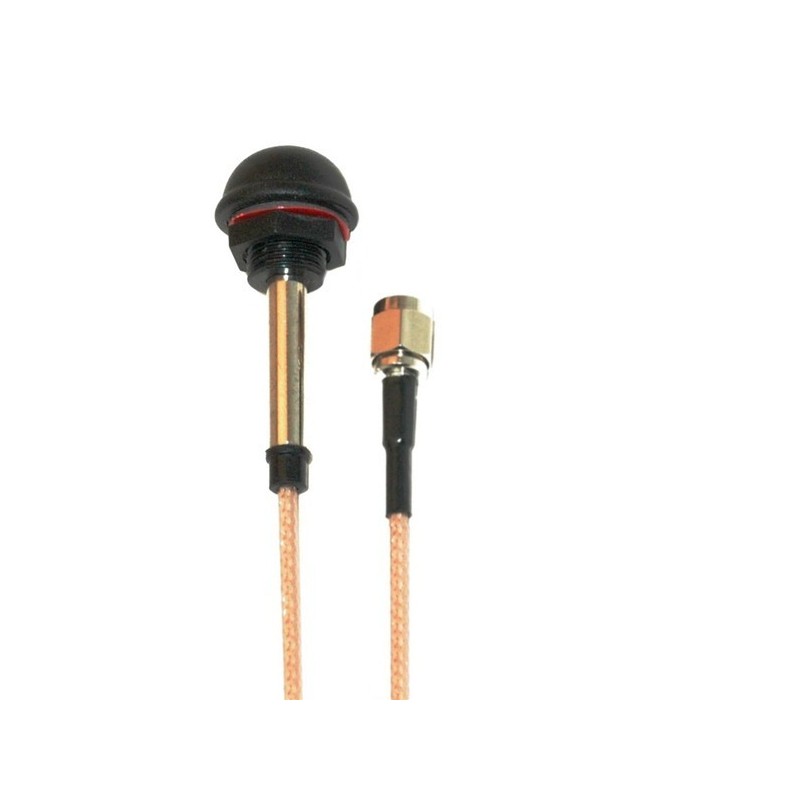

0 dBi 2.4GHz PUK antenna, RSMA and connector

2.4GHz indoor omnidirectional antenna 0 dBi
Antenna for short range applications
1.5 meter cable, RSMA male connector
Robust, suitable for industrial machine
Gasket included - provides a watertight assembly

WLAN-OMNI-RSMA-PUK
256.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Omni-directional antenna – i.e. when deb is mounted vertically, the radiation is the same in all directions in the horizontal plane (horizontal spread is 360°).

Internally, it consists of a series of vertical dipoles that lie in extension of each other. Therefore, they have gain that can compete with yagi antennas, but this also means that you have to be just as careful with the orientation as with yagi antennas. The omni antennas are also sensitive to disturbances all around the horizon. When it comes to "point to point" connections, the yagi, panel or parabola antennas are often the best choice.

Beslag
1,5 m kabel
Gain
0 dBi
Horisontal spredning
360°

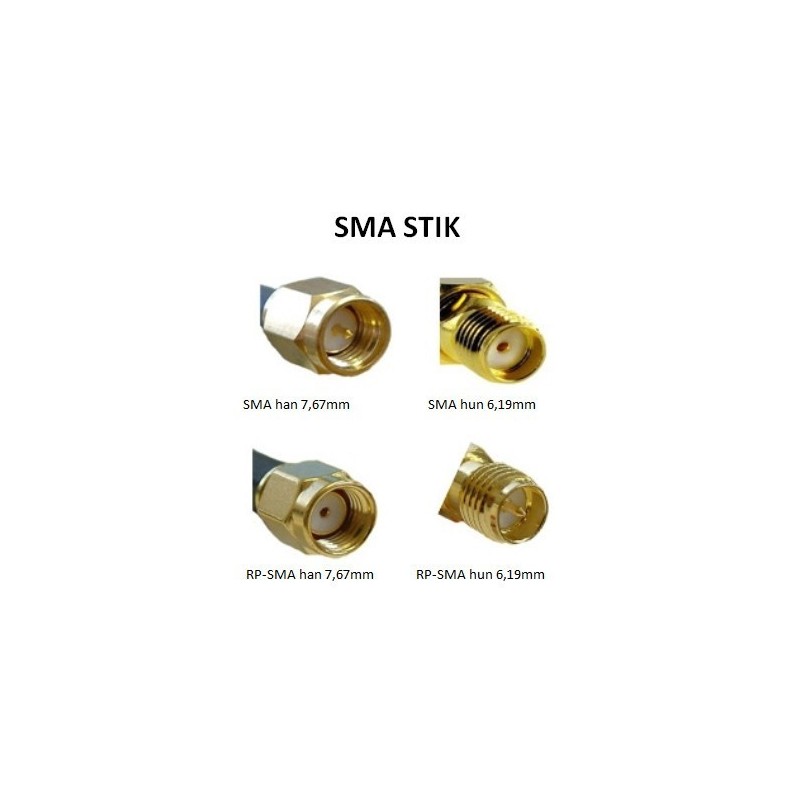

Stik
R/ SMA han
