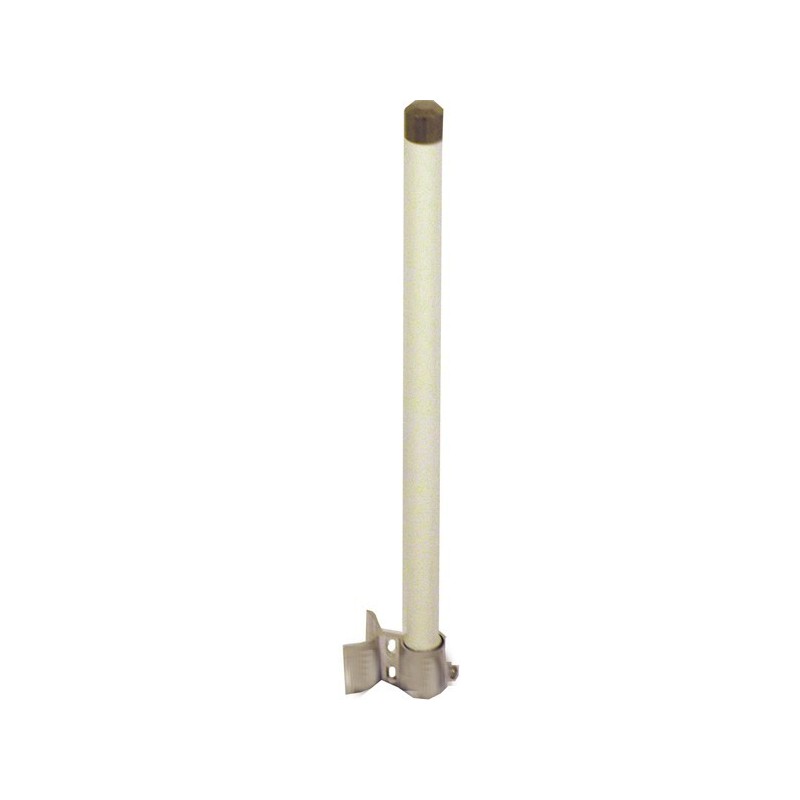

7 dBi 2.4GHz omni antenna, RSMA male connector at the bottom, mast bracket with strips

Outdoor / indoor 2.4GHz omnidirectional antenna 7 dBi
Vertical spread is 18 degrees
Horizontal spread is 360 degrees
With RSMA he plugs into the bottom of the antenna
Height 24cm
Mast mounting with strips

WLAN-OMNI7RSMA
296.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Omni-directional – ie when mounted vertically, the radiation is the same in all directions in the horizontal plane (horizontal dispersion is 360°).

Internally, they consist of a series of vertical dipoles that lie in extension of each other. Therefore, they have gain that can compete with the yagi antennas, but this also means that you have to be just as careful with the orientation as with yagi antennas. The omni antennas are also sensitive to disturbances all around the horizon. When it comes to "point to point" connections, the yagi, panel or parabola antennas are often the best choice.

Beslag
Mastebeslag, 5 GHz
Dimensioner
325 mm (H)
Gain
7 dBi
Horisontal spredning
360°
Stik
R/ SMA han
