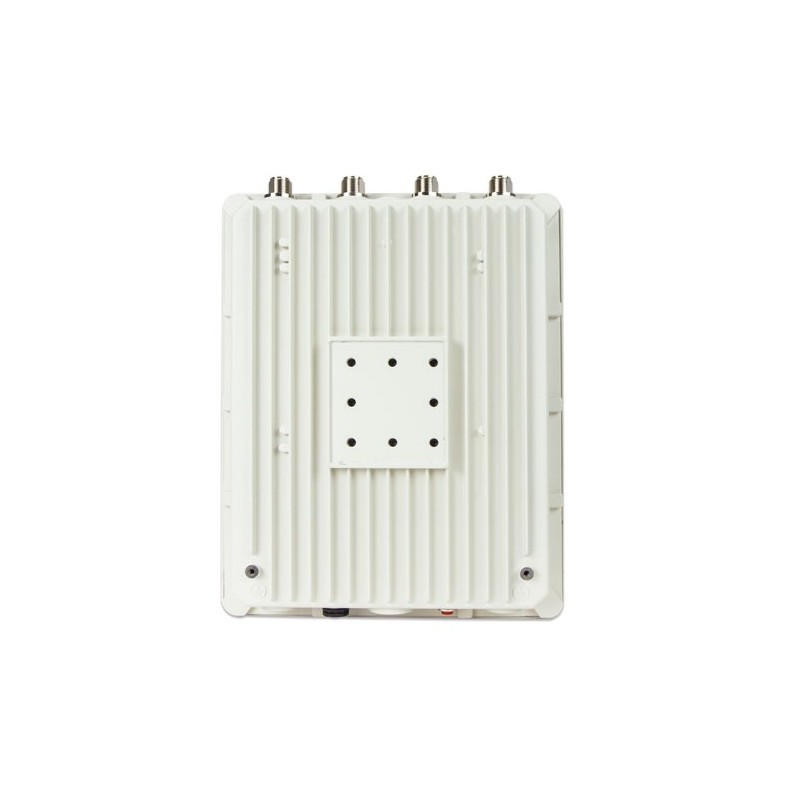

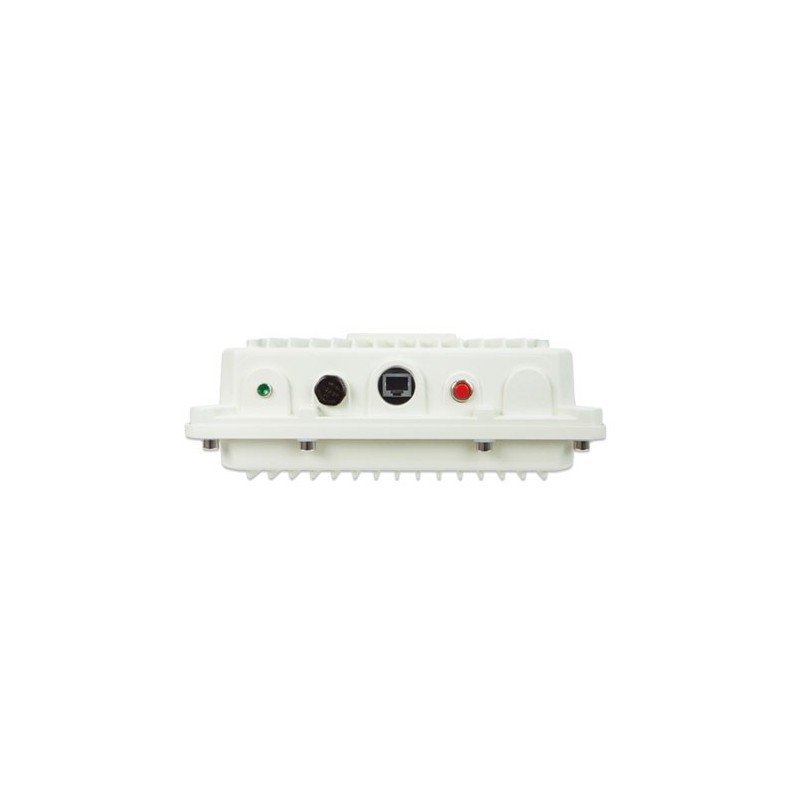

3000Mbit 2.4/5GHz outdoor Wifi Access Point, Gateway, Repeater, Wi-Fi Mesh. IP67 aluminum housing, PoE+ -40 - +70°C

  • New

Outdoor robust Dual Band Access Point etc.
AP, Gateway, Repeater, Wi-Fi Mesh
2.4GHz and 5GHz, 600/2400Mbit (3000Mbit)
Up to 256 clients Wi-Fi 6
1 x RJ45 Gigabit port PoE+
IEEE 802.11ac 2T2R - Wave 2
Up to 20dBm (EIRP)
4 x N-female connector
IP67 cast aluminum housing for mast mounting
Operating temperature: -40 - +70°C
Real-time Wifi channel analyzer
Dimensions: 295 x 231 x 80 mm
Weight: 2.5kg
Supply: PoE, 48V/0.5A (PoE+)

WLAN-AP3000AX-U
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Wireless Interface Specifications:
IEEE 802.11ax
IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control
IEEE 802.11k, 802.11v, and 802.11r

Media Access Control:
802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM)
802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode:
2.4GHz:
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz
5GHz:
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz

Operating Channels:
ETSI:
2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels)
5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,256,132, 136, 140 (19 Channels)
FCC:
2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 Channels)
5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24Channels)
5GHz channel list may vary in different countries according to their regulations.

Andet
Mesh Auto Channel Selection 5-level Transmit Power Control: Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart Seamless Roaming Beamforming BSS Coloring
Antenne
Built-in four N-type connectors
Dimensioner
231 x 80 x 295 mm
Driftstemperatur
-40~ 70 degrees C
Interface
PoE WAN/LAN: 1 x 10/100/1000BASE-T, auto-MDI/MDIX, 802.3at PoE In
IP-Tæthed
IP67
Kanaler
20MHz, 40MHz, 80MHz, 160MHz
Modes
Access Point Gateway Repeater WISP Mesh
PoE
48V 0.5A, IEEE 802.3at PoE+,< 15W
Sikkerhed
Enable/Disable SSID Broadcast Wireless Max. 32 MAC address filtering User Isolation
VLAN
IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping to up to 4 SSIDs
