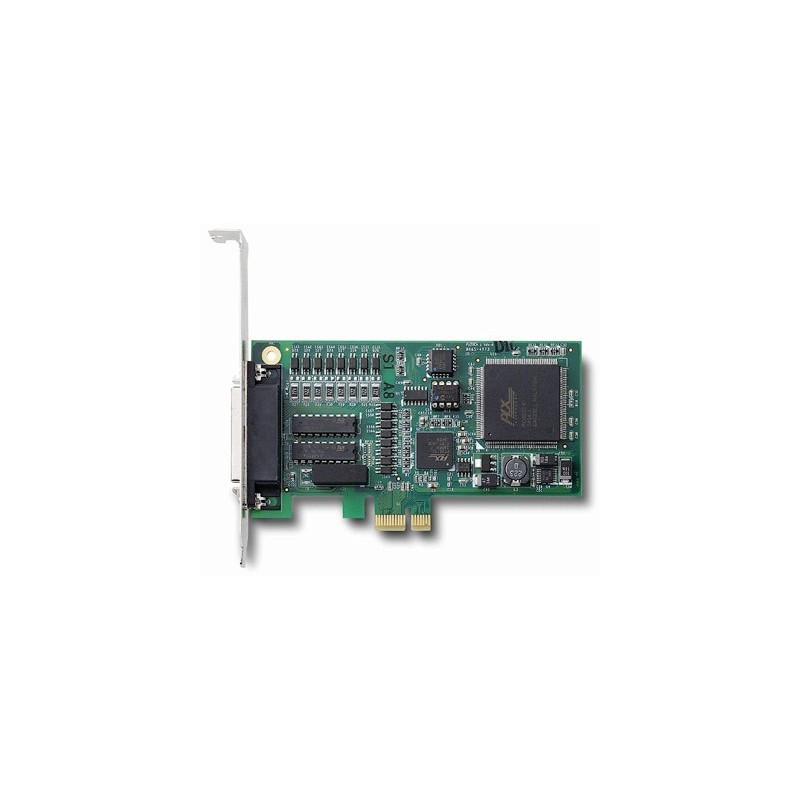

Adlink LPCIe-7230G. 16-channel isolated digital input, 16-channel isolated digital OC output, PCIe Express, Low Profile

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

Supports a 32-bit 5 V PCIe Express bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

OPTO16I16PCIE-L
4,043.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

OPTO16I16PCI-LE (ADLINK's LPCIe-7230G) is a 32-CH isolated input and/or output cards which provide a 2,500 V optical isolation protection. The wide input range of the OPTO16I16PCI-LE makes it easy to sense the status of external devices. The non-polarity characteristic is suitable for a wide variety of industry applications. The OPTO16I16PCI-LE device also features a wide output range from 5 to 35 V, which is suitable for relay driving and industrial automation applications. The OPTO16I16PCI-LE also provides two interrupt sources on digital input channels.

Dimensioner
69 x 120 mm
Indgang
16 optoisolerede, fælles stel (minus) Logisk 0: 0-1,5 VDC Logisk 1: 5-24 VDC
Indgangsimpedans
1,2 kΩ / 0,5 W
Isolation
2.500 VDC på ind- og udgange
Software
Drivere til Windows 2000, XP, Win7 og Win8 Labview og Linux medfølger
Stik
MiniDB50 med klemmer
Udgange
16 optoisolerede, fælles stel (minus) "Open collector" 5-35 VDC Kan trække op til 500 mA til stel
