PCI Express card for USB 3.1C. PCIE card with USB3.1C

PCI Express Base Specification Revision 3.0 single lane (x1).

Compliant with the Universal Serial Bus 3.1 specification Gen2.

Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1

Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices

Supports USB data transfer rate of 10G/5G/480/12/1.5Mbps.

Expands a single external USB 3.1 Super Speed plus Type-C port (DFP) on the system.

The USB port provides a maximum of +5V DC / 3000mA power output to USB device.

Built-in overcurrent protection on each USB port.

Supports the device's remote wake-up function from USB keyboard or mouse.

The hot swapping feature allows you to connect/disconnect a device without turning off the system.

Driver support for Microsoft Windows 7, 8.x and 10 operating systems

Certified with electromagnetic compatibility CE, FCC, VCCI, C Tick, BSMI and RoHS approval.

Windows 11 64bit

Windows 10 32/64 bit

Windows 8.1 32/64 bit

Windows 8.0 32/64 bit

Windows Server 2022 64bit

Windows Server 2019 64bit

Windows Server 2016 64bit

Windows Server 2012 R2 64-bit

Windows Server 2012 64bit

$35.58
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number CNV-PCIE-USB3.1C
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

OS SUPPORT Windows 7, 8, 10. Linux 2.6.31 eller nyere
Porte 1x USB 3.1C

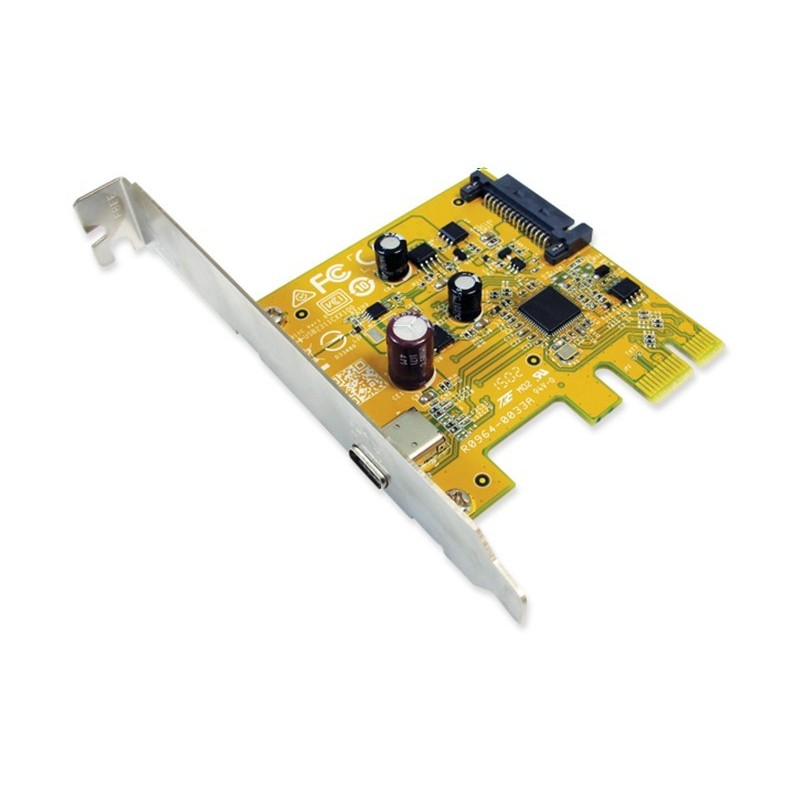

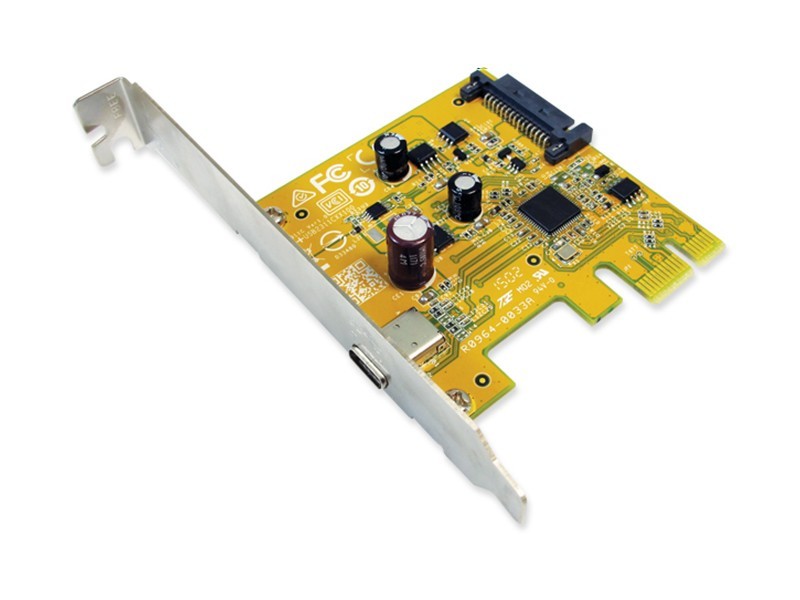

SUNIX USB2311C is a single-port Super-Speed USB3.1 PCI Express card, and it’s compliant with the PCI Express Generation 3 specification for host PC system. Based on USB Type-C pure DFP (Downstream Facing Port) mode, it works up to 10 Gbps for data transfer when connecting to USB 3.1 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. USB3.1 performance is 2 times faster than USB3.0 and 20 times faster than USB2.0 connectivity.

With USB Type-C Receptacle, SUNIX USB2311C sports reversible plug orientation and cable direction, which means that users will no longer need to be concerned with plug orientation/cable direction, making it easier to plug in. The new connector is smaller and thinner design, but drive higher power output capacity to USB device. SUNIX USB2311C supports 5VDC@3000mA power output to USB device with over current protection on each USB port. This card is an ideal choice for external storage devices, digital cameras, webcam, video devices, and all other USB electronic devices.
