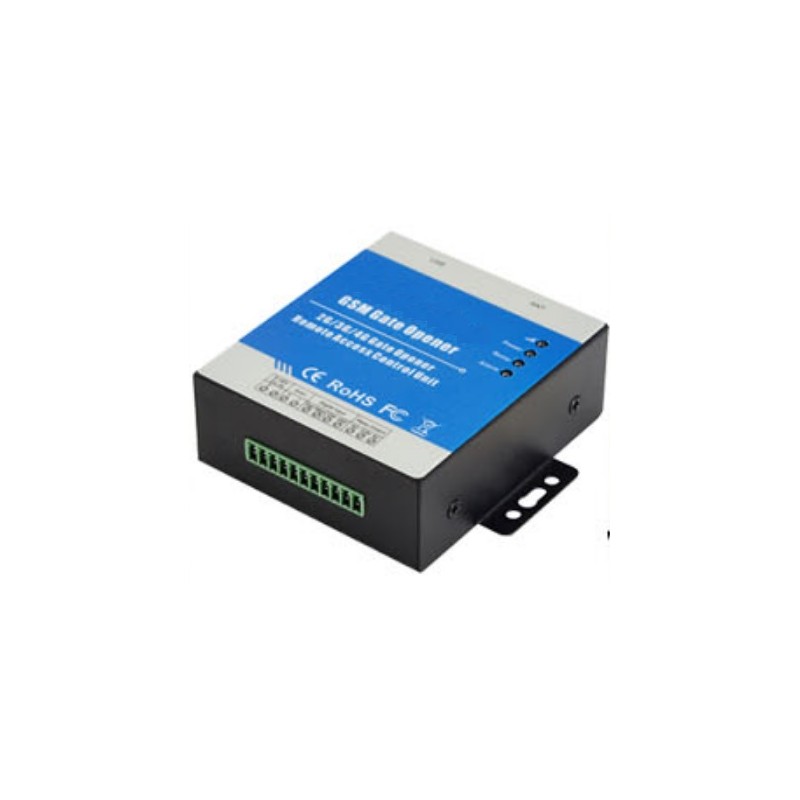

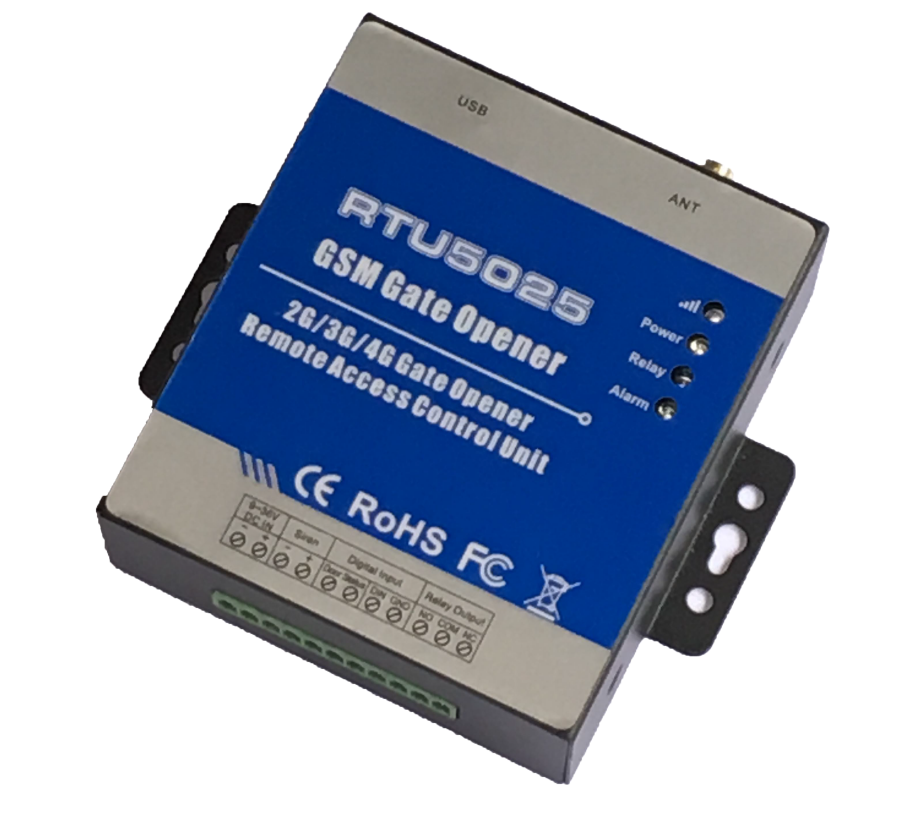

Access control via calls from a mobile phone. GSM Relay relay with space for 999 users, 3G 4G LTE

GSM I/O box. Compact access control with up to 999 users
Specified time range for access
3G/4G 850/900/1800/1900 MHz
2 digital contact inputs
1 Relay output 230Vac max. 3A
Supply voltage: 9-15VDC
Dimensions: 88 x 70 x 30 mm
Operating temperature: -20 - +60°C
Antenna included
APP for Android

GSM-GATE
2,294.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

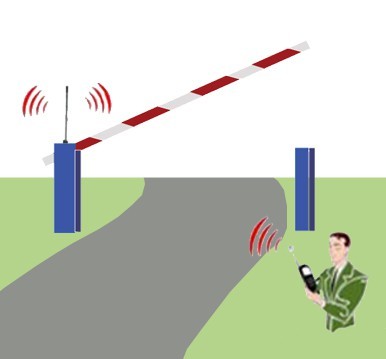

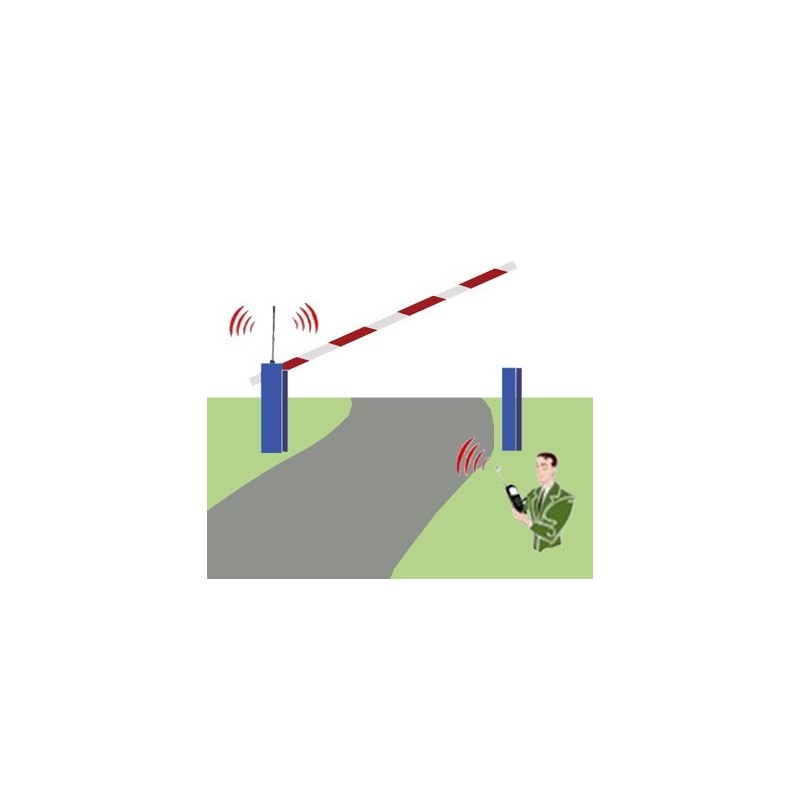

With a memory of up to 999 phone numbers, GSM-GATE is the perfect device for access control of a gate or door lock, e.g. car parks, and apartment blocks where only residents want access. The output is activated by calling the device and when it has accepted the phone number, it gives a busy tone and the relay output is activated. The relay output is interrupted via a time limit, which can be changed between 0.5 and 998 seconds.

GSM-GATE also has 2 digital inputs and an output for a siren and they can be used in connection with the first 2 phone numbers on the list to send an alarm via SMS, upon activation of the digital inputs. If the alarm goes off, it calls number 1 to number 10 in order

ATTENTION! Uses the GSM network 850 - 1900 MHz (requires installation of SIM card with regular voice subscription not included)

Programming is done using SMS messages, android app or computer via usb

999 different phone numbers can be programmed via SMS message, Android APP or computer via USB.

2 digital input contact inputs for alarm messages
1 relay output 240VAC/3Amp.

Antenne
Ja, medfølger
Dimensioner
W88mm X D78mm XH32mm
Driftstemperatur
-20~+60 °C
Forsyning
9 -15 VDC, maks. 2 W leveres med strømforsyning
Indgang
2 digital indgang kontakt indgange til alarm beskeder
Luftfugtighed
Relative humidity 90%
Tilslutning
via skrueterminal
Udgange
1 relæudgang slutte 230 VAC maks. 3 A
