10 port switch with 8 x 10/100 / 1000Mbit PoE + 36W + 2 x SFP - Unmanaged, 48-56VDC
8 x RJ45 PoE + 36W Gigabit
2 x SFP 100/1000 Mbit
10K Jumb frames
2M Packet Buffer
16K MAC address table
-40 to + 75 ° C

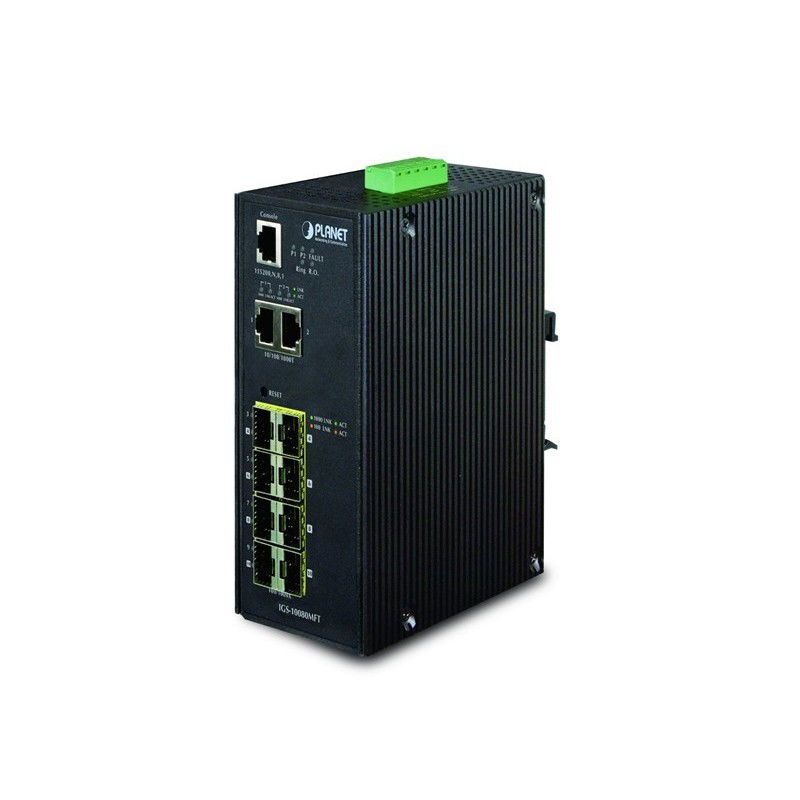

Managed switch. 8 x SFP, 2 x RJ45 ports
8 x fiber ports - 100/1000Base-SX / LX mini-GBIC SFP slots
2 x copper ports - 10/100/1000Mbit RJ45
IP30 enclosure
DIN rail and wall mounting
24:02 48V DC, redundant power
Can accept 24VAC
-40 to +75°C operating temperature
Dimensions: 152 x 107 x 72 mm
Managed switch with central administration via web interface, SSH, Telnet and SNMP. Each port's status can be displayed on a webpage.
ESW10G8SFP can also be configured for port security and port mirroring.
Port security ensures that only devices with the configured MAC address can connect to The port selected
Port port, Ports can be monitored so all traffic coming through the monitored port will also be sent to another port.
IP and MAC-based Access Control List
Supports approval via TACACS + and RADIUS server
Filtering non-approved DHCP snooping and manipulated ARP packages from
Supports Link Aggregation where multiple ports can be "linked" for faster speeds.
8 x RJ45 PoE + 36W Gigabit
2 x SFP 100/1000 Mbit
10K Jumb frames
2M Packet Buffer
16K MAC address table
-40 to + 75 ° C
Managed Industrial Fiber Switch to Network Back-Bone
24 Ports Managed Switch
24 x 100 / 1000Base-X SFP Mini-GBIC / SFP Slots
4 x 10Gbit SFP + Slots
4 x 10 / 100 / 1000Base-T RJ45 Ports, Shared with Port-1 to Port-4
Cyber Security
IGMP Snooping
ERPS Fast Recovery Ring, Redundant
1588 Time Protocol for Time Synchronous Between Switche < Br> Objective: 440 x 200 x 45 mm (1u)
Temperature: -10 - + 60 ° C at AC supply
temperature: -40 - + 75 ° C at DC supply
supply voltage: 100 - 240Vac
supply voltage: 36 - 60VDC 1.2a
Flexible modular configuration, 3 Module-dedicated slots
Up to 20 possible configurations in 4 power input versions
Up to 24 PoE ports, with maximum 720W of PoE power budget
4 x 1 Gigabit or 4 x 10 Gigabit SFP Uplink slots
RIPv1/v2, OSPFv2, IPv4 Static Routing, and Multicast IP routing
ITU-T G.8032 ERPS Ring, RSTP, MRP (client) and VRRP redundancy
Dedicated MACsec modules available for additional ultra-low-latency, high-throughput strong security
Rugged industrial design for -40° ~ +75°C harsh environment operation
PROFINET v2.33 CC-B conformance
EN50155 and EN50121-4 certified for Railway and Trackside applications
Powerful managed 18 port Industrial switch
Managed switch. 16 x RJ45 +2 x SFP
16 x 10/100/1000Mbit switch with PoE+ (36Watt)
Total PoE power is 320 Watt (dual DC input)
2 x 10/100/1000Mbit RJ45
2 x 100/1000/2500Mbit SFP slot
Supports 2.5GHz SFP module
IGMP snooping
MLD Snooping
DHCP relay / DHCP Server
Cyprus Security
ERPS Call. Fast Ring recovery less than 10ms
1588 Time Synchronization Protocol
Layer 2 switch
Temperature range from -40 to +75°C
Supply voltage: 48 - 56VDC - redundant input
Dimensions: 152 x 107 x 87 mm
