2x 10Gbit Ethernet RJ45
Max. Data transfer 20000Mbit/s
Net standard IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad,IEEE 802.3x
Vollduplex 10,100,1000,10000 Mbit/s
Full Duplex support
Chipset BCM57810S
Operates at 1Gbps/10Gbps, auto-negotiation, on both ports
10GBASE-T connectivity supporting up to 100 meters with CAT 6A cabling
Up to 40Gb/s bi-directional near line rate throughput
Hardware acceleration TCP/IP/UDP stateless offloads, as well as for TCP Offload Engine (TOE)
Superior small packet performance
SR-IOV
Active Health Systems support
PXE, Jumbo Frames, Checksum & Segmentation Offload, IPv6 and RSS
On chip temperature monitor (Sea of Sensors)
Field replaceable and upgradeable
Support for Preboot eXecution Environment (PXE)

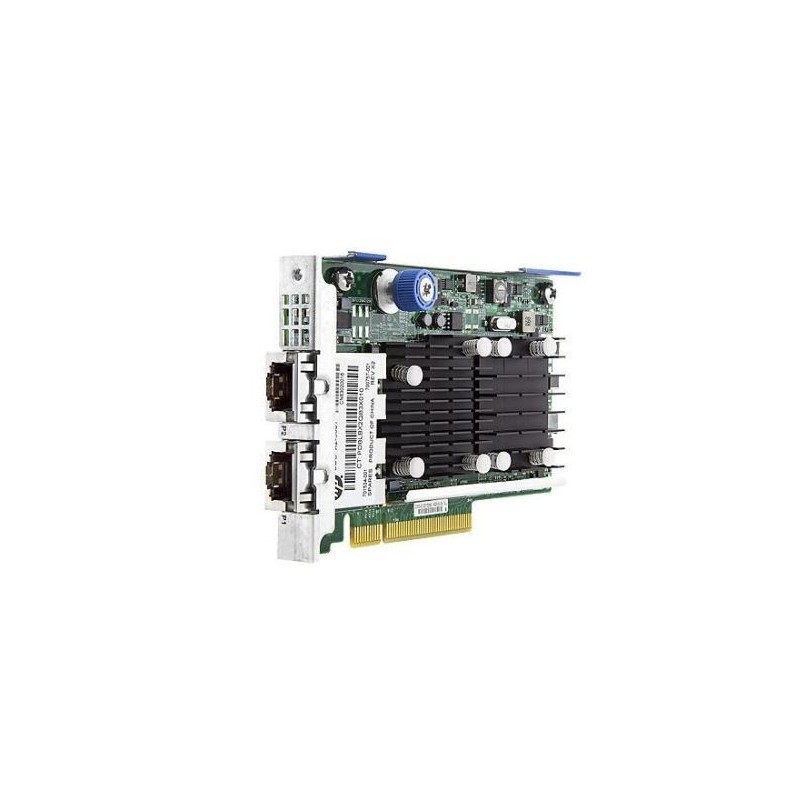

The HP FlexFabric 10Gb 2-port 533FLR-T Adapter is a dual-port 10GBASE-T adapter, featuring the BCM57810S 10 Gb Ethernet solution
from Broadcom in a PCIe 2.0 compliant form factor designed for HP ProLiant Gen8 rack servers. The HP 530FLR-T Adapter delivers full line-rate performance across all ports with low power consumption, utilizing CAT 6A UTP cabling with distances up to 100 meters.
Providing high performance Ethernet connectivity, it is ideal for virtual server and cloud computing environments. It supports enterprise class features (VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumboframes, PXE boot) and virtualization features (VMware NetQueue and Microsoft VMQ).
4 port Gigabit network card
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
PCI express 2.1 x 4
4 x RJ45
For normal and low profile
Chipset: Intel®I350AM4
PCI Express * 2.1 (5GT / s), operable in x4 slots or greater to 4 x RJ45, Cat 5e or more
10/100/1000 Mbps
VLAN filtering, PXE remote boot, IPMI pass-through
Os Support: Win 7 / Win 8 / Win 8.1 / Win 10 32/64Bit, Spain DOS, Linux, FreeBSD, Novell UnixWare / OpenUnix 8
Operating temperature: 0 ~ 55 ℃
Intel 82576EB
PCI Express v2.0 (2.5GT / s), X 4, or x8 operable in x16 slots
RJ45 (copper)
10/100/1000 Mbps
IMPI pass-through , PXE remote boot, VLAN filtering
OS support: Win 7 / Win 8 / Win 8.1 / Win 10 3264Bit
3.6W
Operating Temperature: 0 ~ 55 ℃
Intel X550 chipset
PCIe v3.0 (8.0GT/S)
Automatically negotiation between 1GbE, 2.5GbE, 5GbE and 10GbE
2 x RJ45 ports
Standard Cat 6 network cables
RJ-45 Category-6 up to 55mm, Category-6A up to 100m
Support Windows 64 bit (7, 2008 R2, 8, 2012, 8.1, 2012 R2, 10, 2016
Linux(RHEL6.x/7.x, SUSE11.x/12.x, Ubuntu*14.x/16.X) FreeBSD
