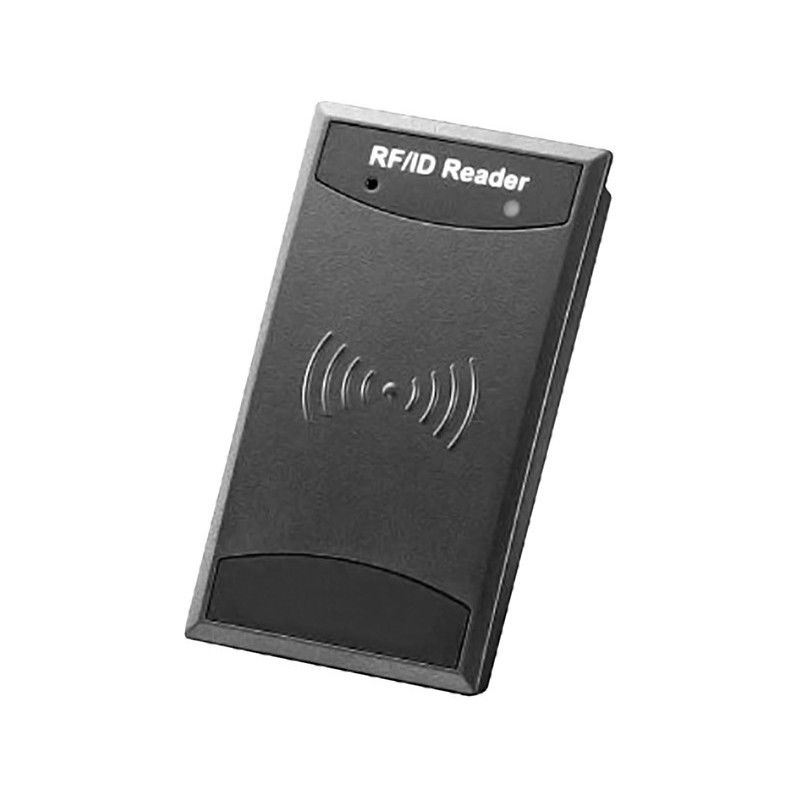

125kHz RFID reader for wall mounting, RS232, Wiegand, 10 digimal), reading distance 0-20cm. 5 - 12vdc preferably linear

RFID Reads 125khz Em-Marin
Em 4100
64 Bit Manchester Coding
10 digit ASCII
RS232 - Only TX and GND
Wiegand Interface
Reading distance: 0 - 20cm Depending Of tag
Supply voltage: 5 - 12VDC
Use liniar power supply (not switch mode)
interface cable from the back
IP67
Goal: 78 x 43 x 15 mm

RFID-ER
1,029.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

RFID readers are high performance RFID readers with long range and small dimensions. The readers run from any voltage from 5 to 12.5 VDC and have a high reading area on as low as 5 volts, making it ideal for a wide range of applications, especially access control. Wiegand, RS-232 serial ASCII output, making it easy to upgrade existing installations.

2 other products in the same category:

RFID reader EM 125khz. UID...

RFID reader EM 125khz. UID is 40 bits, 10 digit ASCII. RS232, Wiegand 26 Bit, LED, Buzzer. Waterproof. 12vdc.

125khz RFID reader for outdoor mounting on wall
sealed with hardened epoxy - cable mid rear
EM4000 125khz RFID Reader for wall mounting
reading distance 0 - 5cm, depending on roof size
40 bit code, 10 digits ASCII (Decimal)
RS232, only TX. GND
9600, 0 Start, 8 Data, 1 Stop, Non Parity, FLOW: HW
Wiegand 26bit format
LED Indicator and Buzzer Control Manager
Supply voltage: 12VDC / 200ma
Cable length 1 meter (8 Core)
Goal: 114 x 46 x 13 mm

Price 947.00 DKK
Product code: RFID-R10N
Physically in stock
