RFID reader EM 125khz. UID is 40 bits, 10 digit ASCII. RS232, Wiegand 26 Bit, LED, Buzzer. Waterproof. 12vdc.

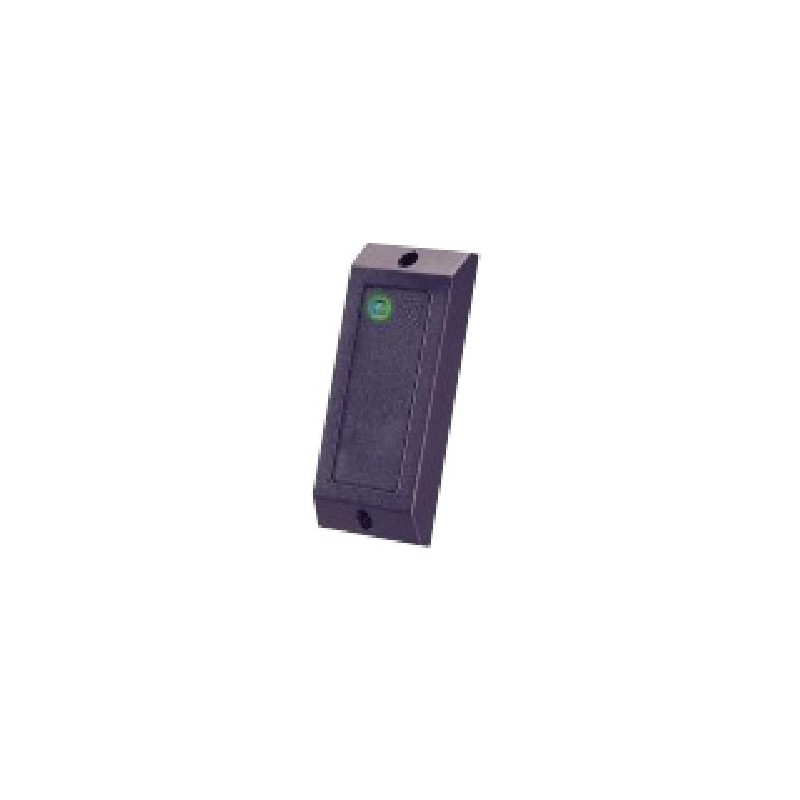

125khz RFID reader for outdoor mounting on wall
sealed with hardened epoxy - cable mid rear
EM4000 125khz RFID Reader for wall mounting
reading distance 0 - 5cm, depending on roof size
40 bit code, 10 digits ASCII (Decimal)
RS232, only TX. GND
9600, 0 Start, 8 Data, 1 Stop, Non Parity, FLOW: HW
Wiegand 26bit format
LED Indicator and Buzzer Control Manager
Supply voltage: 12VDC / 200ma
Cable length 1 meter (8 Core)
Goal: 114 x 46 x 13 mm

Reference: RFID-R10N

947.00 DKK

Tax excluded

Quantity

Physically in stock

Download PDF
Downloads

Ask a question

Description
Product Details

Vægmonteret 125kHz RFID læser til RS232 eller Wiegand 26bit. Dataformat og baudrate finder du i datablad - medfølger og på DANBIT´s FTP-Server.
Kræver log-in for adgang.
8 ledere kabel.
Sort: GND
Rød: +12VDC
Grå: Start/stop for Wiegand
Gul: Wiegand Data 0
Grøn: Wiegand Data 1
Hvid: LED kontrol ledning
Blå: Buzzer kontrol ledning
Brun: RS232 TX data
