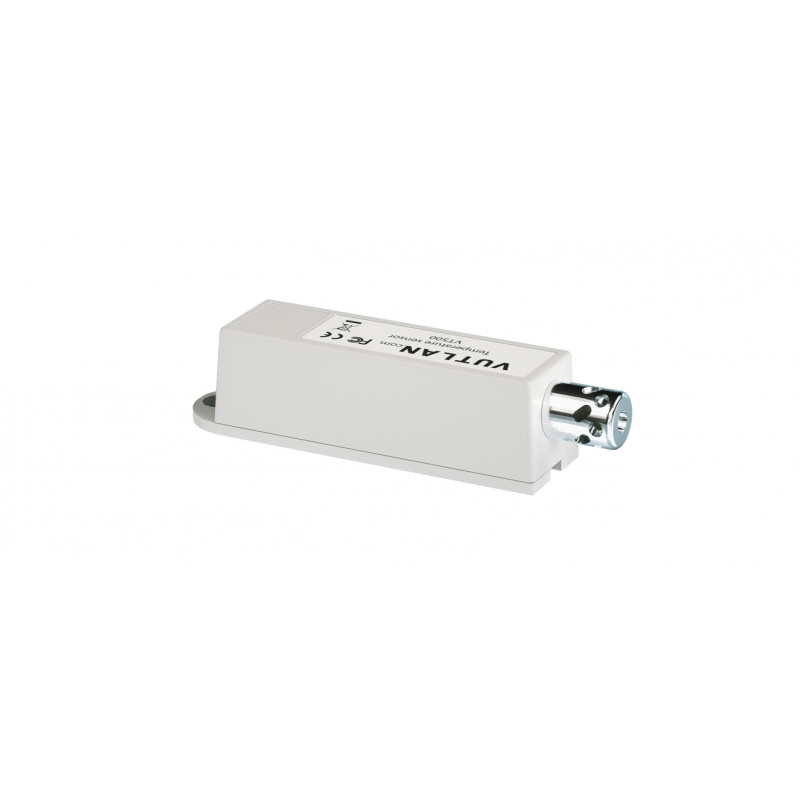

Indoor temperature sensor

Compact indoor temperature analog sensor

Connects to Vutlan monitoring devices

Temperature Range: -10° C to +80° C

Accuracy: ±0.15 °C at room temperature

Cable Length: 3m

Connection: RJ-11 / 6P4C

Dimensions: 60×18×18 mm

Weight: 70 g

Power Consumption: 60 mW

Package Includes: Sensor, cable, screw, sticker

VTL100047
290.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Analog temperature sensor for indoor use, accurate to ±0.15 °C at room temperature, with a range of -10° C to +80° C. Connects to any analog port of Vutlan monitoring units.
Dimensioner
(Length, Width, Height) 60×18×18 mm
Driftstemperatur
-10° C to +80° C
Input
Terminals RJ-11 / 6P4C
Length
Cable 3m
Type
Analog Sensor
Weight
70 g
power consumption
60 MW
