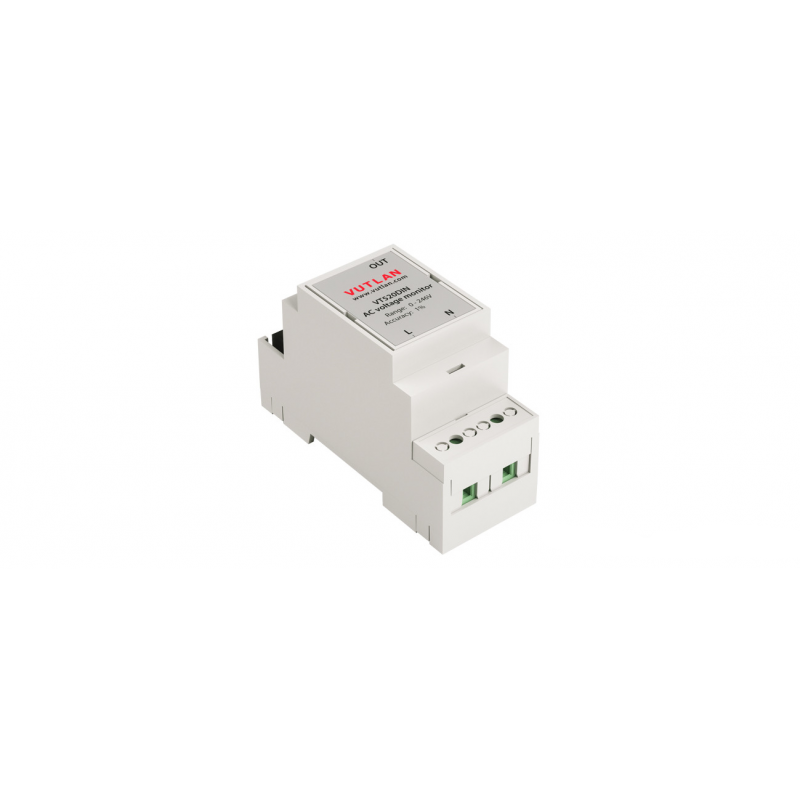

High-Accuracy AC Voltage Sensor for DIN Rail Mounting

Measures 0-246V, AC
High accuracy of 1%
Compatible with various monitoring systems
Easy DIN rail 35mm mounting
Power consumption 60 mW
Dimensions 90.2 x 36.3 x 57.7 mm
Operating temperature Min. -10°C +80°C

$74.66
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number VTL100051
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Dimensioner 90.2 x 36.3 x 57.7 mm
Driftstemperatur Min. -10 °C +80 °C
Input Strip length 6-7mm, Wire cross 2.5mm ² 22~12AWG
Måleområde 0-246V, AC
Output Autosense bus. RJ-11 (6P4C) cable. Output 0-5V
power consumption 60mW
The sensor is used for the measurement of 0-246V, AC. It has a very high 1% accuracy. It can be used with any monitoring system. DIN rail 35mm mounting.
