Media converter RJ45 to fiber, RJ45 10/100/1000Mbit, fiber 1000Mbit Single Mode SC, 10km
10/100/1000Base-TX to 1000Base-LX
1310 nm, Single Mode
Up to 10 km
Uses singlemode fiber cable (9/125 µm)
Only for 1000Mbit fiber, Single Mode

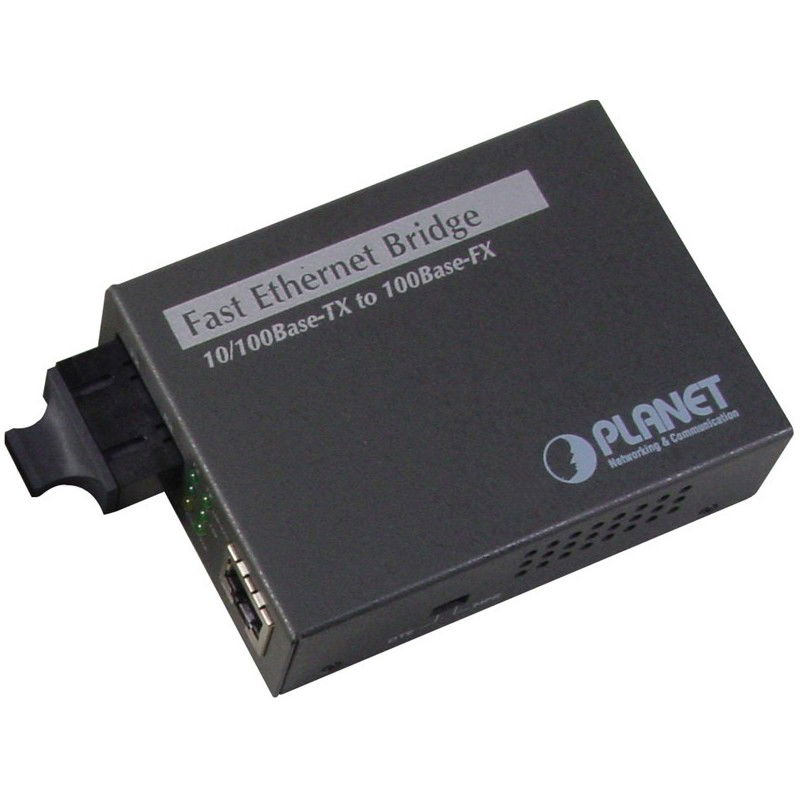

100Mbit fiber media converter to RJ45, Single Mode
1 x RJ45 10 / 100Mbit | 1 x SC 100Mbit Singlemode
1310nm
up to 35 km
Ethernet for single mode fiber converter.
Ethernet for 100 Mbit fiber with SC plug.
10/100/1000Base-TX to 1000Base-LX
1310 nm, Single Mode
Up to 10 km
Uses singlemode fiber cable (9/125 µm)
Only for 1000Mbit fiber, Single Mode
WDN media converter for 1-core fiber, Singlemode SC.
1 x RJ45 10/100 / 1000Base-TX | 1 x 1-core (simples) single mode fiber with SC
Must be used with ETH-RJ45G-WDM SA
Up to 15 km
WDM wavelenght-division-multiplexing - only for simplex fiber cable
Must be WDM converter at both ends of the fiber
10/100 / 1000Base-TX for 1000Base-LX single mode, 15km
WDM wavelength-division-multiplexing - Simplex fiber cable only
Must be WDM convert at both ends of the fiber.
10/100/1000Base-TX til 1000Base-LX, 1550 nm, Single Mode, 50 km
Kun til 1000Mbit fiber, Single Mode
