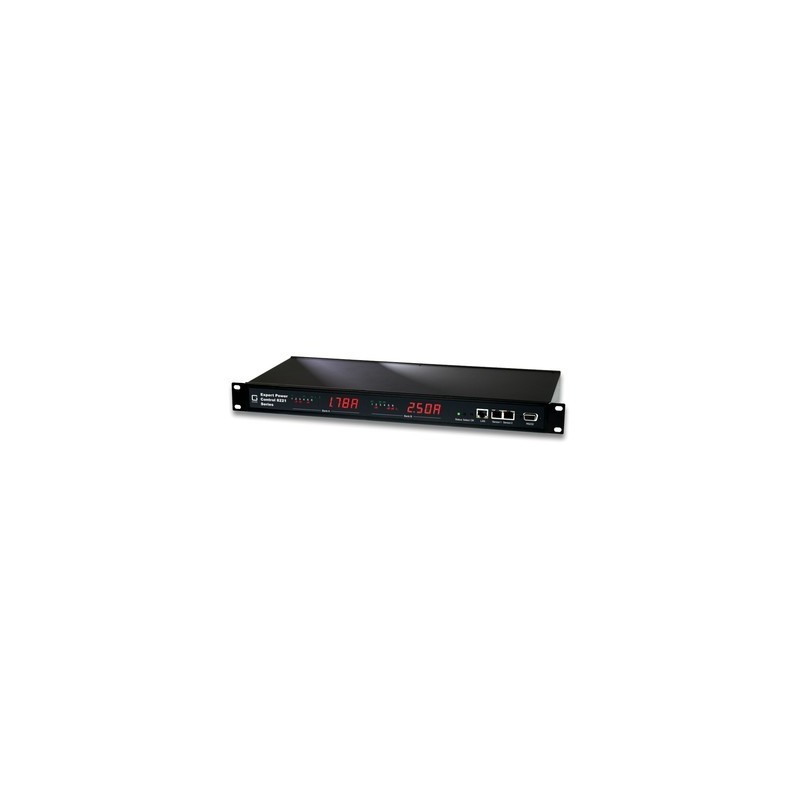

12 port PDU with individual on / off and assembled power meter via network
19 "rack mount, 1U
2 x power supply with 230V, 16A
User interface via web browser with Password
Scheduled on / drain per port
Programmable sequential power up
12 x IEC C13 outputs, max. 10A
2 x inputs for temperature and temperature / humidity sensor with alarm
12 x Watchdog with ping for each connected PC
SNMP Get / Traps and Email Support
Supports Iphone and Android
NPOWER12-8221 enables turning on and off and measuring on electrical devices through TCP / IP networks or serial interfaces. 12 x IEC C13 outputs (max. 10 A) are integrated on the rear panel. These power ports can be controlled individually via Web interface, serial interface, SNMP or a push button directly on the device. Sensor inputs allow for ambient temperature and humidity monitoring. Temperature and temperature / humidity sensors with Mini-DIN connectors available.
temperatur og fugt føler, kan måle i vådt miljø
Sensor registreres automatisk (plug-and-play)
Længde: 2,3 m med RJ45 interface
-20 ° C til +80 ° C
Box temperature and humidity sensor for wall mounting
Sensor detected automatically
Can be connected with RJ45 STP cable up to 40 meters from the control
Temperature and humidity range: -20 ° C to + 80 ° C, + / -0.5 ° C, 0 to 90% rH, +/- 3%
4 ports PDU med samlet strømmåler via netværk
Med reststrømsmåling type A.
19" rackmontering, 1U
Måling af energi og elektriske dimensioner
Integreret Hotswap skuffe til udskiftning af processor/strømforsyning under drift
Måling af 2 resp. 4 separate faser
4 x IEC C13 udgange 14A
3 x RJ45, LAN og Sensor
4 x IEC C20 Strømforsyning 16A
SNMP Get/traps
8 Port Networked PDU with Individual On / Off
19 "Rack Mount, 1U
User Interface via Web Browser with Password
Scheduled on / off per port
Programmable Sequential Power Up
8 x IEC C13 outputs, max. 10A - front mounted plug
2 x inputs for temperature and temperature / humidity sensor with alarm
8 x Watchdog with ping of each connected PC
SNMP Get / traps and e- mail support
Supports Iphone and Android
Power distribution device for on and off of 8 x 230vac
monitoring of total power consumption, temperature.
with slave devices Connected: Up to 128 outlets.
Intelligent 8 ports Power Distribution Unit
Justerbar sekventiel tænd / sluk
Samlet strømovervågning
Samlet spændingsindgang
Outputovervågning
Total brugt kWh
Effektfaktorgenkendelse
Driftstemperatur: Op til +55°C
8 x låsbar IEC-C13 netudtag
120 - 240VAC
Styr op til 3 PDU slaver fra en master
1 x C20 16Amp
Sensor for temperatur- og fugtighedsalarm
Alarm for vand via infrarød sensor
Røgdetektor
Automatiske alarmmeddelelser
