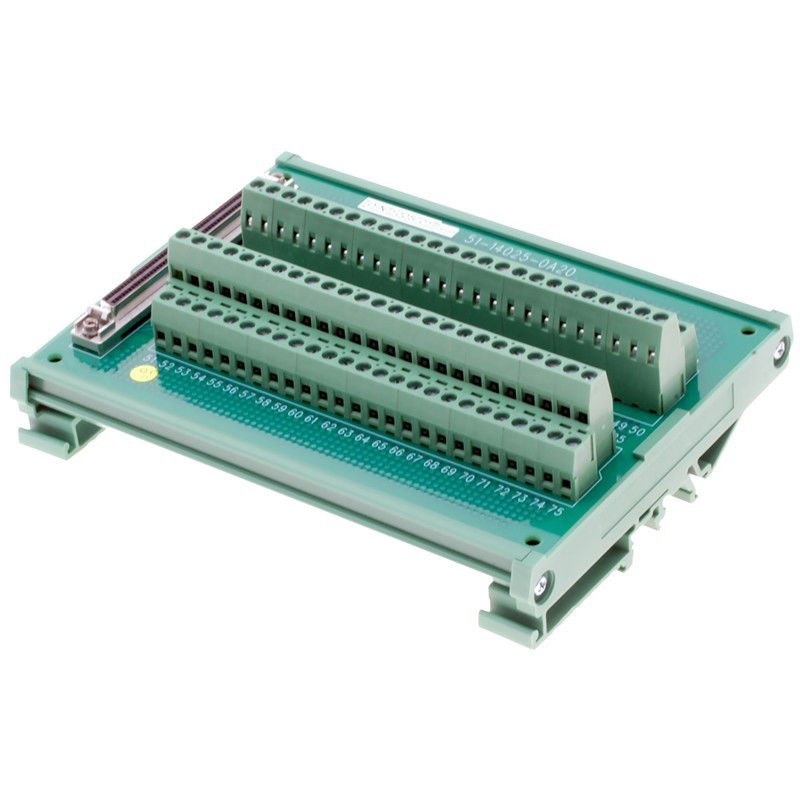

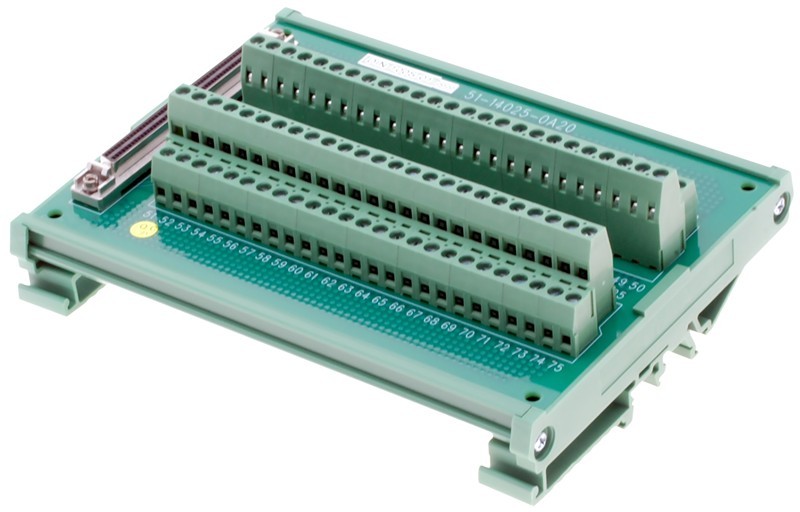

100 screw terminal terminals
1 x 100 pin SCSI-II connector
For DIN rail mounting
Cable available as an accessory
158 x 120 x 52 mm (B x L x H)
Universal terminal card with screw terminals for easy wiring
1 meter kabel til brug mellem I/O-kort og TERM100S
3,0 meter kabel til brug mellem I/O-kort og TERM100S
5,0 meter kabel til brug mellem I/O-kort og TERM100S
DB9 female connector
RS232 with terminal block screw terminals 1-9 Kirke RS232 / 485/422
D-SUB 9pin
3x 4.7 x 1.8 cm (4.7cm from front of DB9 connector to back of PCB)
24 pcs shift relay (COM, NC, NO) 250VAC and 24VDC 1Amp - 24 LEDs show relay position
Control of TTL signal (+ 5VDC is relay ON)
Supplied with +24 VDC externally
Plugs: IDC50
Dimensions: 130 x 220 mm (W x D)
Terminal cards with 25 and 10 screw terminals
DIN-Rail Mounting
9-pin D-sub connector
25-pin D-sub connector
Pin to Pin screw terminal
Dimension: 148mm x 76mm
Adlink DIN-50S-01 (G)
Terminal card with screw terminals
50 pin SCSI II female connector
For DIN rail mounting
125 x 85 x 50 mm (W x L x H)
