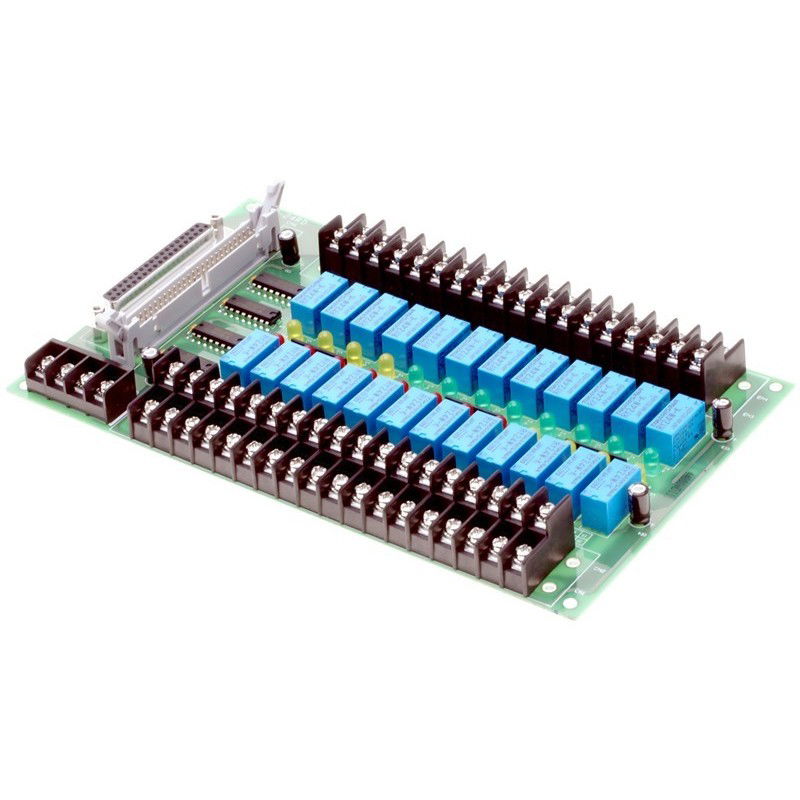

Interface terminal card with 24 switching relay outputs 250V, 1A - DANBIT

Terminal board with 24 x switching relay outputs 250VAC / 1A and 24VDC / 1A, DB37 and IDC50

24 channel relay output terminal card
24 x relay relay
50-pin Opto-22 plug
Dimension: 220mm X 130mm

3,061.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number TERM24R
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Indikatorer og kontakter 24 lysdioder viser relæstilling
Stik IDC 50 han og DB 37 hun
Dimensioner 130 x 220 mm

The terminal cards are supplied incl. 1.4 m cable with 2 x IDC50 connectors

As an external power supply, the DC24V2A-D can be used
