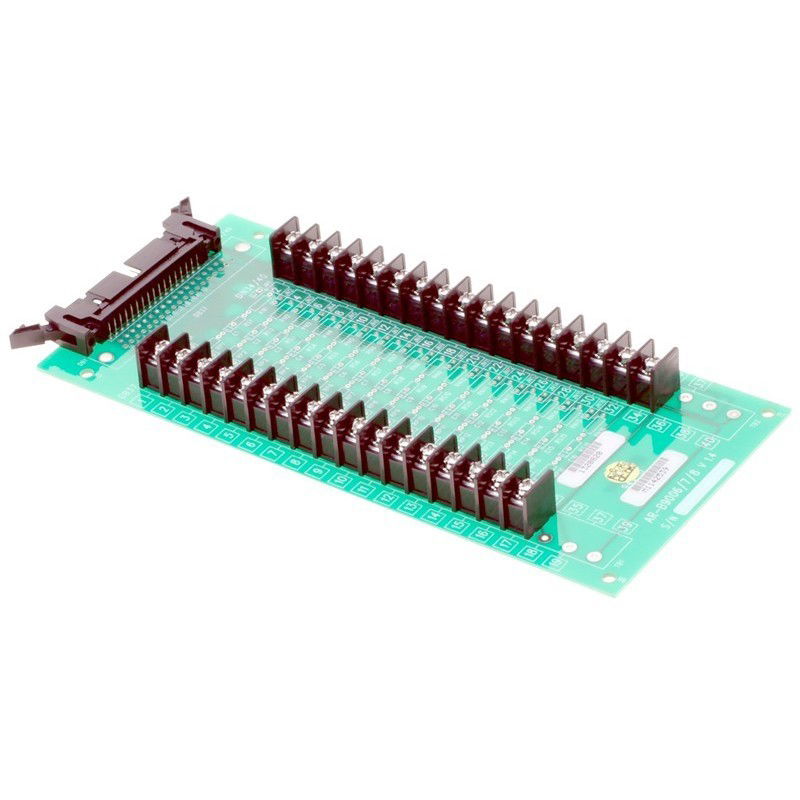

Terminal card with screw terminals
IDC 34 male flat cable of 0.5m included
For DIN rail mounting
195 x 90 mm (W x L)

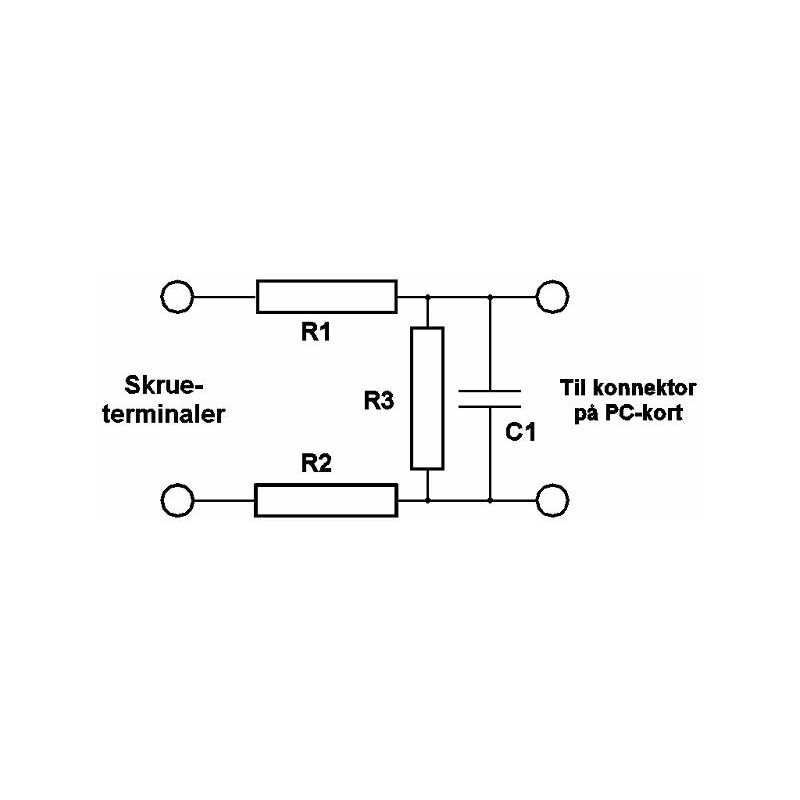

For each pair of cables, there is room for 4 components on the circuit board as shown here. At delivery, R1 and R2 of 0 Ohm and R3 and C1 are not mounted. Here, for example. mount voltage dividers, low-pass filters, shunt resistors for current measurement, overvoltage protection, current limiters etc.
Incl. ½ m flat cable
Adlink DIN-50P-01
Terminal Boards
On-board Connector
1 x 50-pin SCSI II
103 x 85 x 43 mm (W x L x H)
Terminal board with 2 x 13 screw terminals
DB26HD female connector
2 rows of screw terminals
Interface Terminal board with 24 x power relay
8 switch relay
16 x connect relay
incl. 1.4 m cable with 2 x IDC50 connectors
Dimension: 130 x 220 mm
24 pcs shift relay (COM, NC, NO) 250VAC and 24VDC 1Amp - 24 LEDs show relay position
Control of TTL signal (+ 5VDC is relay ON)
Supplied with +24 VDC externally
Plugs: IDC50
Dimensions: 130 x 220 mm (W x D)
