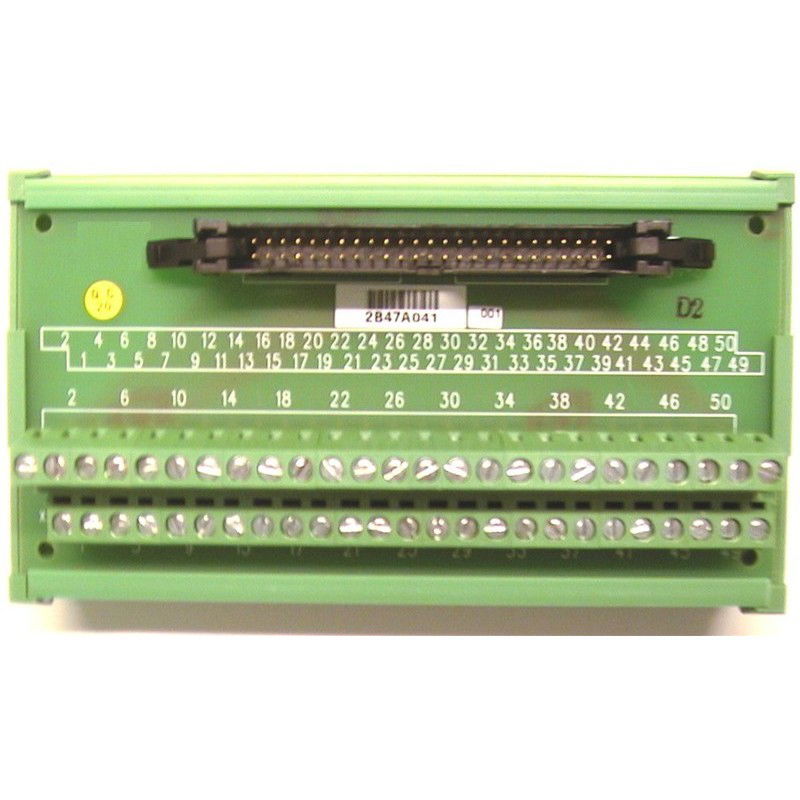

Adlink DIN-50P-01
Terminal Boards
On-board Connector
1 x 50-pin SCSI II
103 x 85 x 43 mm (W x L x H)
Incl. ½ m flat cable
Terminal board with 2 x 13 screw terminals
DB26HD female connector
2 rows of screw terminals
Terminal card with 37 pcs. screw terminals
Have both DB37 male and female connectors
To DIN rail mounting
Included cable of 30cm
24 channel relay output terminal card
24 x relay relay
50-pin Opto-22 plug
Dimension: 220mm X 130mm
DB9 male connector
RS232 with 9 pins and screw terminals. RS232 / 485/422
D-SUB 9pin
3 x 4.7 x 1.8 cm (4.7 cm from the front of the DB9 connector to the back of the PCB)
