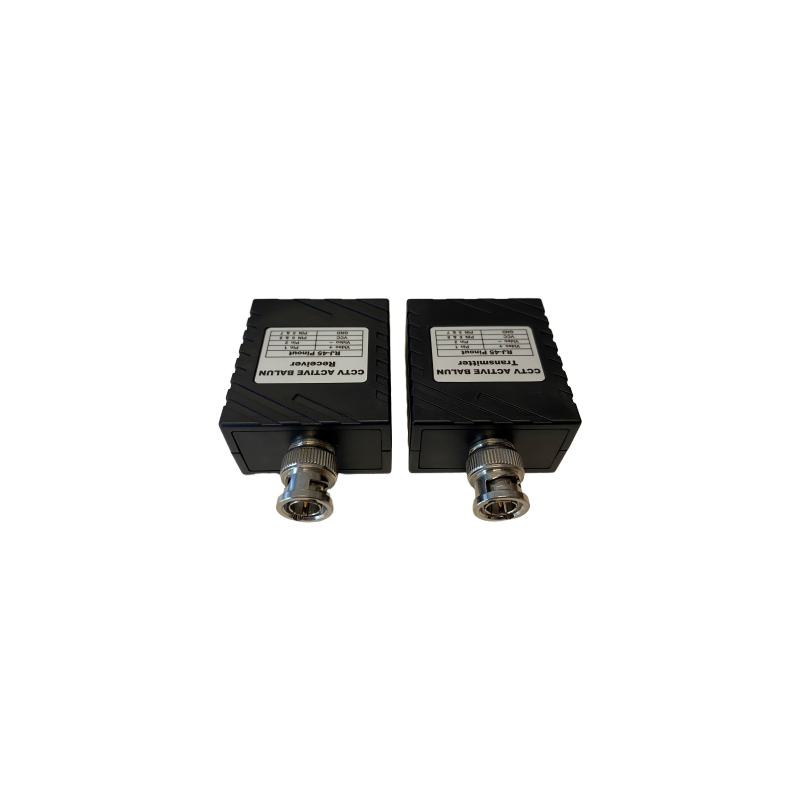

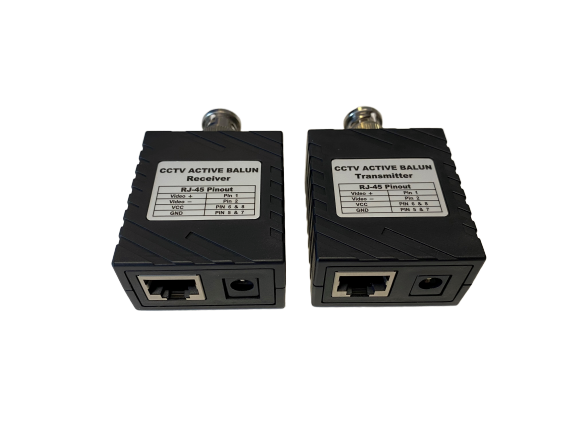

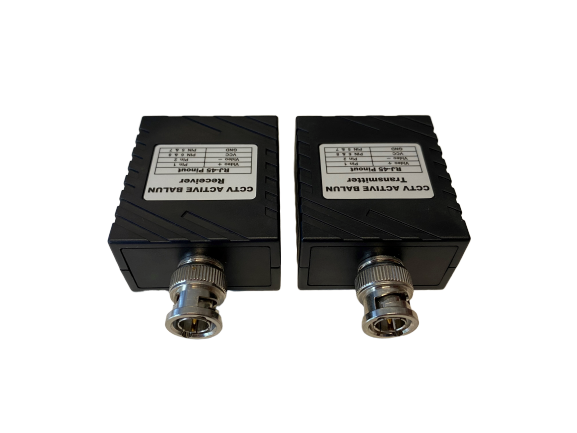

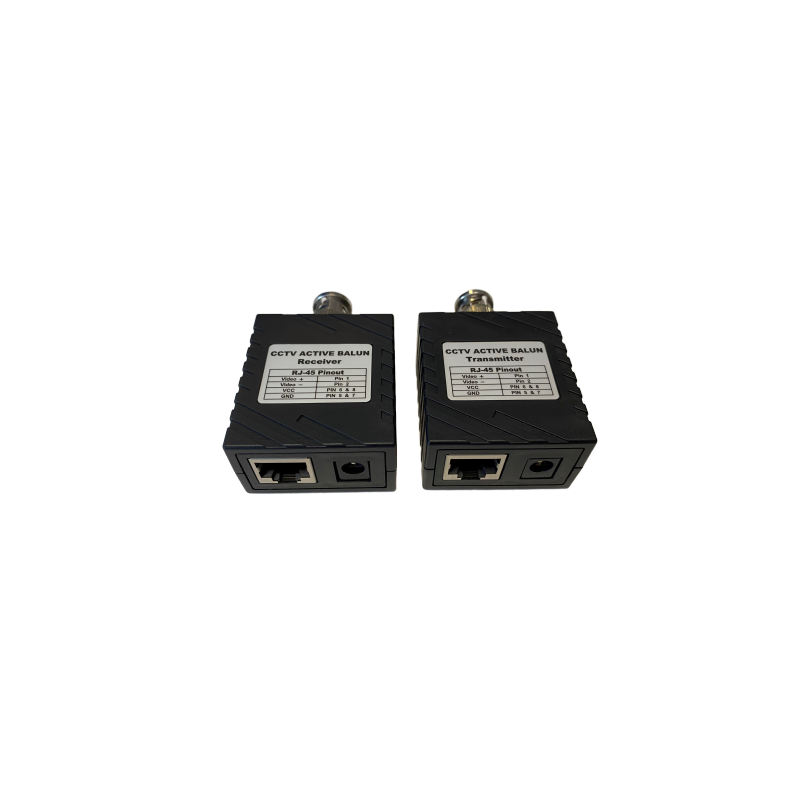

Video over BNC, 1 x video up to 1500 meters, set of 2. Power supply with 12VDC

Bandwidth: DC to 8MHz
Impedance: BNC male: 75 ohms
RJ45: 100hm
Cable UTP: 24 AWG or smaller
Max distance: 1500 meters
Operating temperature: 0 - 55 C
1 x BNC male connector per box
1 x RJ45 female connector per box
Supply voltage: 12V DC/60mA (not included)
Dimensions: 22 x 78 x 75 mm

461.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number KAM-BNC-RJ45
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Båndbredde DC to 8MHz
I/O 1 x BNC han pr. boks, 1 x RJ45 pr. boks.
Kabel 24 AWG or lower solid copper UTP：Impedance：100 ohms at 1MHz Max. Capacitance：20 pf/ft
Strømforsyning 12VDC, 60mA. PSU medfølger ikke
Tilbehør sæt med 2 bokse

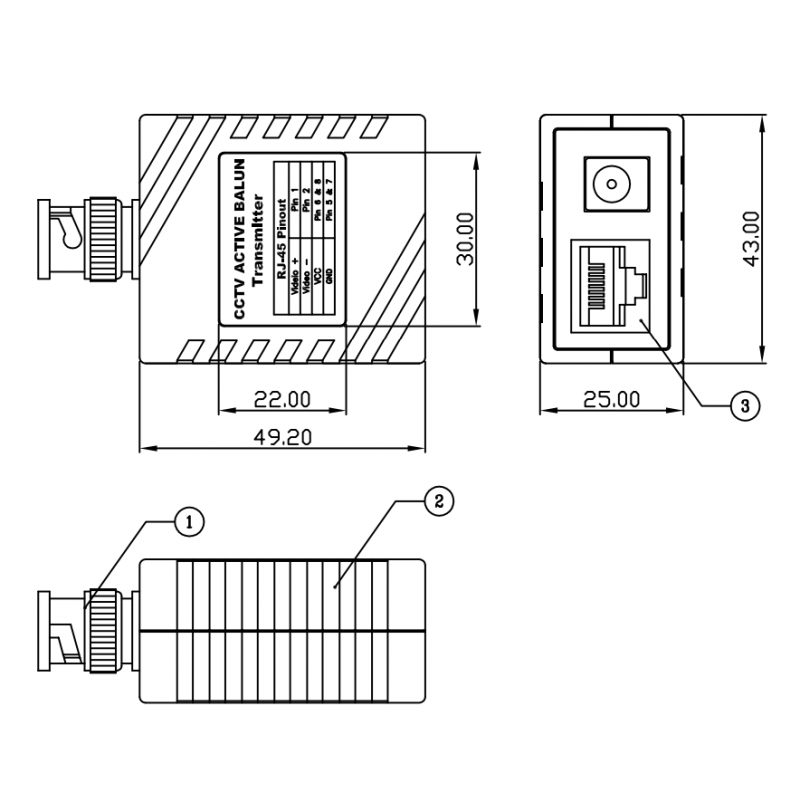

Dimensioner 22 x 78 x 75 mm

Contains 2 modules for transferring analog video signals from e.g. surveillance cameras up to 1500 meters. The transmitter and receiver are connected with an ordinary, straight UTP/STP network cable with an RJ45 connector. The video signal is fed in from a BNC connector at one end and pulled out via a BNC connector at the other end. Thus, video signals are transmitted via one network cable - largely without quality loss.

Power supply Mains adapter from 100 - 240VAC to 12VDC 1.5Amp.
12VDC 1.5Amp (18Watt) power adapter from 110 - 240VAC, plug 5.5 / 2.1mm

Mains adapter - switch mode type

 110-240 VAC to 12VDC/1.5A

 DC plug: 5.5/2.1 mm

1 meter cable

125.00 kr
Item Number: DC12V/1.5A-R-Q
Physically in stock
ADD TO CART
Quick view

Other products in same category:

Advanced IP/ PTZ Camera Keyboard with 4D Joystick Control
IP / PTZ camera keyboard with 4D joystick

Network control with independent IP address
Support for ONVIF
5 inch Industrial LCD screen
Resolution 800*480, Image Decoding, Real-time Monitoring
4D Joystick Control PTZ Function
Preset patrol pattern and AB scanning
Web setting
Button for zoom and control speed
PoE

Call +45 56 66 20 20 for price
Item Number: KAM-IO-PTZ
On the way in
ADD TO CART
Quick view
Service monitor for Analog surveillance camera
Professional 5" service monitor for Analog camera setup. Built-in battery. With BNC, HDMI, VGA, 12VDC out

Portable Service monitor
AHD / TVI / CVI / CVBS coax in and out, HDMI in, VGA in. PAL / NTSC
12VDC 1A output for camera
800 x 480 (5: 3) 5 "TFT color screen.
Supports Pan-Tilt-Zoom Pelco-D / P PTZ via RS485
Supply: 5VDC via Micro USB-B connector.
5200 mAh battery, up to 11 hours battery life
Suitable for camera installers
Some IP cameras have CCTV output (BNC)
Cannot be used for IP cameras without BNC

1,450.00 kr
Item Number: MON5-S
Physically in stock
ADD TO CART
Quick view
Lens 5 - 50 mm mega pixel lens, automatic aperture, CSA Mount
Lens 5 - 50 mm mega pixel lens, automatic aperture, CSA Mount

5 - 50 mm Mega Pixel VariFocal Lens, CSA Mount

1,610.00 kr
Item Number: KAM-LINS5-50M
Physically in stock
ADD TO CART
Quick view
Wall bracket for outdoor camera. Universal foot for surveillance camera
Wall bracket for outdoor camera. Universal foot for surveillance camera. Length 29 cm. Lacquered aluminum

Outdoor camera holder / bracket in aluminum
camera plate with turn and tilt

180.00 kr
Item Number: KAM-FOD-U
Physically in stock
ADD TO CART
Quick view

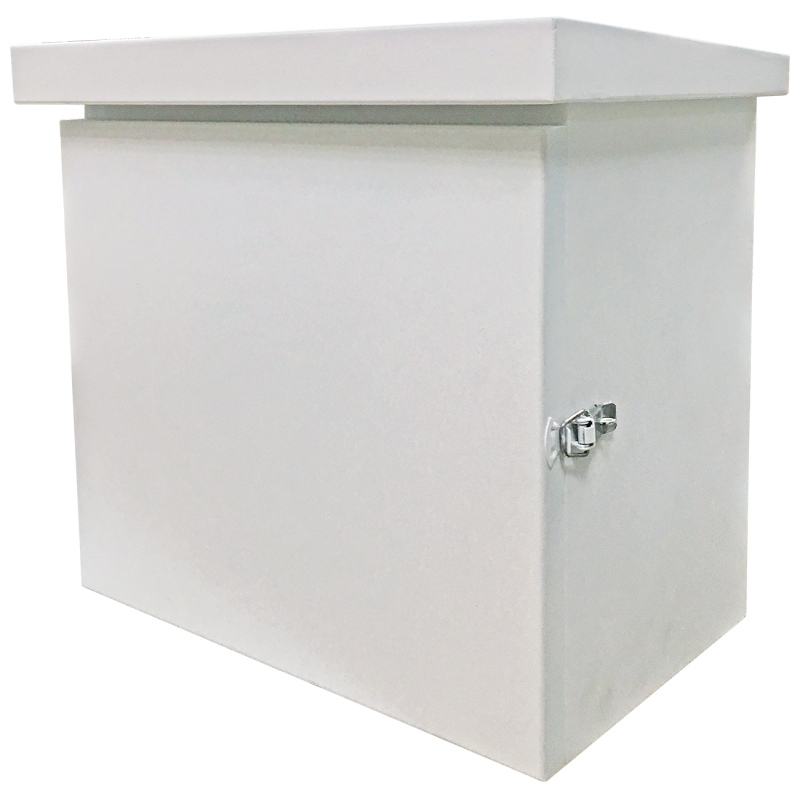

Outdoor cabinet for PoE cameras, AP and other PoE devices
Outdoor all-weather network kabinet with UPS function built-in

Compact design
Output 54VDC vlotage for PoE device use
Space for PoE switch / PoE Surge protector installation
IP66 rated
Include Thermal Switch control heater and blower
Include fiber panel for fiber cable connection
Battery protection for deep discharge and short circuit
Space for 12V/7Ah Battery x 4PCS

Call +45 56 66 20 20 for price
Item Number: KAB-POE-U
On the way in
ADD TO CART
Quick view
16 port 12VDC, 8 Amp Multi 12VDC power supply box with 16 outputs for rack mounting
16 port 12VDC, 8 Amp power supply box for rack. Built-in automatic fuse at max. 1.1 Amp per port

19" Rack power supply with 16 12 volt outlets
Output current per port: 0.5Amp
Total power consumption: 8 Amps (96 Watts)
Fuseless current limiter per port max. 1.1Amp
Built-in PTC as short-circuit protection
120 - 230VAC input
Screw terminals
Dimensions: 437 x 170 x 44 mm
Weight: 2.6kg
Operating temperature: -10 - +45°C

1,923.00 kr
Item Number: DC12V-16P-R
On the way in
ADD TO CART
Quick view
1 m Camera Probe Ø9 mm for KAM-INSP-DVR – 640×480
Camera Probe 1 m (Ø9 mm) – 640×480 Resolution

1 m probe length for moderate inspection reach

Slim 9 mm diameter to navigate tight spaces

Delivers 640 × 480 pixel video resolution

Compatible as a module for KAM-INSP-DVR systems

Useful for short-reach inspections in pipes, machinery, wall cavities, etc.

Replacement/extension option for system flexibility

538.00 kr
Item Number: KAM-INSP-DVR9T1
Physically in stock
ADD TO CART
Quick view

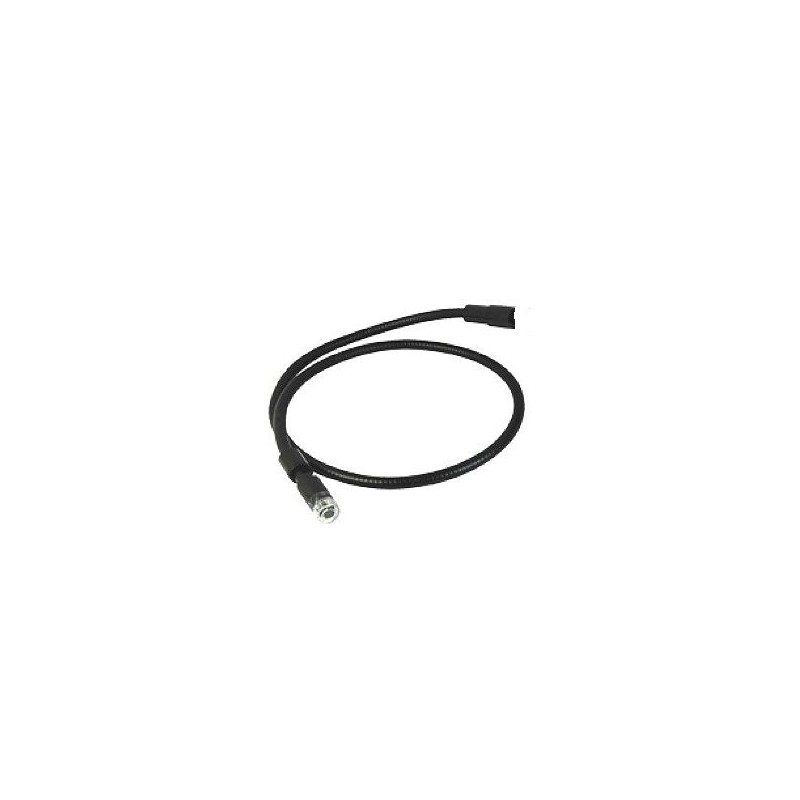

2 m 9 mm Camera Probe for KAM-INSP-DVR – 640×480
