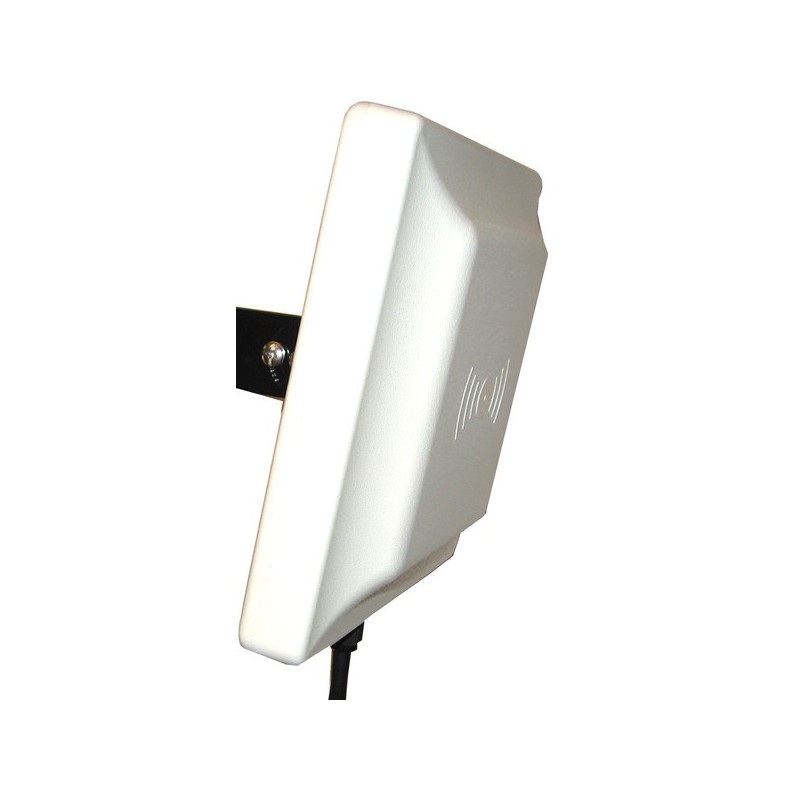

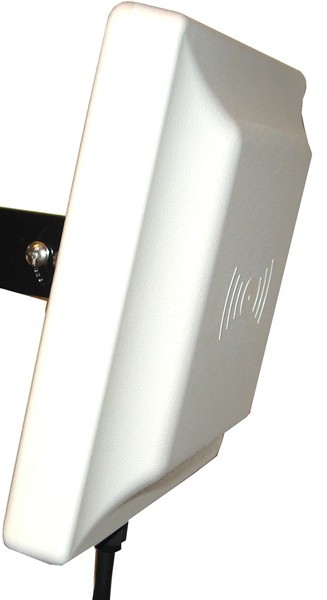

UHF 865MHz RFID reader, outdoor, with 2 - 5 m reading distance, for passive UHF TAGs, COM port, SDK

For passive UHF tags 865MHz
Supports ISO18000-6B, ISO18000-6C
RF power: 0.1 - 1 Watt
TAG reading is controlled via software commands
Interface: RS232, RS485 and Wiegand 26/32
Circular polarized antenna
RS-232, RS-485, Wiegand 26Bits/32Bits
5V DC power supply / 2 Watt
Dimensions: 220 x 220 x 50 mm
Weight: 1.5 kg
IP65

RFID865+
4,305.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

UHF RFID reader for passive UHF Tags. The UHF reader emits UHF radio waves which cause the RFID TAG's antenna to give so much signal that the chip in the TAG comes to life.
The TAG now emits its factory-programmed code UID. The code is used by the reader to identify who the TAG belongs to.
Demo software and SDK are included to be able to develop late software that must do what the RFID reader needs to do in the system.

Dimensioner
215 ´ 215 ´ 60 mm
Driftstemperatur
-35 til +65 °C
Forsyning
12 VDC, 2 A. 230VAC adapter medfølger
Frekvens
865-868 MHz
Hastighed
Op til 30 km/t på tværs af læsefelt
Interface
RS232, RS485 og Wiegand 26/34
Max læseafstand
Typisk 2 – 4 m, mere under ideelle forhold
Miljø
IP54 tæthed. Egnet til udendørs brug
Montering
Rørbeslag, justerbart horisontalt og vertikalt
Vertikal spredning
70°
