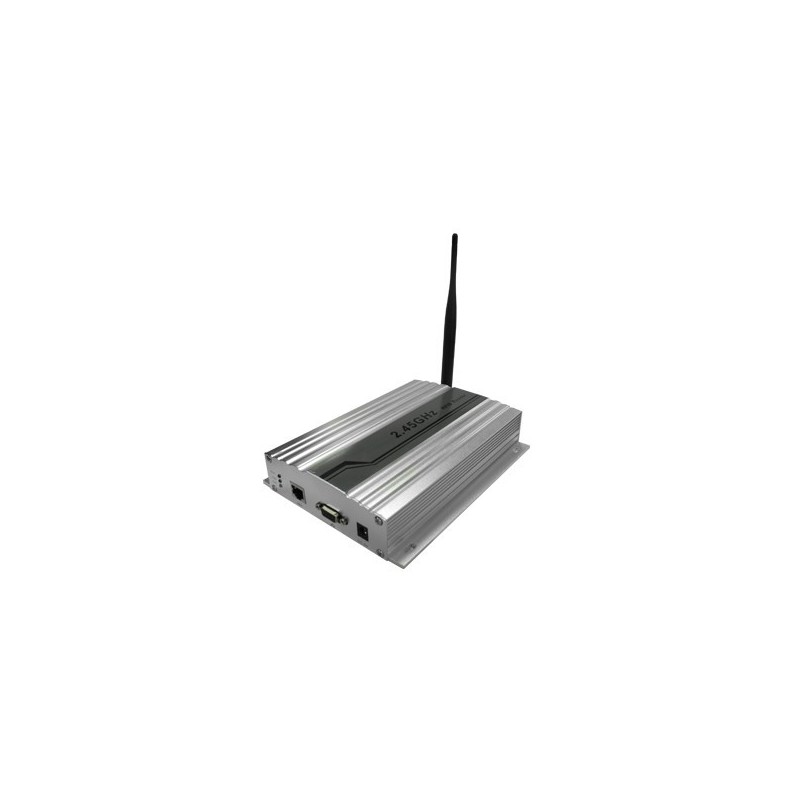

2.4GHz RFID reader with up to 200 meter range - for active TAGS with battery, for positioning

2.4GHz RFID reader with up to 200 meters
Omni-directional (SMA)
RS232, 10 / 100M Ethernet interface
Optional: GPRS or WIFI
Optional: 2 channel relay, 2 channel trigger input
Development kit (C ++, C #)
Compatible with active and passive tags
0-100m radius (depends on power output)
can identify 300 tags time-consuming
IP65
DC 5V power supply, 300mW
dimensions: 190mm × 120mm × 40mm without antenna
Dimensions: 320mm × 226mm × 133mm with antenna
Weight: 2 KG
Operating temperature: -40 ℃ ~ + 60 ℃
API interface for fast integration with existing software

RFID24OMNI
2,079.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

RFID24OMNIer a long-range RFID reader. It can read tags up to 200 meters away, and can be read through walls and windows without problems. There is provided software for reading the tags, and also development kit software interface. For RFID24OMN Ier several tags.RFID24TAG metal can be mounted on the metal surfaces, and RFID24TAG-TEMP has built-in temperature sensor.

Antenne
Rundstrålende (omnidirektionel)
Dimensioner
40x120x190mm (H x B x D) (Eksklusiv antenne) Vægt: 600g
Driftstemperatur
-40 til +80 °C
Forsyning
5V DC (medfølger)
Frekvens
2,40 – 2,48 GHz
Interface
Ethernet kabel og COM-port kabel
Læseafstand
Op til 200 meter afhængig af udsyn
Software
Bootloader, API Interface Development Kit, Reader Management Software.
