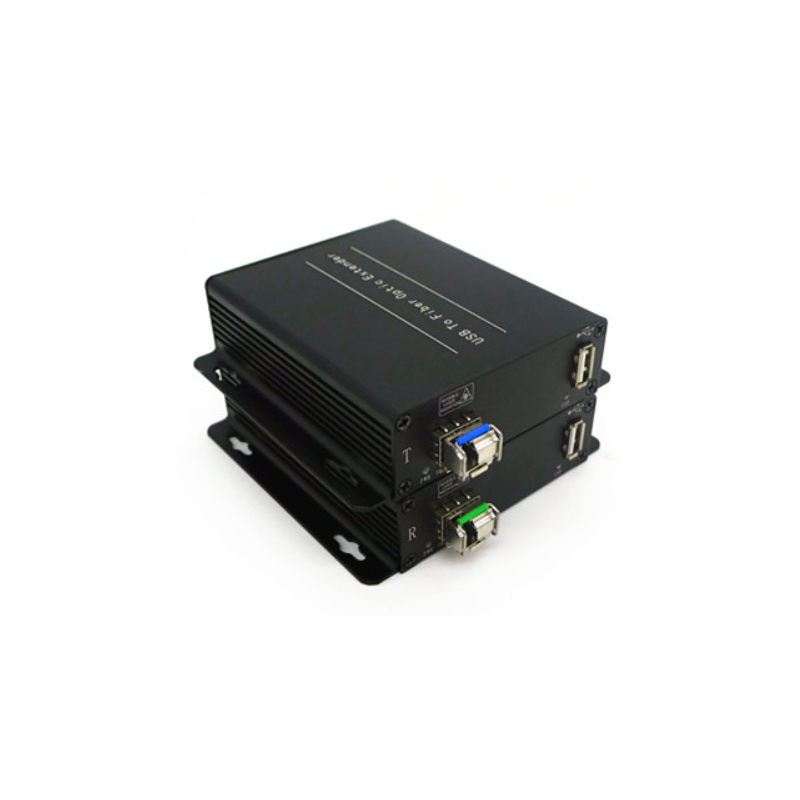

USB 3.0 Fiber Extender up to 250 meters, for SFP module, duplex fiber, LC

Include a transmitter and receiver
USB 3.0 type-A (not compatible with USB 1.1, 2.0)
Up to 250 meters in distance (single or multimode)
Duplex LC (single or multimode) < br> USB 3.0 5Gbps bandwidth
Plug and play (no driver or software needed)
Optical wavelength: 1310 nm / 1550 nm
Material: Aluminum
Dimensions: 104 x 104 x 28mm Weight
: 0.7 kg
Supply voltage: 5V DC
Operating Temperature: 0 to 50 degrees

6,125.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number BOOST-USB-FIBER250M
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

USB USb 3.0 (ikke kompatibel med 1.1 og 2.0)
Operating Temp. 0 ° C to 50 ° C
Fiber Optisk duplex fiber, LC<br>1310 nm / 1550 nm
Forsyning 5 V DC
Luftfugtighed 0-95% (no condensation)
Compositions Aluminun
Weight 0.7Kg
Dimensioner 104 x 104 x 28mm

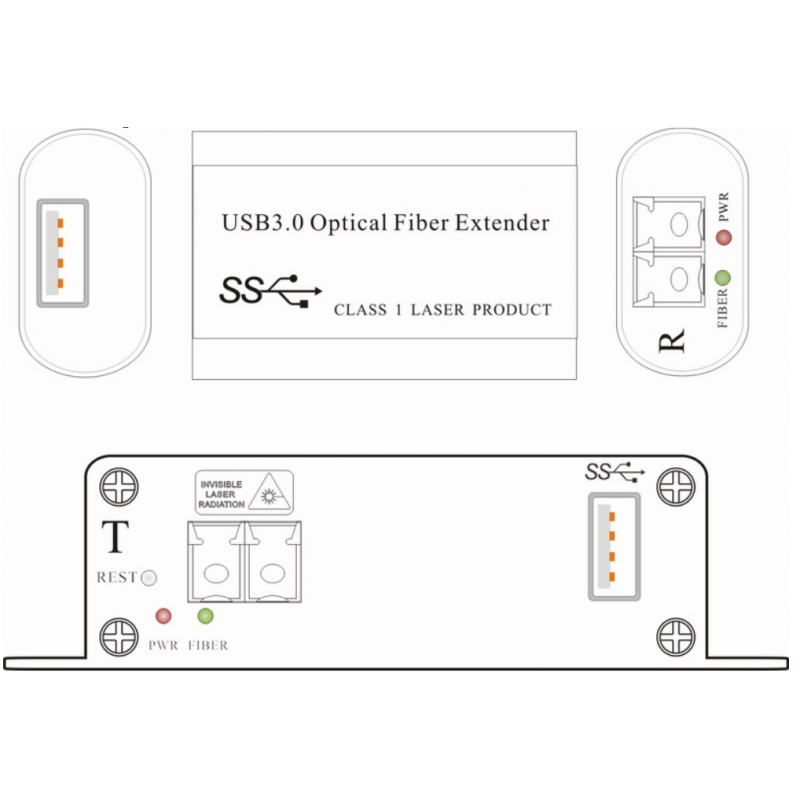

USB 3.0 Optical fiber extender. Two-core or a core fiber up to 5 Gbps USB3.0 Superspeed high-speed signal transmission distance extended up to 250 meters. Extender at the transmitter (the recipient R) and the reciever (transmitter T) is composed of two parts. Products can be used for video conferences, release of multimedia information, government departments, medical systems, commercial displays, security surveillance, public utilities.

1000Mbit SFP module 1000Base-SX, DMM Multi Mode LC. Multimode mini GBIC
1000Mbit SFP module 1000Base-SX, DMM, Multi Mode LC, up to 2km with 50my fiber cable

MiniGBIC/SFP optical transceiver

LC fiber cables, 1310nm

Up to 2km with 50my fiber cable

Typically 500 meters with 62.5my

550.00 kr
Item Number: CNV-SFP1G-SX2P
Physically in stock
ADD TO CART
