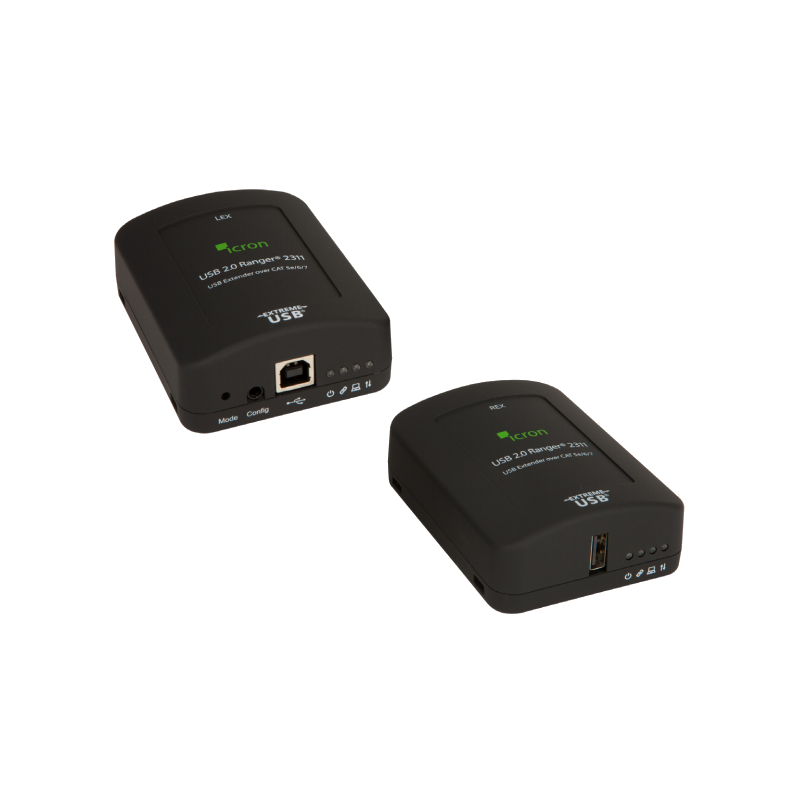

100m 1 port USB2.0 extender over RJ45 cable, 24VDC supply

Icron USB Extension - with LOCAL and remote unit
Up to 100 meters over UTP / STP Cat 5e / 6/7
USB version: USB 1.1 and 2.0
24VDC / 1A PSU incl. the remote unit
Support up to 11 USB devices from three USB Hubs

BOOST-USB100-1P
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The maximum length of a normal temperature. USB cable is 5 meters but BOOST USB100-1P is an easy option to extend it up to 100 meters between a PC and a USB device. The connection between transmitter and receiver is established with a UTP / STP netværkskabel.Tilslutning going easily, since no software is required. Multiple USB devices can be connected using hubs

Extension: Up to 100 meters

Extension cable: UTP / STP cable w / RJ45 plug

USB version: USB 1.1 and 2.0

Ports: 1 x USB A female

supply: 24 VDC 1A included

Other: Requires only supply in either local or remote module .

Extra ports: up to 11 USB devices can be connected using. up to three hubs

Accessories: USB cable for PC connection included

Dimensioner
28 x 57 x 85 mm (H x B x D)
Porte
1 x USB A hun
Tilbehør
To enheder: local og remote unit
USB
USB 2.0: up to 480 Mbps USB 1.1: up to 12 Mbps
