100m 4 port USB2.0 extender over RJ45 cable Cat 5e/6/7

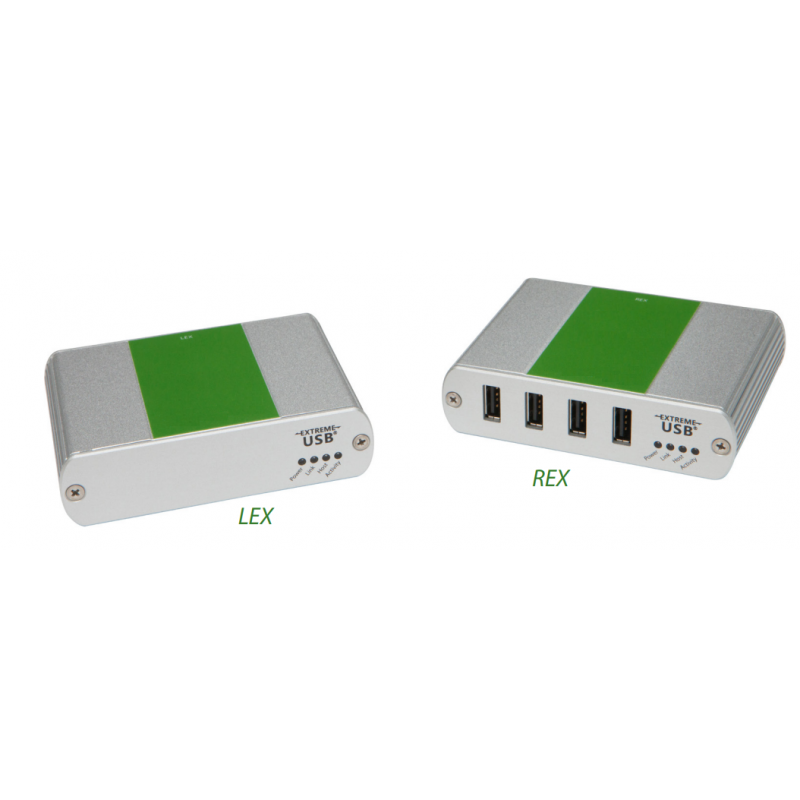

Icron USB Extension - Local Extender device and Remote Extender device
USB 2.0: Up to 480Mbps
USB 1.1: Up to 12Mbps
1 x USB-B (LEX unit)
1 x RJ45 (LEX unit) to 4 x USB-A (REX device)
1 x RJ45 (REX device)
Dimensions: 100mm x 76mm x 26mm
up to 600mA to each USB port (REX device)
Up to 100 meters above the UTP / STP to 4 x USB - version: USB 1.1 and 2.0
5VDC / 3A PSU (REX device)
Operating temperature: 0 ° C to 50 ° C,

BOOST-USB100-4
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The maximum length of the regular. USB cable is five meters, one increases Movie Vision DR + is a simple solution in a long length up to 100 meters between a computer and a USB device. The relationship between the sender and the creation of a UTP/TP network cable. BOOST USB100-4 works as a USB Hub as a remote module with 2.4 USB ports available. Supply is easy since no Mjukvara ÄR is required. Multiple USB devices connected using Hubbar

Length: Up to 100 meters

Extension cable: UTP / STP cable with RJ45 connectors

USB version: USB 1.1 and 2.0

Port: 4 x USB A female

Supply: supplies 5 VDC 3 A

Overview: Kräver can be delivered in a remote module. Up to 11 USB devices connected to the VHA. up to 3 hubs

Additional port: Up to 11 USB devices connected to VHA. up to 3 hubs

Accessories: USB cable for PC connection included

Certifications
FCC (Class B), CE (Class B), RoHS2 (CE)
Data
USB 2.0 op til 480Mbps, USB 1.1 op til 12Mbps
Driftstemperatur
0°C to 50°C
I/O
1 x USB-B, 2 x RJ45, 4 x USB-A,
Length
Op til 100 meter
OS SUPPORT
Windows®, macOS™, Linux® and Chrome OS™
Porte
4 x USB A hun
Type
Plug and play
