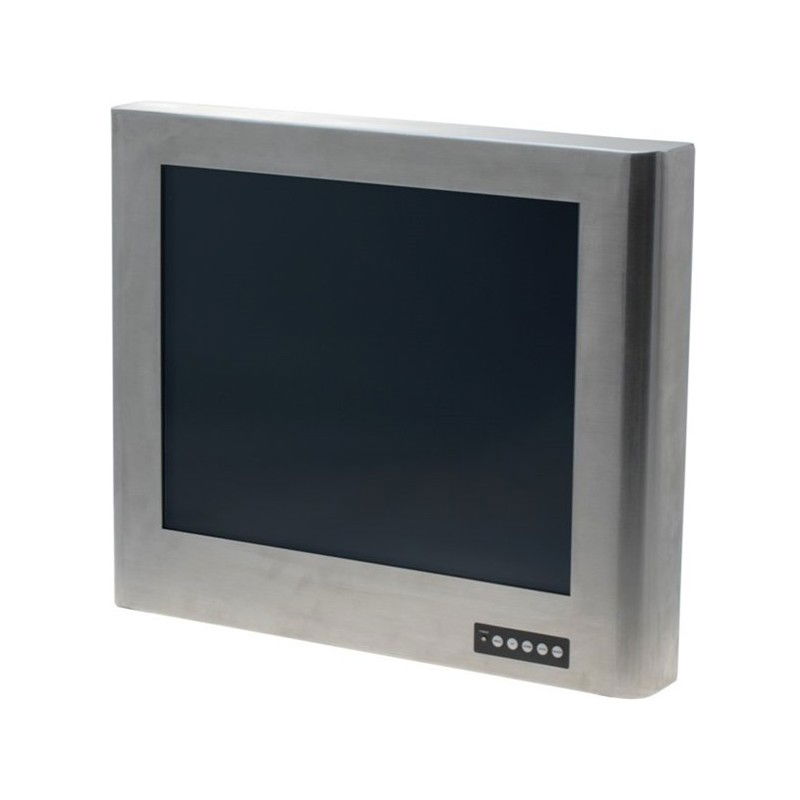

19 "TFT monitor in stainless steel cabinet, IP65 close to all sides with touch, 5: 4 format

10.1 ”LCD screen for 1 x VGA
1 x HDMI
1 x USB (touch)
PCAP multitouch (USB)
Resolution: 1280 x 800 @ 60Hz , 75Hz
Brightness: 350 nits (cd / m2)
OSD function
Contrast: 800: 1
Full IP66 / 69K and vandal proof
Operating temp. 0 - +50 C °
Supply 9-36VDC, 15W
For VESA75 or panel mounting
220 x 300 mm (H x B)

21.5 "Stainless Steel Screen
IP66 Near Standard 250 Nits (Available with 1000nits On Ordering)
M12 Connector VGA / HDMI
Speaker IP65 2W
M12 Connecotrs
Projcted Capacitive Touch
OSD on back
Vesa Mount 100x100mm (Option Yoke Mounting)
DC 9 ~ 36V
571x362x55mm

17 "TFT monitor - stainless steel cabinet
full IP67
Touch
1280 x 1024 - 5:4 format
Brightness 300 cd/m²
VGA, DB15HD
VESA75
450 x 378 x 62 mm (H x W x D)
Weight: 7.5 kg
Supply voltage: 12VDC
230V AC / 12V DC / 1.5A PSU incl.
Special cables with IP67 sealed connectors are included.

19 "TFT monitor, chemical resistant steel cabinet
Touch display (RS232)
1280 x 1024 - 5: 4 format
Brightness 400 cd / m²
VGA (DB15HD connector)
480x400x61 mm (HXWXD)
230V AC / 12V DC / 4.16A PSU included
VGA and DB9 cable included

8.4" TFT screen in 4:3 format

for industrial purposes - Very robust

mounting in panel, on wall or in rack cabinets

VESA 75 mounting holes

Dim - Outline: 264 x 189 x 56 mm

Dim - Cutout: 220 x 160 mm

Cabinet: Metal

12VDC

17 "waterproof IP66 all around closely monitor steel cabinet
Projected Capacitive Touch (USB)
Resolution 1280 x 1024 to 5: 4 format
350 Nits
1 x VGA M12, 12-pin cable with waterproof jacket
1 x waterproof HDMI with waterproof jacket
1 x buttons on the back
1 x M12 USB touch with waterproof jacket
1 x Power input 9-36V DC, with on / off button on the side
VESA 75 x 75 mounting
Option acquisitions: available with capacitive touch with USB interface
Option acquisitions: available with 316 stainless steel cabinet

Industrial 19" rack LCD monitor 18.9"

Standard 18.9" resolution 1440x900 (OPTION! 17.3" 1920x1080)

9U 18.9” LCD panel

Front tempered protective glass

High contrast ratio and wide viewing angle for high screen quality

3mm aluminum front cover

Front OSD button for direct display adjustment

Support SUN native resolution

Optional Touchscreen function

Optional DVI-D and HDMI inputs

Optional DC input power 24Vdc,

Optional 7.3” LCD panel contact sales department

17 "slimline industrial LCD monitor in steel cabinet
1280 x 1024 - 5: 4 format
OSD
Touch
For panel and VESA mounting
DC12V w / external AC-DC adapter ( 100-240V)
