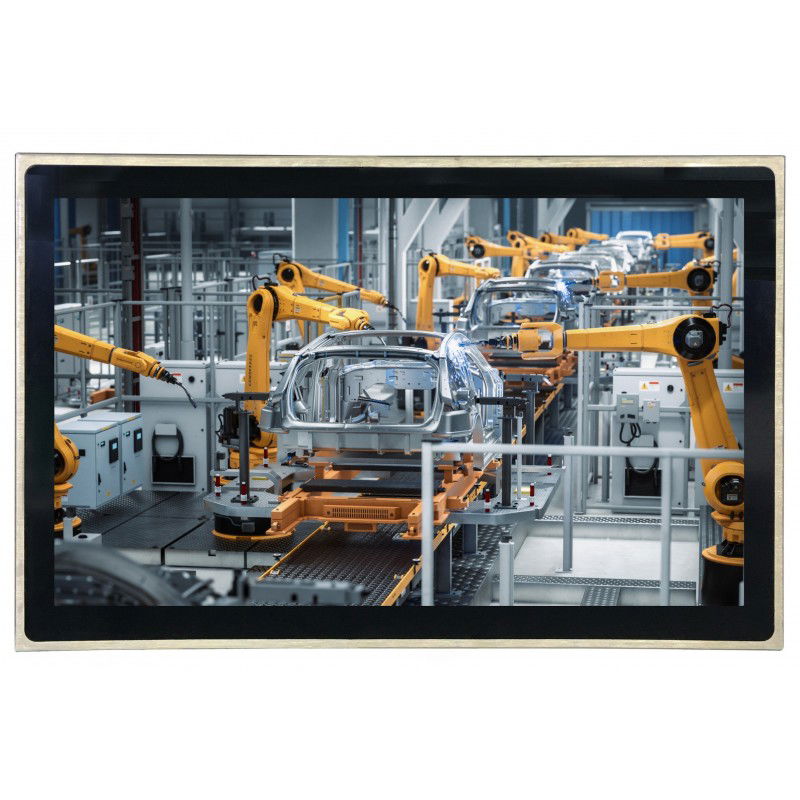

15.6” industrial FullIP PanelPC with resistive touch and Intel Celeron J1900 CPU

  • 15.6" PanelPC TFT-LCD with 1920x1080 resolution.
    300 cd/m² (nits) luminance.
    Contrast ratio: 500:1
    Capacitive touch
    Intel Celeron J1900 SoC (opt.: i3,i5,i7 on order contact our sales department)
  • DDR3L/DDR4 (depends on CPU)
    2 x USB port
    1 x Gigabit Ethernet.
    Robust frame in stainless steel
  • Full IP65 rating for industrial environments.
    VESA mount 100/75mm
    422,30x272,30x47mm (WxHxD)
    24Vdc
IPP15.6-J1900-FULL
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

PanelPC features a 15.6-inch TFT-LCD display, offering a 1920x1080 resolution, 300 cd/m² luminance, and a contrast ratio of 500:1. It has a resistive touch screen, with capacitive touch as an option. Powered by an Intel Celeron J1900 SoC, it supports DDR3L/DDR4 memory and comes with a variety of connectivity options including USB ports, a COM port, and Gigabit Ethernet. Its aluminum housing and full IP65 rating ensure robustness for industrial environments.

CPU
Intel® Celeron J1900 SoC Integrate / optional Core i3 i5 i7
Driftstemperatur
0 ~ 60° C
IP-Tæthed
Full IP65
Lysstyrke
300 cd/m²
Montering
Desk/wall-mounting,VESA mounting
Mål og vægt
391x253x65mm / 4.6KG
Netværk
1 x RJ45 Intel® Ethernet Connection 10/100/1000 Mbps
Opløsning
1920*1080
OS SUPPORT
Win10/Win7/Ubunt/CentOS
SATA
1 x 2.5 inch(Internal)
Skærm
15.6” (XGA) TFT-LCD
Strømforsyning
DC 12V (24V input optional)
USB
2*USB
Serial Porte
1x RS232
RAM
1 x DDR3L SO-DIMM / DDR4
