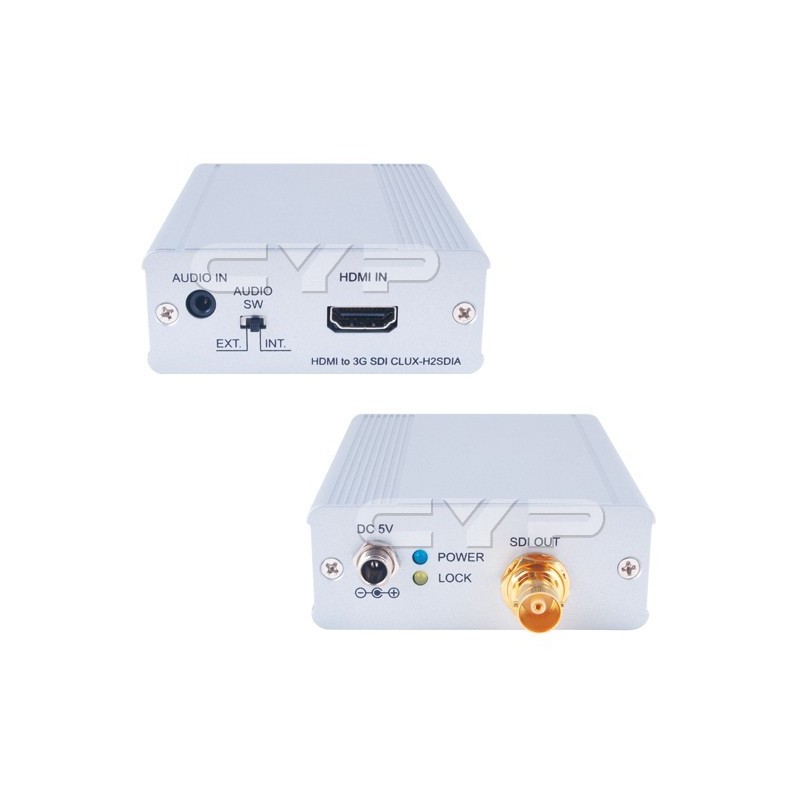

The HDMI™ to SDI Converter allows HDMI signals to be shown on an SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolutions without any signal loss. For professionals, this means it is now easier to convert your high definition HDMI signal (with audio) to SDI for long distance transmission and display your media on an SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the HDMI embedded audio, and send to the SDI output.
Shows HDMI source on SDI display
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60
Converts 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
Converts 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
Converts 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Inputs1x HDMI [1x Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack
1 x Stereo(L/R)]Outputs
1x BNC [1x 3G-SDI / HD-SDI / SD-SDI
PSU:5V/2.6A
Dimensions 78mm [W] x 124mm [D] x 30mm [H]
Net Weight198g
