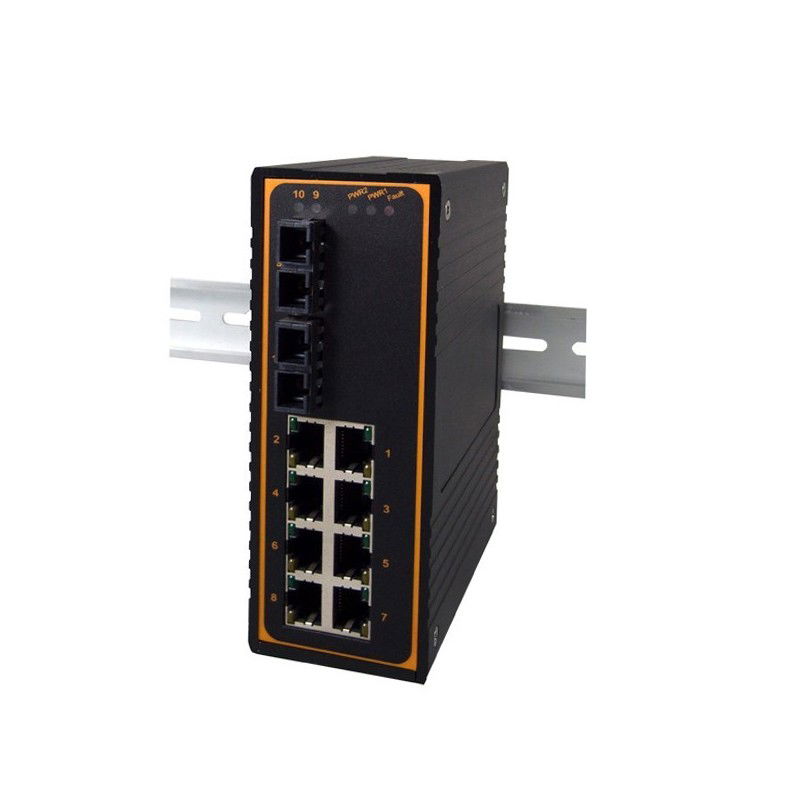

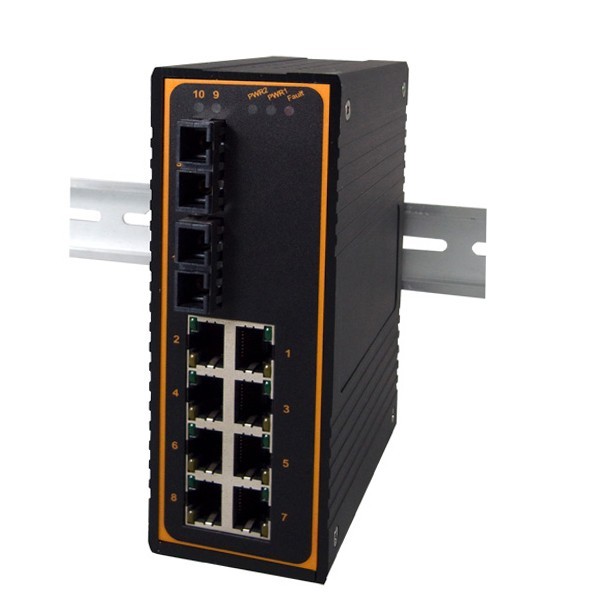

10 port switch 8 x 10 / 100Mbit RJ45 + 2 x fiber port SC Gigabit Multi Mode, Unmanaged, 12-48VDC

8 x 10 / 100Mb RJ-45 ports not Managed switch
2 x Gigabit SC uplink ports
Broadcast storm protection
IEEE802.3x Full Duplex, back pressure flow control for Redundant dual DC power inputs
Robust Cabinet
Relay Output Enables Relay
Supports Up to 8K MAC Addresses

ESW10U-FM
Call +45 56 66 20 20 for price
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

10-ports Ethernet industriswitch til DIN-skinne montering. Denne switch er optimeret til at kunne klare barske miljøer og er certificeret til brug på fx tog. Denne version er unmanaged med eller uden gigabit-porte (RJ-45 eller SC fiberstik). Switchen har et stort temperaturområde og 2 redundante strømforsyningsindgange samt relæudgang, der sluttes, hvis fejl opstår.

Andet
Broadcast storm filter, Store-and-forward, Relæudgang der trækkes ved fejl
Forsyning
2 redundante forsyningsindgange, 12/24/48 VDC. Leveres uden strømforsyning, maks 14,5 W
Hastighed
8 x 10/100Mbit
Indikatorer og kontakter
On/off, link og aktivitet
IP-Tæthed
IP50
Miljø
-40 °C ~ 80 °C ved luftfugtighed på 5 til 95 %
Montering
DIN-skinne
Porte
8 x RJ-45, 2 x SC
Standarder
EN50155, EN50121-4, MIL-STD-810F, UL60950-1
Fibermode
multimode
