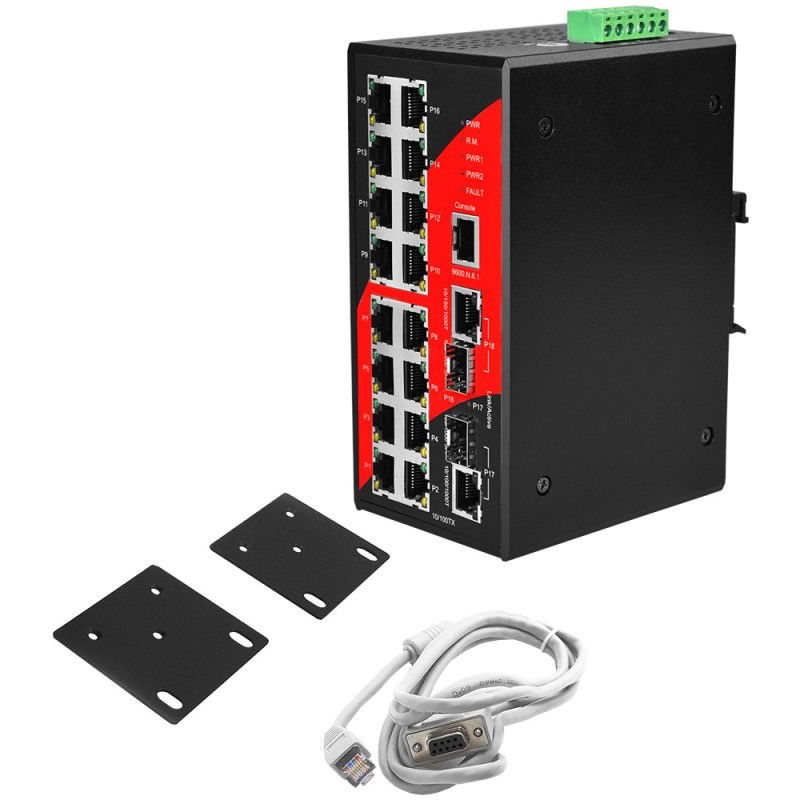

16 Ports Unmanaged switch 16 x RJ45 10/100 + 1Gbit SFP port, PoE, LAN, 240VAC WT:-40~80C

Extended Operating Temperature -40° ~ 80°C
16-Port 10/100TX + 2-Port 10/100/1000T/mini-GBIC Combo
7.2 Gbps Back-Plane (Switching Fabric)
Ethernet Ring Redundancy (Recovery Time <20ms)
IEEE 802.1w Rapid Spanning Tree & IEEE 802.1d Spanning Tree Protocol
IEEE 802.1x RADIUS
IEEE 802.1p Class or Service for Traffic Classification & Prioritization
QoS (Quality of Service)
Supports Port Based VLAN & IEEE 802.1Q Tag VLAN
IGMP with Query Mode for Multi-Media Applications
Port Mirroring for Traffic Monitoring
IP Address Security Management to Prevent Unauthorized Access
UL Class I, Division 2 Certified
IP30 Rugged Aluminum Case Design
DIN-Rail or Panel Mountable

ESW16-POE-2SFP-DW
12,995.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Industrial managed gigabit Ethernet switches have exceptional performance and connect up to 10x faster than Fast Ethernet (10/100TX) with copper/fiber connectors to support high bandwidth applications. The managed gigabit switches in this collection come pre-loaded with standard Layer 2 network management software and support a user-friendly web console interface for easy setup. Our industrial managed gigabit Ethernet switches provide a high level of EFT and ESD protection that allows for secure operation in rugged industrial environments, including factory automation processes, ITS, power/utility, water/wastewater, and more. Feel free to contact our team today with any questions.

Farve
Dimensioner
Ethernet
Maks. hastighed
PoE
Signaler
Strømforsyning
Switch kapacitet

4 other products in the same category:

18 port Managed switch 16 x...

18 port Managed switch 16 x RJ45 100/1000Mbit PoE+. 2 x 100/1000/2500Mbit SFP Fiber slot, -40 - +75°C, 48 - 56VDC

Powerful managed 18 port Industrial switch
Managed switch. 16 x RJ45 +2 x SFP
16 x 10/100/1000Mbit switch with PoE+ (36Watt)
Total PoE power is 320 Watt (dual DC input)
2 x 10/100/1000Mbit RJ45
2 x 100/1000/2500Mbit SFP slot
Supports 2.5GHz SFP module
IGMP snooping
MLD Snooping
DHCP relay / DHCP Server
Cyprus Security
ERPS Call. Fast Ring recovery less than 10ms
1588 Time Synchronization Protocol
Layer 2 switch
Temperature range from -40 to +75°C
Supply voltage: 48 - 56VDC - redundant input
Dimensions: 152 x 107 x 87 mm

Price Call for price
Product code: ESW18SFP2
On the way in
Quick view
Managed Switch, 8 Ports...

Managed Switch, 8 Ports 100/1000Mbit RJ45, PoE+ (36W), 2 x 100Mbit / 1Gbit SFP, 2 x 10Gbit SFP

8 x 10/100 / 1000BASE-T RJ45 Auto-MDI / MDIX Ports
2 x 1000BASE-SX / LX / BX SFP Interface
8 POE Injector Ports with 802.3ay / of
PoE Standard 802.3at
60GB non-blocking
32Mbits Data buffer
IEEE 802.3X pause frame for duplex
IP30 aluminum
Din rail kit and wall mounting
Alarm relay 1A, 24V DC
2 x Digital output (DI)
2 x Digital output (DO) 24v DC, 100mA max
Dimensions: 72 x 107 x 152mm
Weight: 1684g & nbsp;
Supply: 48-56 V DC

Price Call for price
Product code: ESW8G-M-SFP4P
On the way in
Quick view
