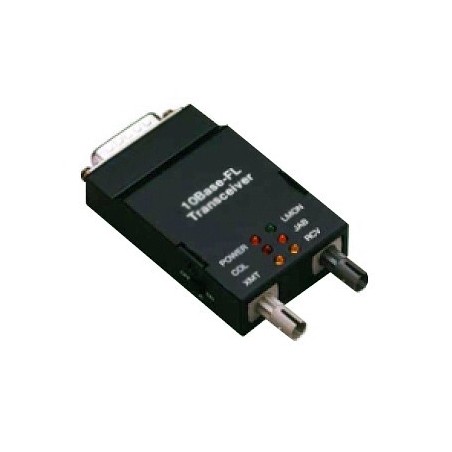

Converts the AUI port to the fiber cable connection.
Only intended for mounting directly on the network card or HUB
part for isolating the PC from the network or against the frame potential; differences between different supply networks
Max. cable lengths: AUI 50 meters, fiber optic 2000 meters
Power supplied from the AUI port that delivers 10 - 15 VDC / 200 mA
Plugs: DB15 male connector for AUI port and ST connector for fiber optic cable

AUI converter for BNC cable, external supply
1 x DB15 Han to 10 Base-5 (AUI)
1 x BNC Jack for 10 Base-2
Max. Cable length: 500m thick coax, 182m thin coax
LED: Power, COL, LINK, TP / RCV
IEEE 802.3 10Base-5/2 Ethernet
0 to 55 ° C
10 to 90% ( Non-condensing)

Multimode version, 850 nm
connector: DB15 Han to Ethernet, ST connector for 10Base-FL
Option Purchase: Aui cable for DB15
Fiber: 62.5 / 125um Multi mode Duplex to 10Base-FL
Max. Length of DB15 Cable of 50m
2 km Max at Multi Mode Cable
0 to 55 degrees (Standard operation)
10 to 90% (non-condensing)
IEEE 10Base-5 / FL Ethernet
sqe on / off

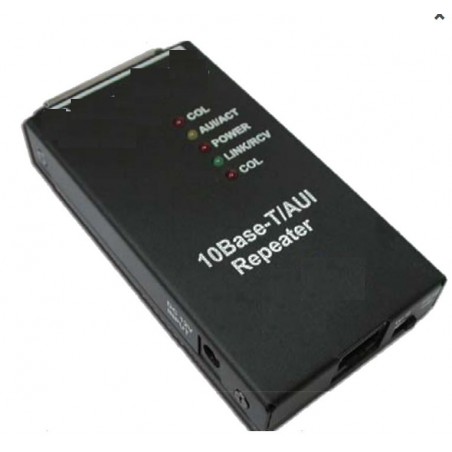

AUI converter to UTP cable, external supply
1 x DB15 AUI female 10 Base-5 (AUI)
1 x RJ45 female 10 Base-T
Max. cable length: max. 500 m per (thick Ethernet), max. 100 m per UTP cable
LED: POWER, COL, LINK, TP / RCV
IEEE 802.3 10Base-T / AUI Ethernet
IEEE 802.2 10Base-T/10Base-2
FCC Class A Subpart B or Part15 Requirements

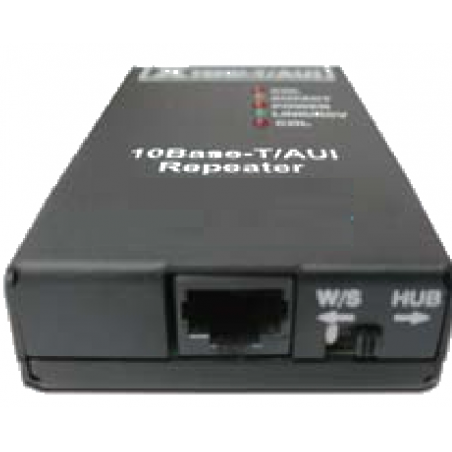

AUI converter to UTP cable
1 x DB15 male to 10 Base-5 (AUI)
1 x RJ45 jack for 10 Base-T
Max cable length: 100m max per UTP cables
LED: POWER, COL, LINK, TP/RCV
IEEE 802.3 10Base-T/AUI Ethernet
FCC Class A Subpart B of Part15 Requirement
No need for external power supply

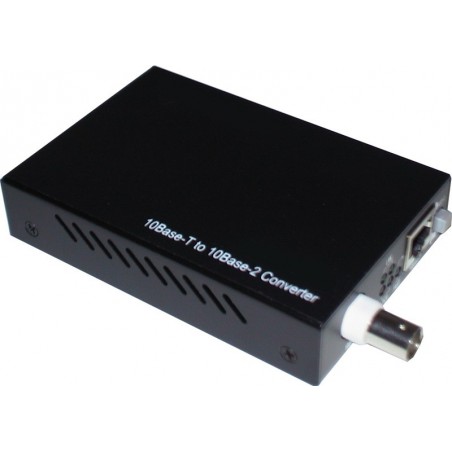

Converter 10Base-T to 10Base-2
1 x RJ45 from Hub / Station select swich
1 x BNC to 10 Base-2
100m max. per UTP cable
185m max. Coax
12V DC, 1 Amp
0 to 55 ° C
10 to 90% (Non-Condensing)
IEEE 802.3 10Base-T / 10Base-2
Network: Star - CSMA / CD
