5 ports Industrial 10/100 / 1000Mbit + 1 x 100 / 1000Mbit SFP slot switch, DIN rail, -40 - + 75 ° C, 12 - 48VDC

5 x 10/100 / 1000Mbps Ethernet ports + 1 x 100 / 1000Mbps SFP Slot
Auto MDI / MDI-X Function
Store and Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature range: -40 ° to 75 ° C

ANR-LNX-0601G-SFP-T
2,797.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

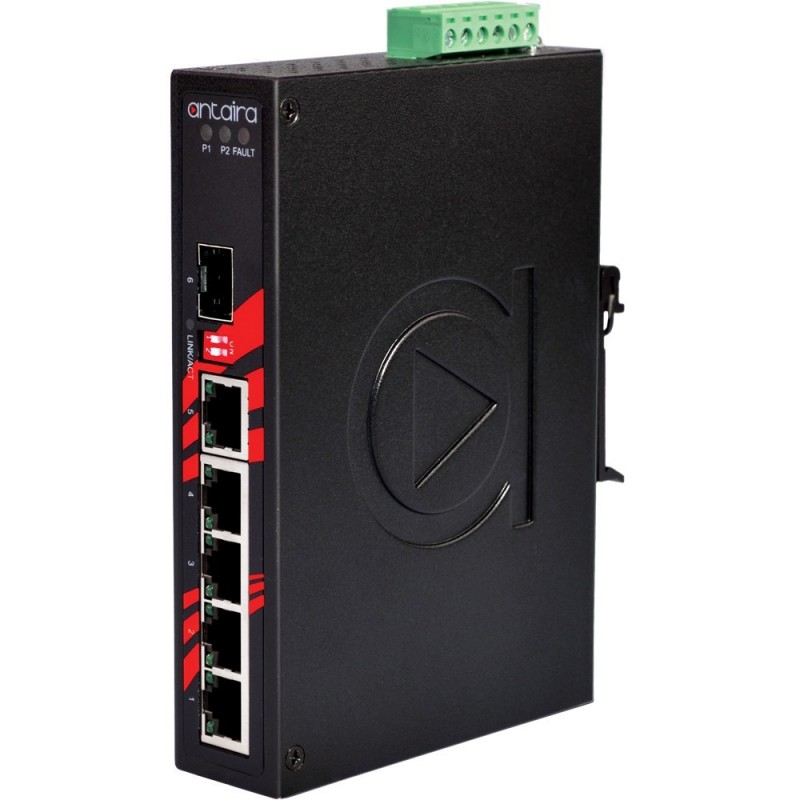

Antaira’s LNX-0601G-SFP-T industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. The unit is designed with five gigabit Ethernet ports and one dual rate (100/1000Mbps) SFP slot, making it ideal for applications that demand high bandwidth and long distance communication. The LNX-0601G-SFP-T series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection.

In addition, the built-in relay warning function alerts maintainers when power failures or port breaks occur. Also, the built-in advanced broadcast storm protection feature will block any data packet that exceeds a defined limit when it arrives to a port, until the rate decreases to a lower threshold.

The LNX-0601G-SFP-T has an extended operating temperature range of -40 to 75°C. It is a perfectly designed product to fulfill any special needs of industrial automation, outdoor applications and harsh weather enviornments.

Driftstemperatur
-40 - +75
Fiber
1 x 100/1000Mbps SFP slot
Forsyning
12 -48VDC, redundant
Kabinet
Metal, IP30, DIN-beslag, option vægbeslag
Maks. effekt
6,9 Watt
Netværk
5 x RJ45 10/100/1000Mbps
