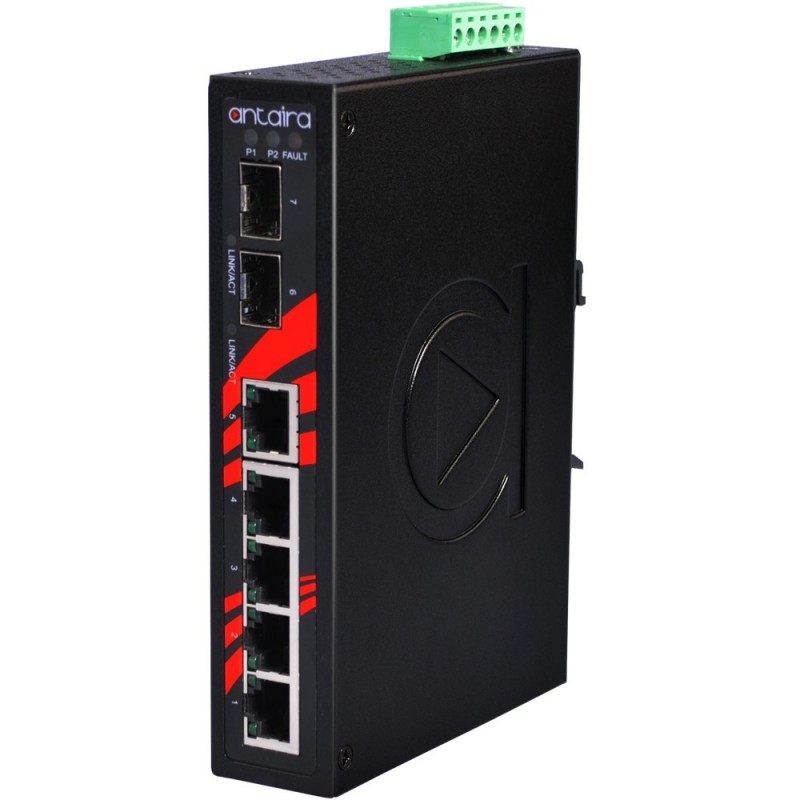

5 ports Industrial 10 / 100Mbit + 2 x 100 / 1000Mbit SFP slot switch, DIN rail, 0 - + 70 ° C, 12 - 48VDC

5 x 10 / 100Mbps Ethernet ports + 2 & nbsp; x 100 / 1000Mbps SFP Slot
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric )
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature Range: 0 - 70 ° C

ANR-LNX-0702C-SFP
2,441.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Antaira Technologies’ LNX-0702C-SFP series industrial gigabit unmanaged Ethernet switch features five 10/100Tx ports and two dual rate 100/1000Fx SFP slots. This product series supports a wide power input from 12 to 48VDC, and provides high EFT and ESD protection to protect against unregulated voltage. It also provides wide operating temperature models for either standard: – 10 to 70C. The LNP-0702C-SFP series is an ideal solution for harsh environments and industrial applications.

Driftstemperatur
0 - +70
Fiber
2 x 100/1000Mbps SFP slot
Kabinet
Metal, IP30, DIN-beslag, option vægbeslag
Maks. effekt
6 Watt
Netværk
5 x RJ45 10/100Mbps
