5 ports Industrial 10/100 / 1000Mbit + 2 x 100 / 1000Mbit SFP slot switch, DIN rail, -10 - + 70 ° C, 12 - 48VDC

5 x 10/100 / 1000Mbps Ethernet ports + 2 x 100 / 1000Mbps SFP Slot
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane ( Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature Range: -10 - 70 ° C

ANR-LNX-0702G-SFP
2,672.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

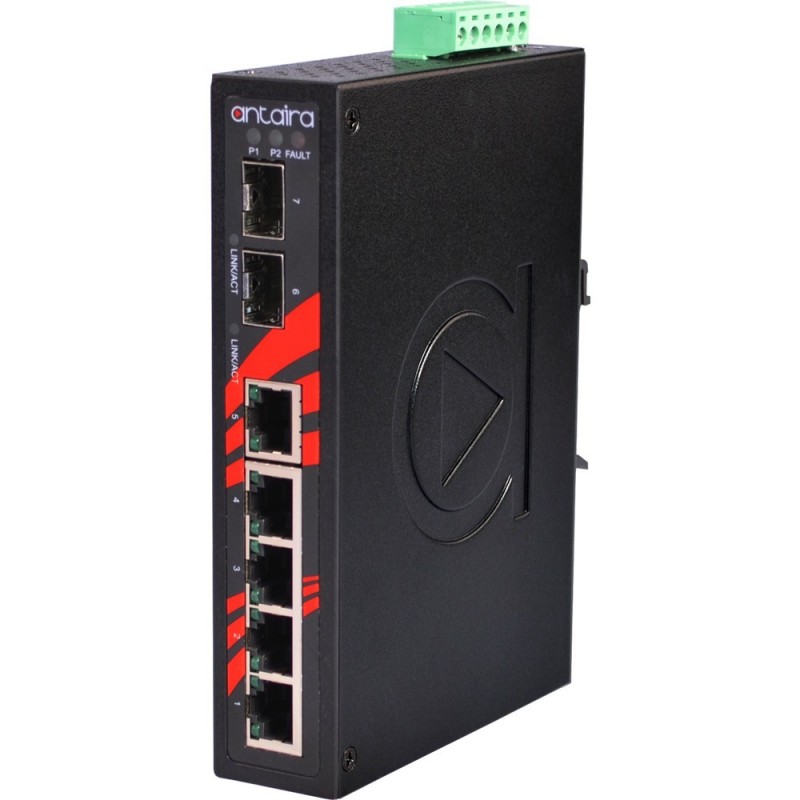

Antaira’s LNX-0702G-SFP industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. The unit is designed with five gigabit Ethernet ports and two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.

The LNX-0702G-SFP series offers an operating temperature range of -10 to 70°C and is a perfectly designed product to fulfill special needs for industrial automation, outdoor applications, and harsh weather environments.

Driftstemperatur
-10 - +70
Fiber
2 x 100/1000Mbps SFP slot
Kabinet
Metal, IP30, DIN-beslag, option vægbeslag
Maks. effekt
9,1 Watt
Netværk
5 x RJ45 10/100/1000Mbps
