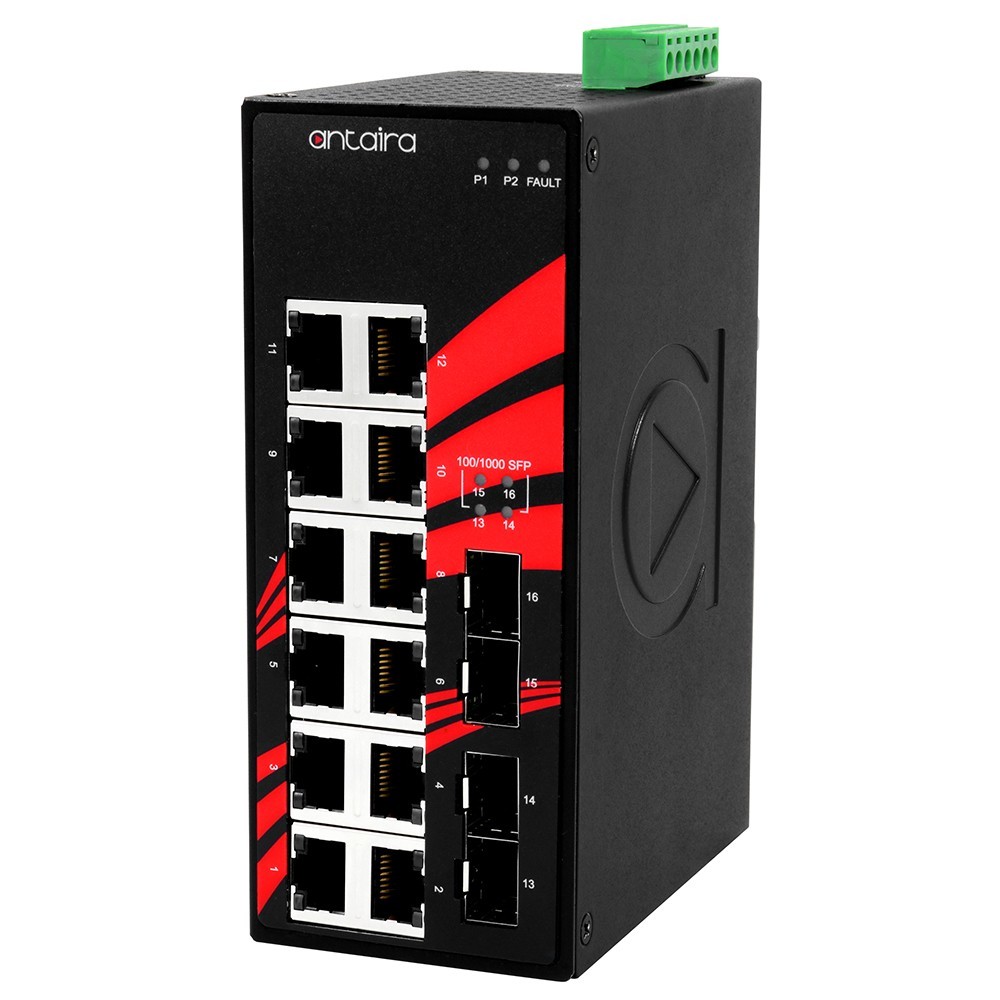

12 ports Industriel 10/100/1000Mbit + 4 x 100/1000Mbit SFP slot switch, DIN-beslag, -10 - +70°C, 12 - 48VDC

16 x 10/100Mbps RJ45
2 x 10/100/1000Mbit RJ45 (combi)
2 x 100/1000Mbps SFP slot (combi)
7.2 Gbps Back-Plane (Switching Fabric)
Ethernet Ring Redundancy (Recovery Time <20ms)
IEEE 802.1w Rapid Spanning Tree & IEEE 802.1d Spanning Tree Protocol
IEEE 802.1x RADIUS
IEEE 802.1p Class or Service for Traffic Classification & Prioritization
QoS (Quality of Service)
Port Based VLAN & IEEE 802.1Q Tag VLAN
IGMP med Query Mode for Multi-Media applikationer
Port Mirroring for Traffic Monitoring
IP Address Security Management
IP30 robust aluminum kabinet
DIN-Rail eller vægmontering

IEEE 802.3 / u / ab 10/100 / 1000BaseT
IEEE 802.3z 1000BaseX
Jumbo Frame (9K bytes)
Store-and-Forward Switching Mechanism
Auto-Crossover for MDI / MDIX in TP Port
Auto Negotiation in TP Port
Flow Control
Link Alarm
Auto & amp; Force Mode Configuration
Dimensions: 71 x 94 x 26 mm for DC5 V, 1.5 A

1000Mbit media converter with PoE + for Equipment
PoE is PSE (Power Sourcing Equipment)
PoE + up to 30 watts per port
1 x RJ45 10/100/1000Mbit with PoE + (PSE)
1 x SFP slot for 1000Mbit Single Mode or Multimode
802.3, 802.3u, 802.3ab, 802.3z, 802.3at, 802.3af
IEEE 802.3x Full-Duplex Flow Control
Auto MDI / MDI-X FUNCTION
Dimensions: 94 x 70 x 26mm
Operating temperature: 0 ° C to 50 ° C
Power supply: 52~56VDC / 0.6A

24 x 10/100 / 1000Tx RJ45 (30W / port) IEEE 802.3at PoE + 2 x Gigabit Combo (2 x RJ45, 2 x FTP)
Auto MDI / MDI-X Function
Store -and-Forward Switching Architecture
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Power Supply: 48 ~ 55VDC
Built-in Relay Output for Power Failure
1U 19 "Rackmount design
Operating temperature STD: 40 ° to 75 ° C

1000Mbit Multimode Media Converter for RJ45
1 x RJ45 10/100 / 1000BaseT
1 x 1000BaseSX / LX with SC connector Multimode
Back-Pressure in Half-Duplex
Auto MDI / MDI -X function in Store-and-forward mechanism
Up to 220m / 550m
Dimensions: 97 x 70 x 26 mm
Operating temperature: 0 - + 50 ° C
Power supply: 5VDC / 2A included

8 port 10/100 / 1000Mbps switch and 2 port 10Gbps SFP + fiber slots
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
16K MAC Address Table
9,216 bytes Jumbo Frame Support
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 12 ~ 48VDC
1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Temperature range: -40 ° to 60 ° C

8 & nbsp; ports 10/100 / 1000Mbps Fast Ethernet switch + 2 100 / 1000Mbps SFP slot
Auto MDI / MDI-X Function
Store and Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum housing
DIN-Rail and Wall Mount
Temperature range: -40 ° to 75 ° C

8 x 10/100 / 1000Base-T (X) RJ45
PoE (P.S.E.) Ports
IEEE 802.3at
Up to 30 Watts Per Port
9.6Kbytes Jumbo Frame
Supply Voltage, Dual Wide Range 12 ~ 36VDC
Auto-Negotiation & amp; Auto-MDI / MDI-X
Store-and-Forward Transmission, Flow Control, IP-30 Housing Design
DIN Rail and Wall Mounting for UL Class I, Division 2 Certified
